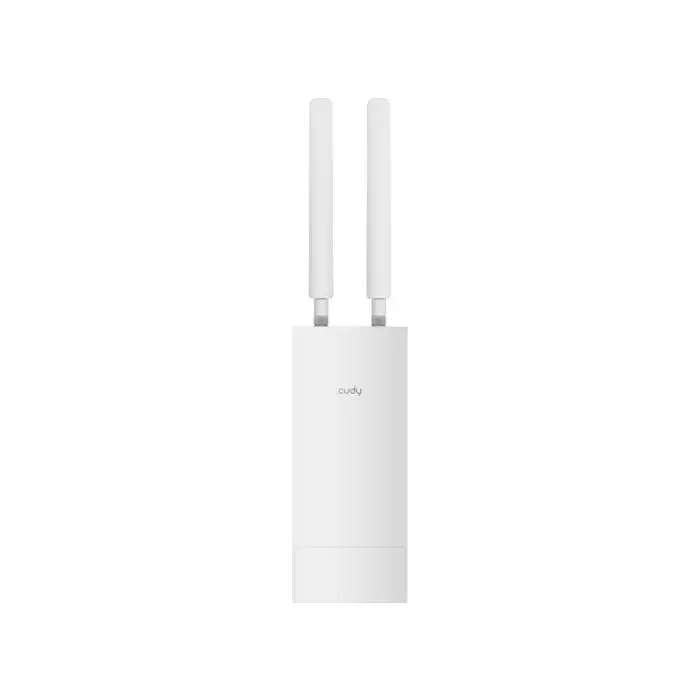

| Model | LT500-Outdoor |
| LTE Module Model EU Version | EC200A LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM/EDGE: B3/B8 |
| LTE Module Model US Version | EC25-AFXD LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71
WCDMA: B2/B4/B5 |
| Flash | 128 Mbit (16 MB) SPI Flash |
| DDR | 1 Gbit (128 MB) DDR |
| Interface | 1× 10/100 Mbps WAN/LAN RJ45 Port (24V/0.5A passive PoE, 4/5+,7/8-) |
| 1× Reset Button |
| 1× Nano SIM Slot |
| LED | System/Internet/Ethernet/2.4G WiFi/5GHz WiFi/Signal Strength |
| Antenna | 2× Internal Wi-Fi Antennas |
| 2× External Detachable 4G Antennas |
| Wireless Features |
| Wireless Standards | IEEE 802.11 ac/a/n/b/g |
| Frequency | 2.4 GHz, 5 GHz |

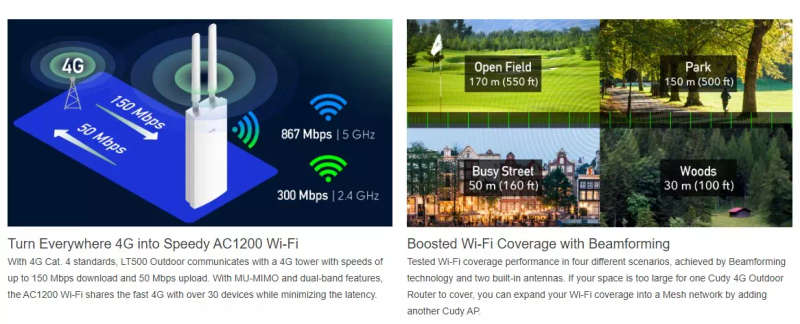

| Signal Rate | 867 Mbps (5 GHz), 300 Mbps (2.4 GHz)
Compatible with 802.11ac/a/b/g/n Wi-Fi standards |
| Transmit Power | CE: <20dBm |
| FCC:<30dBm |
| Wireless Modes | Enable/Disable Wireless Radio, WMM |
| Wireless Security | WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK |
| Mesh Compatibility | Works with other Cudy Mesh products (as the main Mesh node) |
| Software Features |
| WAN Type | 4G/Dynamic IP/Static IP/PPPoE |
| DHCP | Server, DHCP Client List, Address Reservation |
| Dynamic DNS | Compatible with 15 more DDNS providers |
| NAT | Port Forwarding, Port Triggering, UPnP, DMZ |
| VPN Sever & Client | PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier |
| CWMP Protocol | TR069 / TR098 / TR111 / TR181 |
| ACS Server Compatibility | GenieACS, OpenACS |
| Management | Access Control, Local Management, Remote Management, Wake on LAN |
| TTL | Extend/Spoof/Custom |
| DNS | Cloudare/Google/Quad9/Custom |
| Internet Protocols | IPv4 / IPv6 |
| IPv6 | Relay |
| Dynamic(SLAAC/DHCPv6) |
| Static (Fixed IP) |
| Passthrough |
| MAP-E (Dual-stack) |
| DS-Lite (Dual-stack) |
| SMS | Send/Receive |
| 4G Band Lock | Support |
| Others |
| Ingrees Protection Rating | IP65 (Router only when installed vertically, the PoE Adapter is not waterpoof) |
| Working Temperatures | -20 ~ 60 °C (-4°F ~ 140°F) |
| Dimensions | Router Body: 240×100×53.7 mm (9.5×3.9×2.1 inches)
Antennas: 197.5×21.6×15.5 mm (7.8×0.9×0.6 inches)Height of Router with Antennas installed: 438 mm (17.2 inches) |
| Package Content | 2× detachable 4G antennas |
| 24V/0.5A passive PoE adapter |
| Pole Installation Accessory |
| Ethernet Cable |
| Quick Installation Guide |
| System Requirements | Windows, MAC OS, NetWare, UNIX, or Linux Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other web browser If you are using 4G as your internet access, you will need a nano SIM card with an active data subscription, If you are using WAN as your internet access, you will need a fiber/cable/DSL modem or any other wired internet source. |
