Dual Cable | Duplex Single Mode UPC LC-LC Fiber Cable | Various Lengths Fiber Patch Leads
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Free collection
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Product information
Condition:
New
Location:
South Africa
Product code:
347013
Bob Shop ID:
592123902

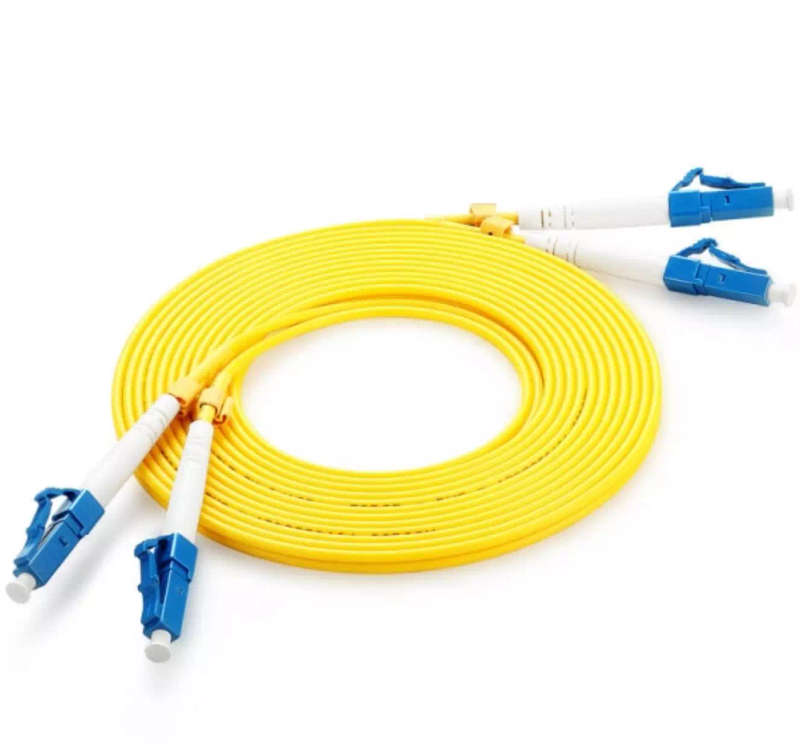

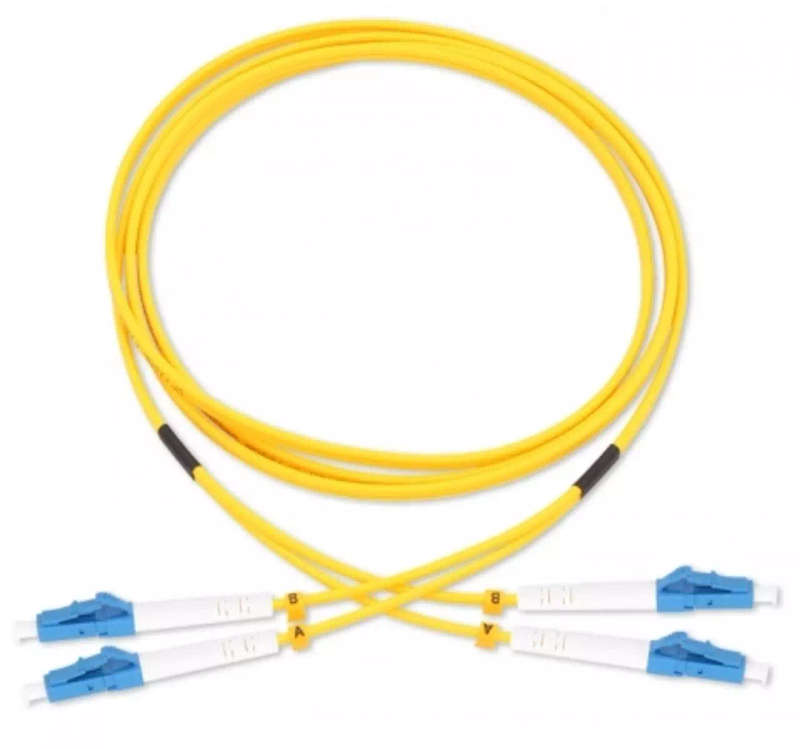

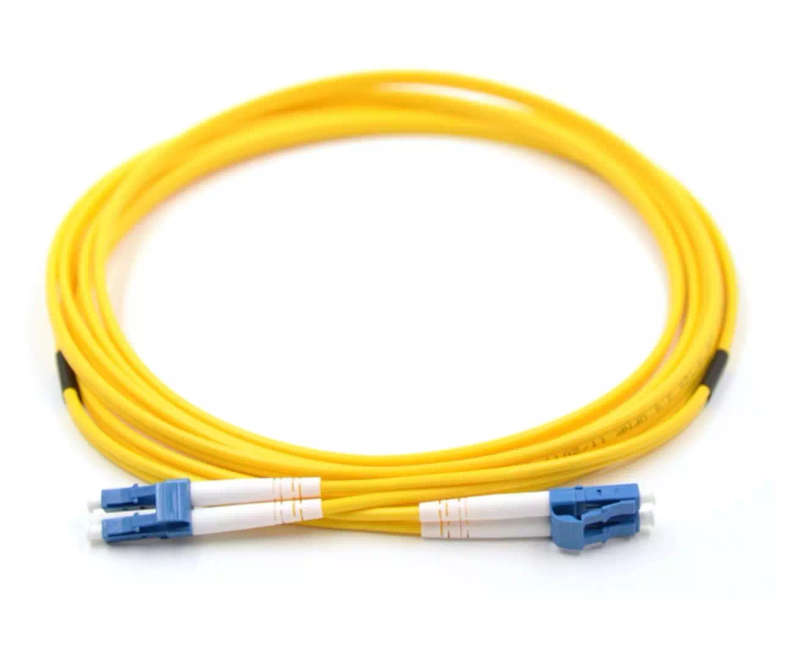

Dual Cable | Duplex Single Mode UPC LC-LC Fiber Cable | Various Lengths Fiber Patch Leads
Single mode fiber optic patch cables come with a 9 micron diameter glass core. With the cladding layer, they are 125 micron, and with the buffer layer they are 250 micron. To prevent excessive loss (attenuation), you should ensure that you only connect single mode cables to other single mode fibers already in your system.
Specifications:
- Indoor Cabling Bow-Type Drop Cable
- Diameter : 1.7mm
- Duplex (Dual Fiber Cables and DUAL LC Connectors on each side of cable)
- LC/UPC LC/UPC
- G.657A2, 2.0x1.7mm
Tensile Strength
Always take care when installing fiber cables to ensure not to break the fiber inside the cable by over-bending or twisting cables.
G.657A2 Bend Ratio vs Other Specifications
| Fibre Type | Bending Radii | Attenuation Increase (db) |
| G652D | 100 turns on 25mm mandrel at 1310/1550nm | 0.03 |
| G652D | 100 turns on 30mm mandrel at 1625nm | 0.1 |
| G657A2 | 10 turns on 15mm mandrel at 1550nm | 0.05 |
| G657A2 | 10 turns on 15mm mandrel at 1625nm | 0.1 |
| G657A2 | 1 turn on 10mm mandrel at 1550nm | 0.1 |
| G657A2 | 1 turn on 10mm mandrel at 1625nm | 0.2 |
| G657A2 | 1 turn on 7.5mm mandrel at 1550nm | 0.5 |
| G657A2 | 1 turn on 7.5mm mandrel at 1625nm | 1.0 |
These Fiber Cables Are Commonly used with the Fiber SFP's below
/20km-single-mode-dual-lc-1-25gbit-1310nm-gigabit-sfp-transceiver-module-cisco-huawei-dell-compatible/
/10gbps-fiber-sfp-module-single-mode-dual-lc-transceiver-module-10km-cisco-huawei-or-generic-switch-compatible/
Single Mode Fiber Cable Usage and Instructional Video
?v=7D5DXND3-TI
