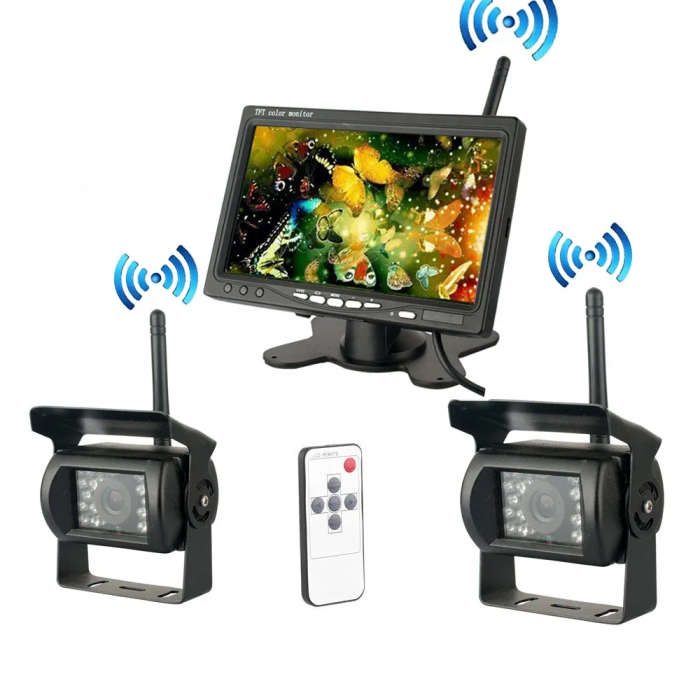

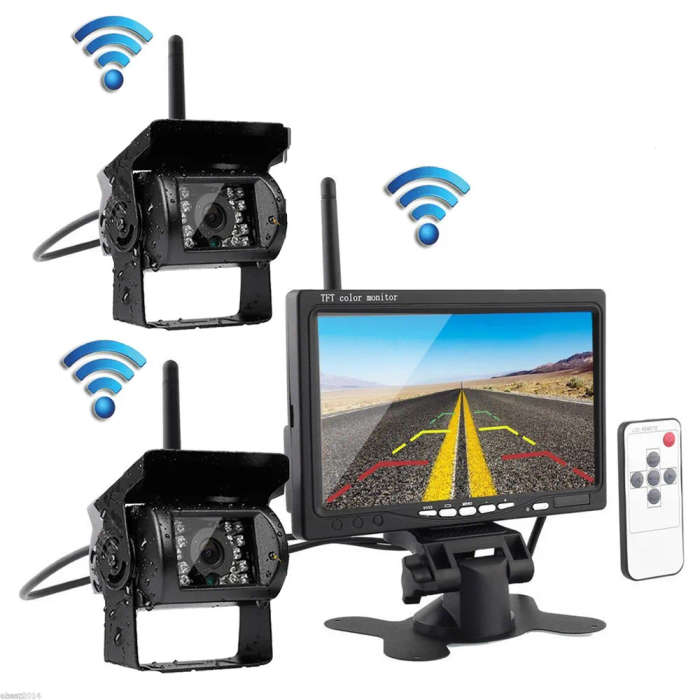

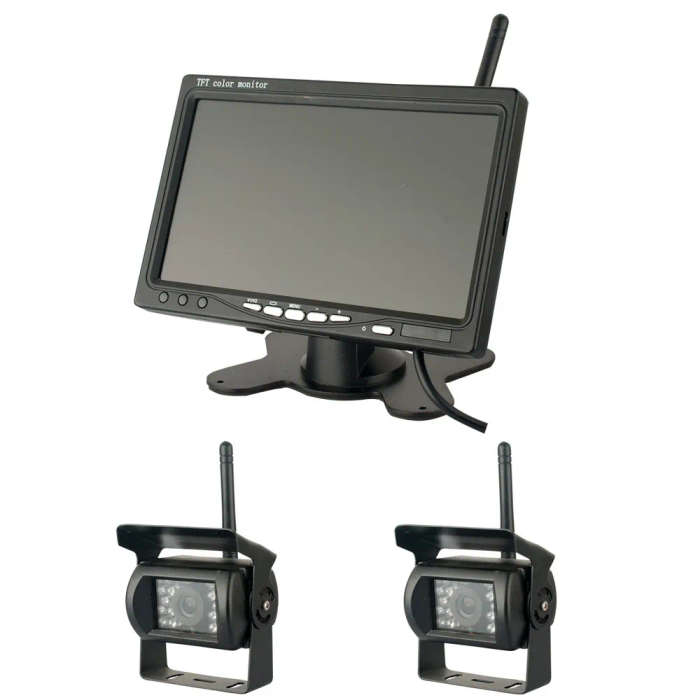

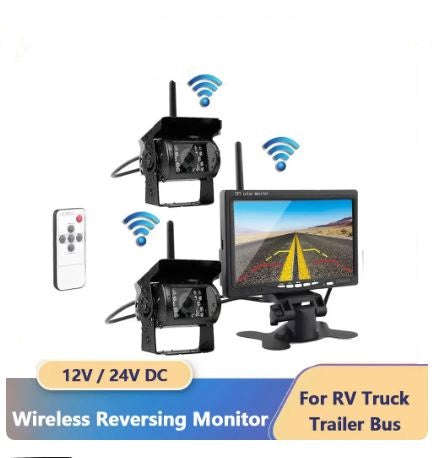

Dual Camera Wireless Rear View Camera and 7-Inch Monitor Kit

Dual Camera Wireless Rear View Infrared Camera and 7 Inch Monitor System for Cars, Busses, Trucks, Heavy Duty Equipment (10006916)

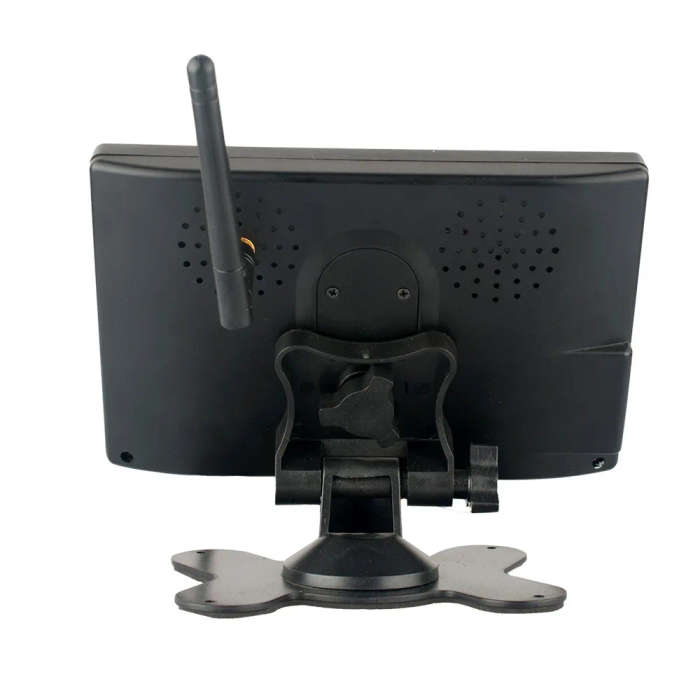

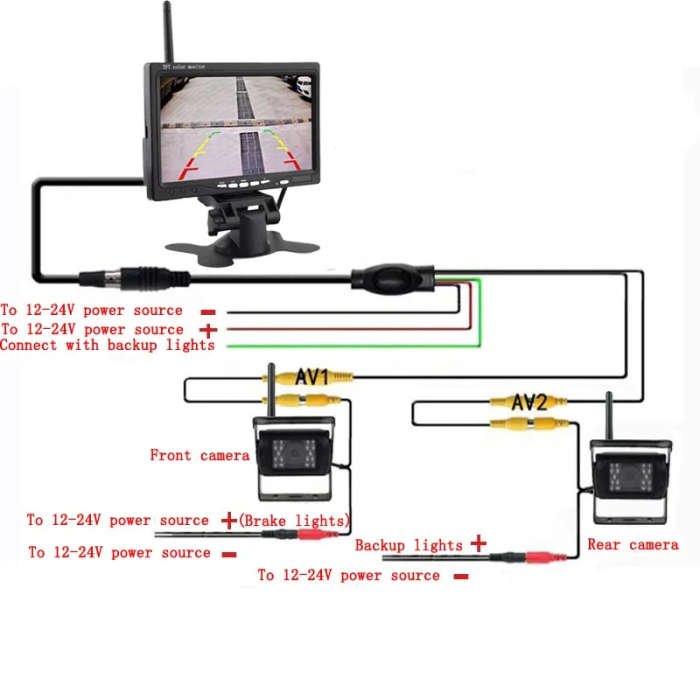

1. 7-Inch TFT LCD widescreen wireless monitor--With high resolution image, full color display and low power consumption. 2. Two Wireless Ir Night Vision Waterproof Rearview Back Up Reverse Cameras --Auto Water-resistant Camera Lens, with 18 individual Infrared (IR) LED.  Effective range up to 15m 3. Easy to install--Wireless parking assistance; The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car. 4. IP 67 waterproof grade can cope with marine environment. Hard Metal Cased Camera; Waterproof and Mud proof; It can last for longer without heating up, so you can show the rearview all time.

Specification: 2.4GHz analog wireless 7 inch color monitor Operating Frequency: 2400-2483.5 Mhz Standard: 2370Mhz Transmission distance: 50 meters Compression format: MPEG 4 video Transmit frequency:18 dBm Transmission speed:12 Mbps FHSS: Frequency Hopping Spread Spectrum Hopping rate:1200 / S Screen size: 7-inch16: 9 wide screen Resolution: 800R.G.B x 480 dots System: PAL / NTSC Operating voltage: 12V / 24V DC Power: 8.64W Operating temperature: -10 Degree to + 65 Degree

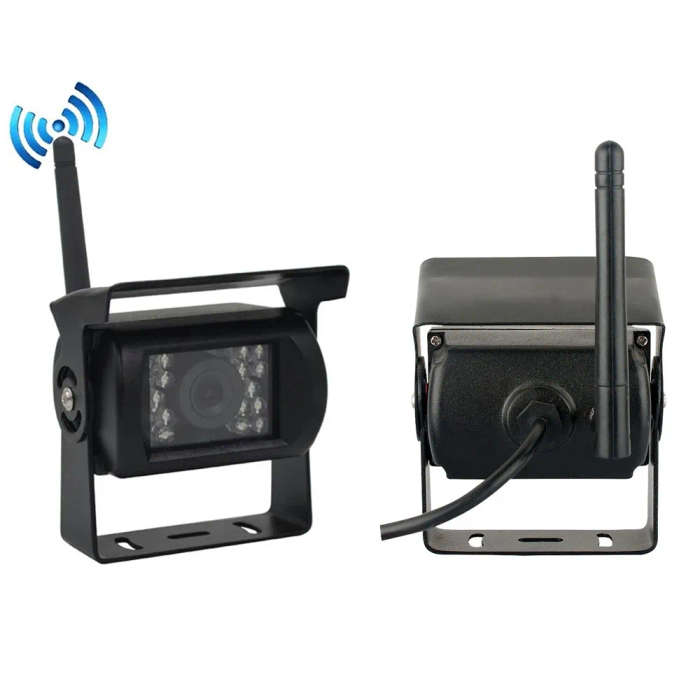

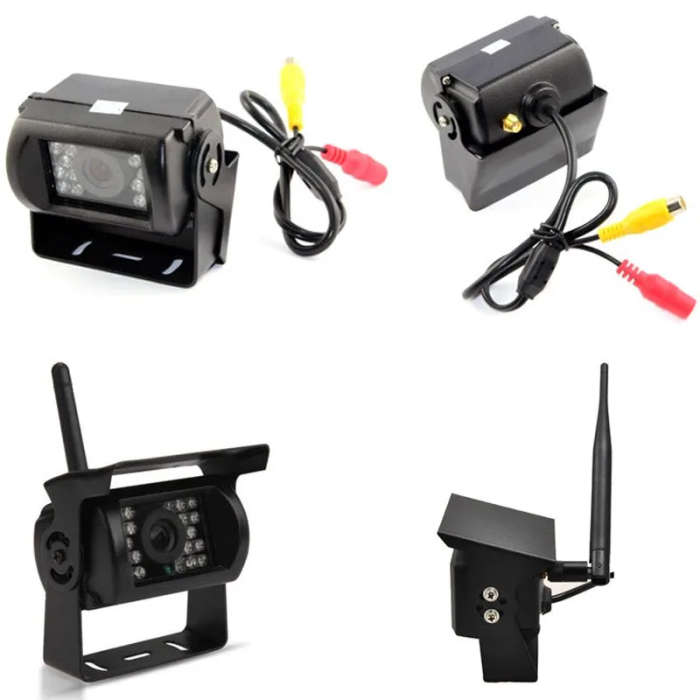

2.4GHz digital wireless camera (With Guide Lines) Standard NTSC: 510 * 492 pixels, PAL: 510 * 582 pixels Resolution: 420 TVL Lens: 2.5mm Minimum illumination: 0Lux (LED ON) Infrared light: 18pcs Night vision distance:15 meters Waterproof: IP67 Angle:120 ° Operating voltage: 12 / 24V DC Operating temperature: -20 ° C ~ + 70 ° C Shell Material: Aluminum Mount material: Metal

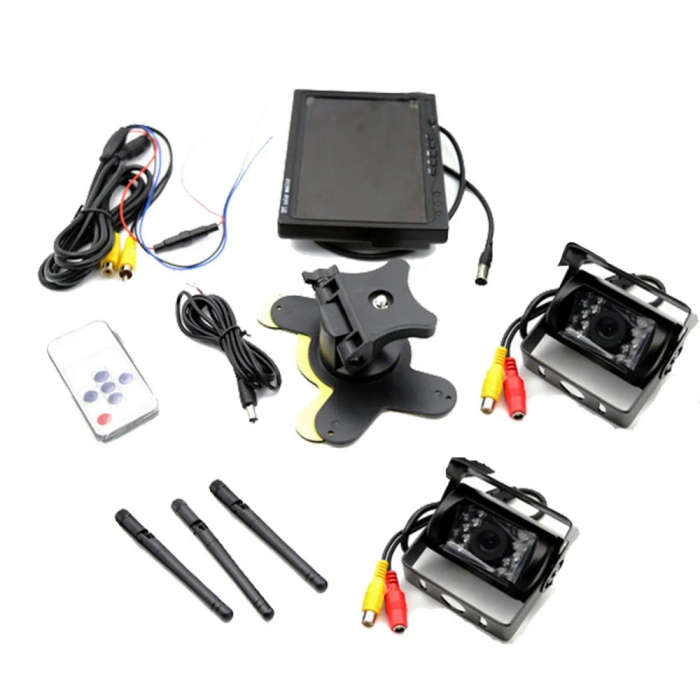

Package Contents: 2 x Cameras 1 x 7" Color Monitor 3 x Antennas 2 x Power Cable 1 x Remote Controller 1 x Mount Bracket 1 x User Manual

Correct understanding of wireless cameras: 1. There is no wireless network connection between the screen and the camera. 2. You cannot see two cameras on the monitor at the same time, you can only see the image of one or the other camera. 3. First press the AV1 / AV2 channel button on the monitor, and then press the second flip button of the monitor to adjust the frequency band. When the frequency band of the camera is the same as that of the monitor, the image will be displayed automatically.
