Dual Channel 3W Digital Power PAM 8403 Class D Audio Amplifier Board with Volume Control
Sold

Dual Channel 3W Digital Power PAM 8403 Class D Audio Amplifier Board with Volume Control

7 were available / new
R36.00
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
PAM8403-MOD
Bob Shop ID
206342643

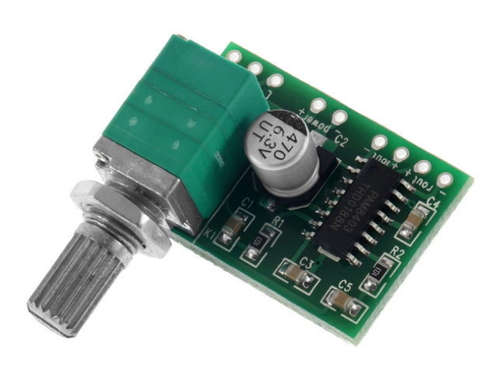

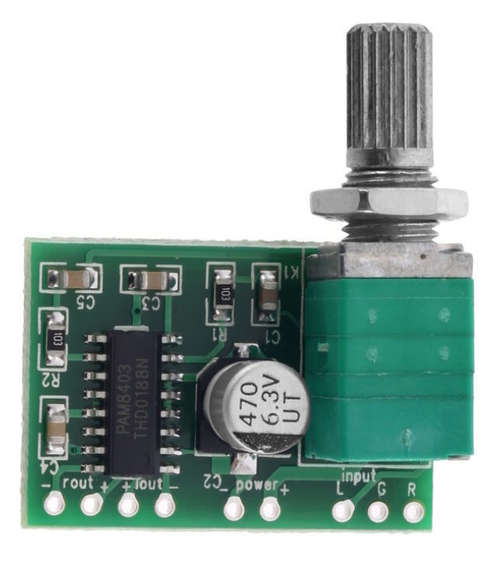

DUAL CHANNEL 3W PAM8403 CLASS D AUDIO AMPLIFIER BOARD WITH VOLUME CONTROL



Product information
This is a Dual Channel 3W Class D amplifier module using the popular PAM8403. It is perfect for connecting an MP3 player or notebook to external speakers.

Specifications
Power supply: 2.5 (min) to 5.5 V (max)
Power into 4 ohm: 2 x 3W @ 5V
Power into 8 ohm: 2 x 1.7W @ 5V
SNR: >90dB
Efficiency: >90%
Module size: (L) 29mm x (W) 20mm x (H) 16mm

Connection Information

  1. The module can be powered from a single 3.6V lithium battery or 5V USB power supply.
  2. If using a transformer power supply, please add a 5V voltage regulator as any voltage greater than 5.5V will permanently damage the IC.
  3. Please observe the correct polarity for connecting power to the module as reversing the polarity will also damage the IC . Please use shielded wire for connecting inputs to the IC to prevent interference.
  4. Do not try to connect the outputs in BTL mode as they are completely independent and doing so will damage the IC.

Package Includes
1 x Dual Channel 3W Digital Power PAM8403 Class D Audio Amplifier Board with Volume Control
