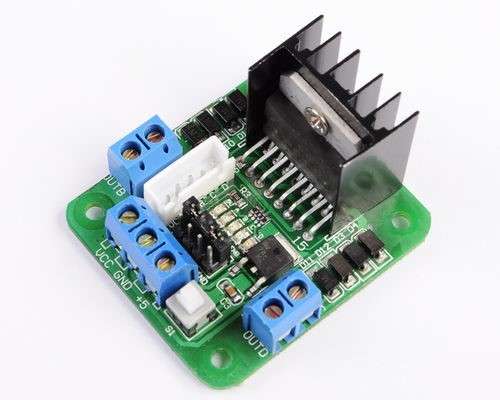

Dual H Bridge DC Stepper Motor Drive Controller Board Module L298N

DUAL H BRIDGE DC STEPPER MOTOR DRIVE CONTROLLER

BOARD MODULE L298N

Product information

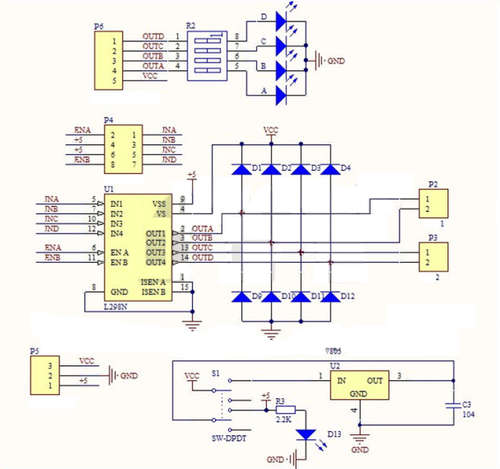

The L298N dual H-bridge module has an on-board 5V regulator that is powered from a 7 to 35V DC source through pin VCC. Pin +5V provide 5v from the on-board regulator for external use and should not be connected to any power source. Pins INA, INB, INC and IND are connected to a microcontroller to provide logic control. When the jumper is in place for ENA, this enables INA and INB logic control of OUTA and OUTB terminal pins. Similarly when the jumper is in place for ENB, this enables INC and IND logic control of OUTC and OUTD terminal pins.

There is an on-board connector for direct interfacing to a 28BYJ-48 stepper motor.(the motor is listed HERE)

Specifications
Drive voltage: 5-35V (max)
Drive current per bridge: 2A (max)
Logic voltage: High level (4.5 to 5.5V), Low level (0V)
Logic current: 0-36mA (max)
Storage temperature: -20 to +135C
Max power: 25W
Board Size: 55 x 60 x 30mm

Package includes
1 x L298 Dual H Bridge module with heatsink
