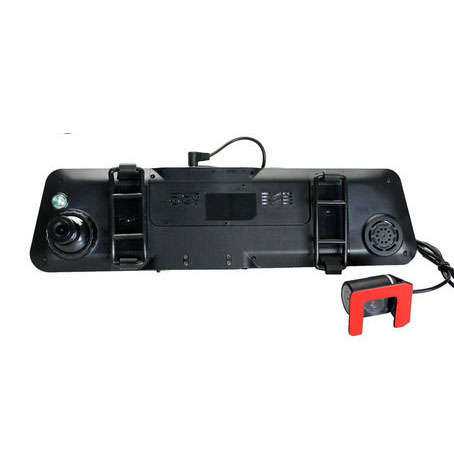

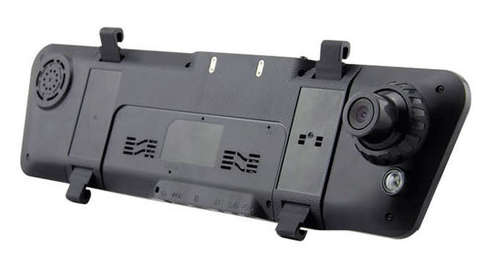

Dual Lens 4.3inch Novatek Solution Rear Mirror HD Car DVR Car Recorder
Please read the shipping before bidding




15.8mm camera lens
HD rearview function with 720P video resolution
Dual lens ,support video recording at the same time Multiple languages real people voice broadcast
Compression format H.264 ,1080P ,30 FPS
4.3" TFT High resolution LCD creen
3 axle G-Sensor
Support AV in
One emergency video recording button
Circulating video, seamless coverage of the recording
Specification
Image sensor 2Megapixel CMOS sensor
View 120 degree wide angle
LCD screen 4.3" HD screen
Video code 1080P/720P/VGA
Compression format H.264
Video format MOV
Picture resolution 1600*1200 Photo format JPEG
Blinking frequency 50HZ, 60HZ
AV IN Support
USB version USB 2.0
Support TF card capacity Class 6
Temperature -10-70 degree
Operation
1. Insert TF card into card slot (TF Card Not Included )
2. Press power key for a while,(suggest formatting TF card for the first time )
3. Mode selection: System default for record video format, press mode key switch to photograph, playback
4. Video mode, press OK key start recording ,re-press OK key to stop .If use car charging line ,it will recording automatically once the car turn on .
5. Camera mode: Press OK key to take photos
6. Playback: can check the pictures and videos, press UP and DOWN key to select the file, hold UP and DOWN for two secs for fast forward and back,
7. Audio switch setting: Press UP button for a short time to turn off audio recod.
8. Emergency video lock: during video recording, press mode button into emergency video function. 9. Motion detect setting: stand by video, long press OK button into motion detect mode
10. White lights switch function: press power key to setting white lights.
11. Switch screen display: when select dual lens video, press DOWM key to switch the screen between dual lenses.
