Features :
Dimensions: 48mm×48mm×110mm(APP)
Measuring accuracy: ±0.5%FS
Cold-end compensation tolerance: ±2￢ﾄﾃ (can be modified by software in 0~50￢ﾄﾃ)
Resolution: 14 bit
Sampling cycle: 0.5 Sec
Process value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by: LED
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Relay output: contact capacity 250V AC 3A (resistive load)
Voltage pulse output: 0/12V (suitable for solid state relay SSR)
Alarm function output: 2 way
Contact capacity of output: 250V AC 3A (resistive load)
Setting value (SV): identical to measuring range (PV)
Proportional band (P): 0~full range (ON/OFF control when set to 0)
Detective temperature range: 0 to 400￢ﾄﾃ
Insulation resistance: >50M ohm(500V DC)
Insulation resistance: 1500V AC/min
Power Consumption: 10 VA
Service environment: 0~50￢ﾄﾃ,
environment with no corrosive gas 30~85% RH
Please assure that you are familiar with this product before you buy, because the manual we offer is Chinese.
Package Includes:
1 x PID Digital Temperature Control Controller

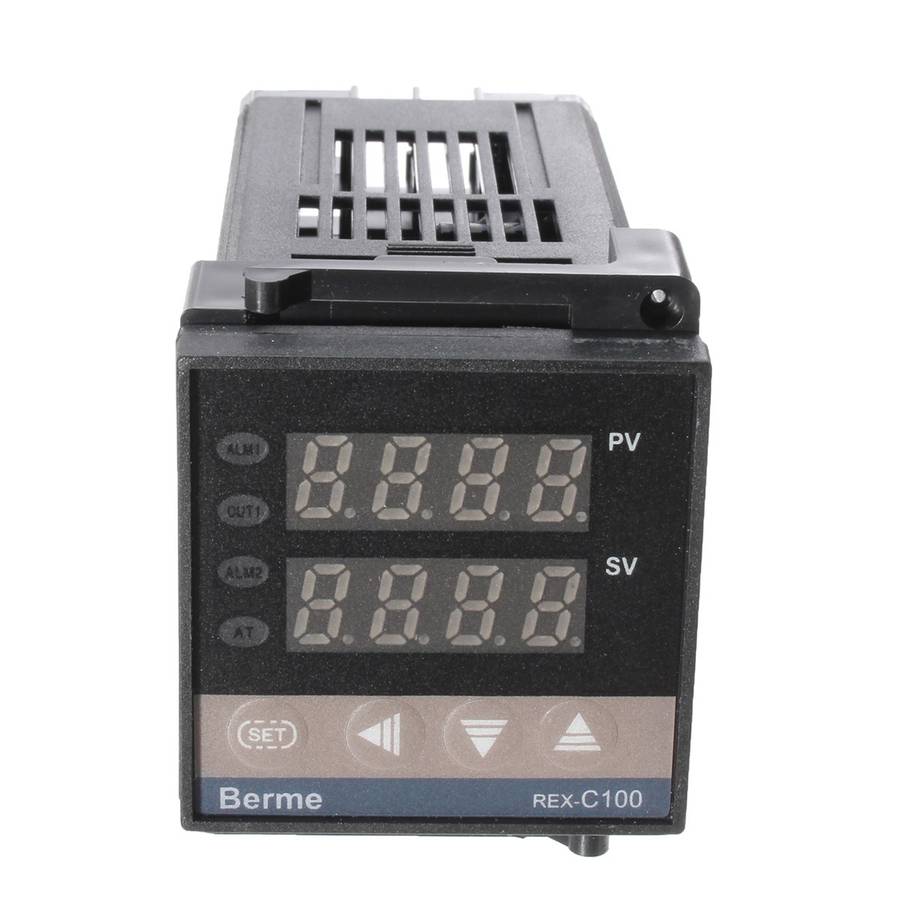

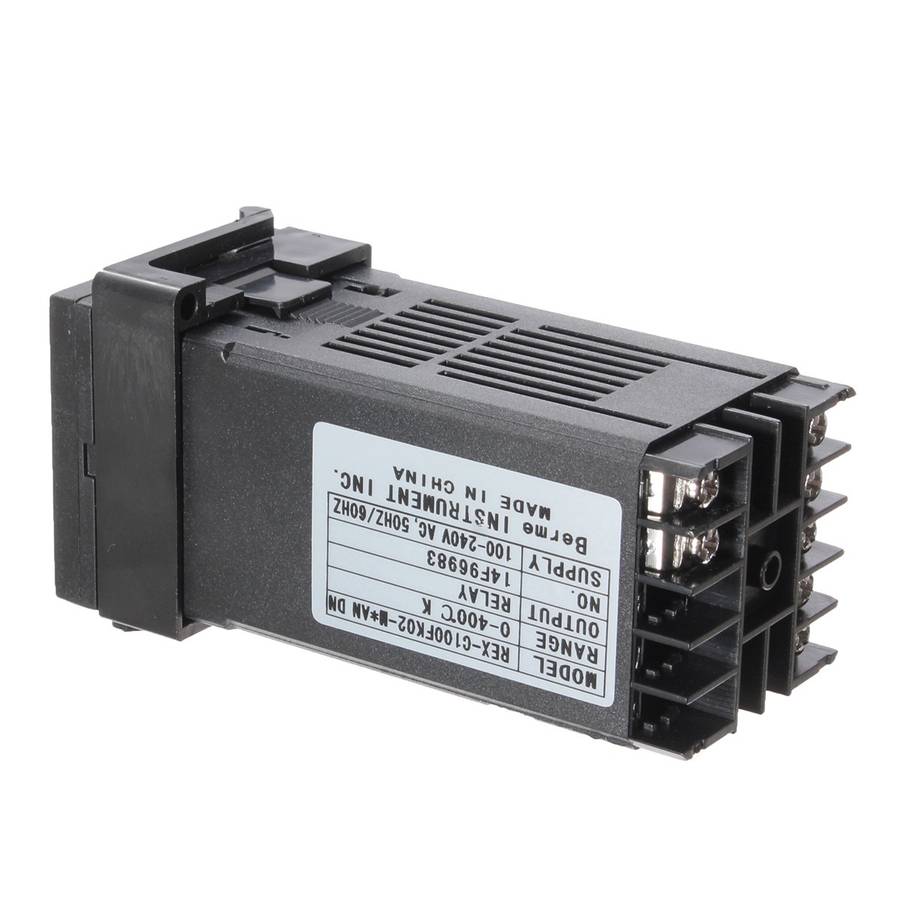

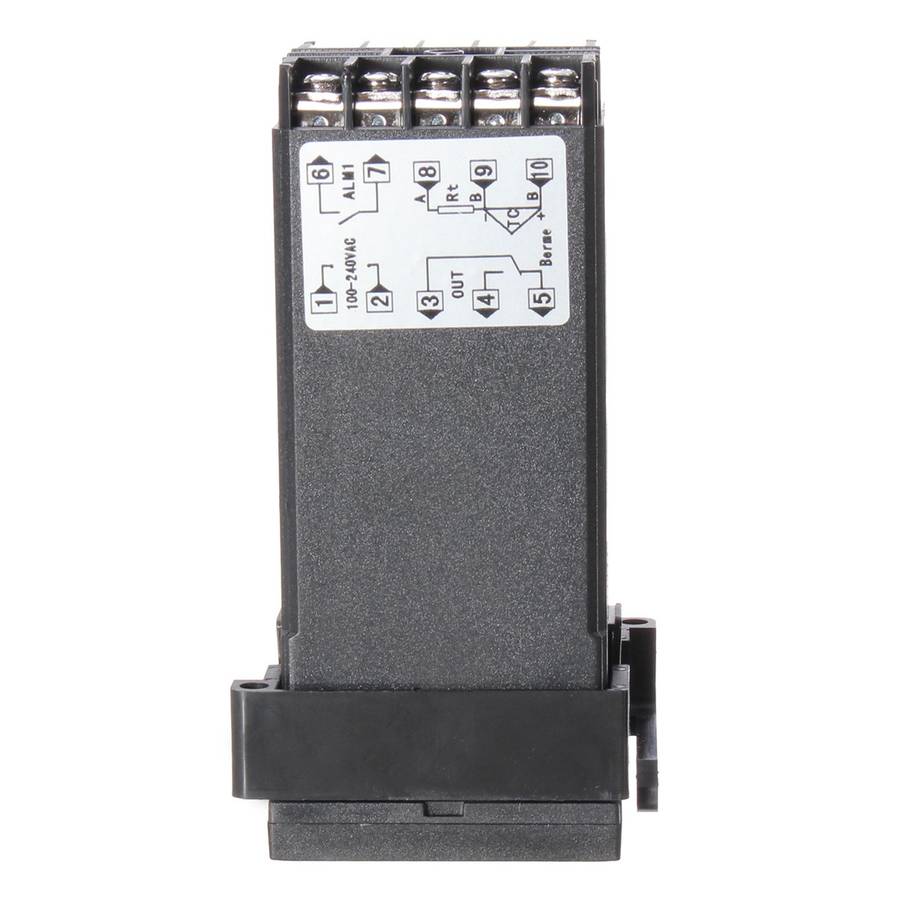

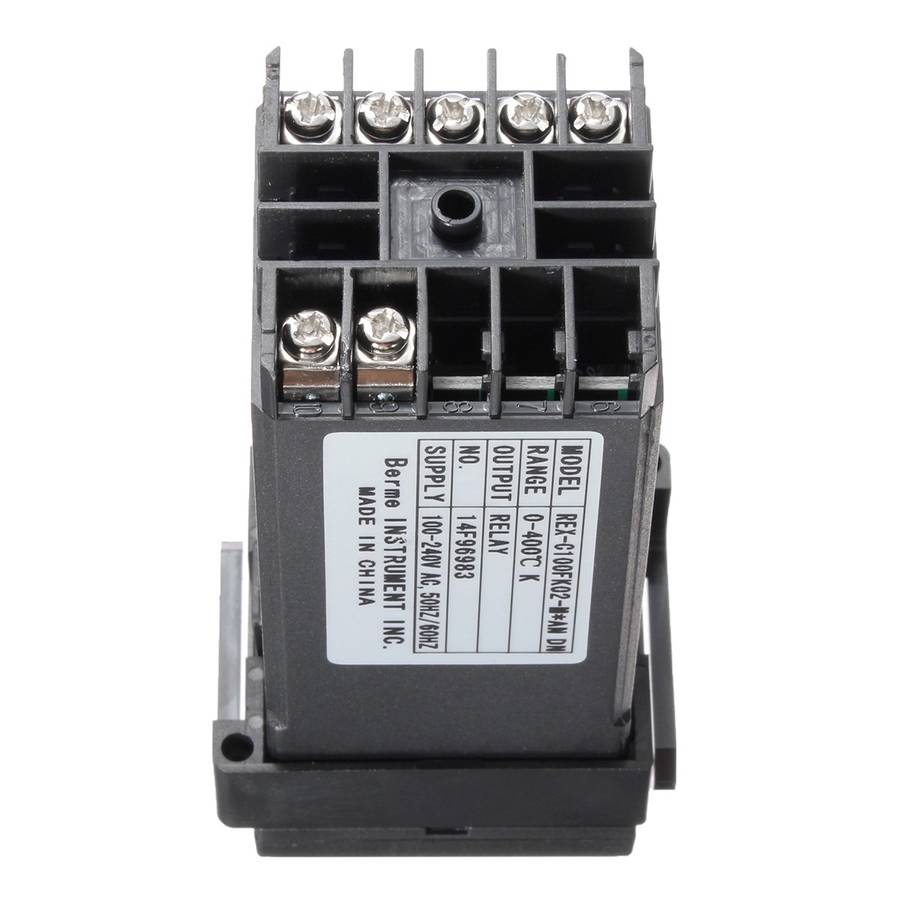

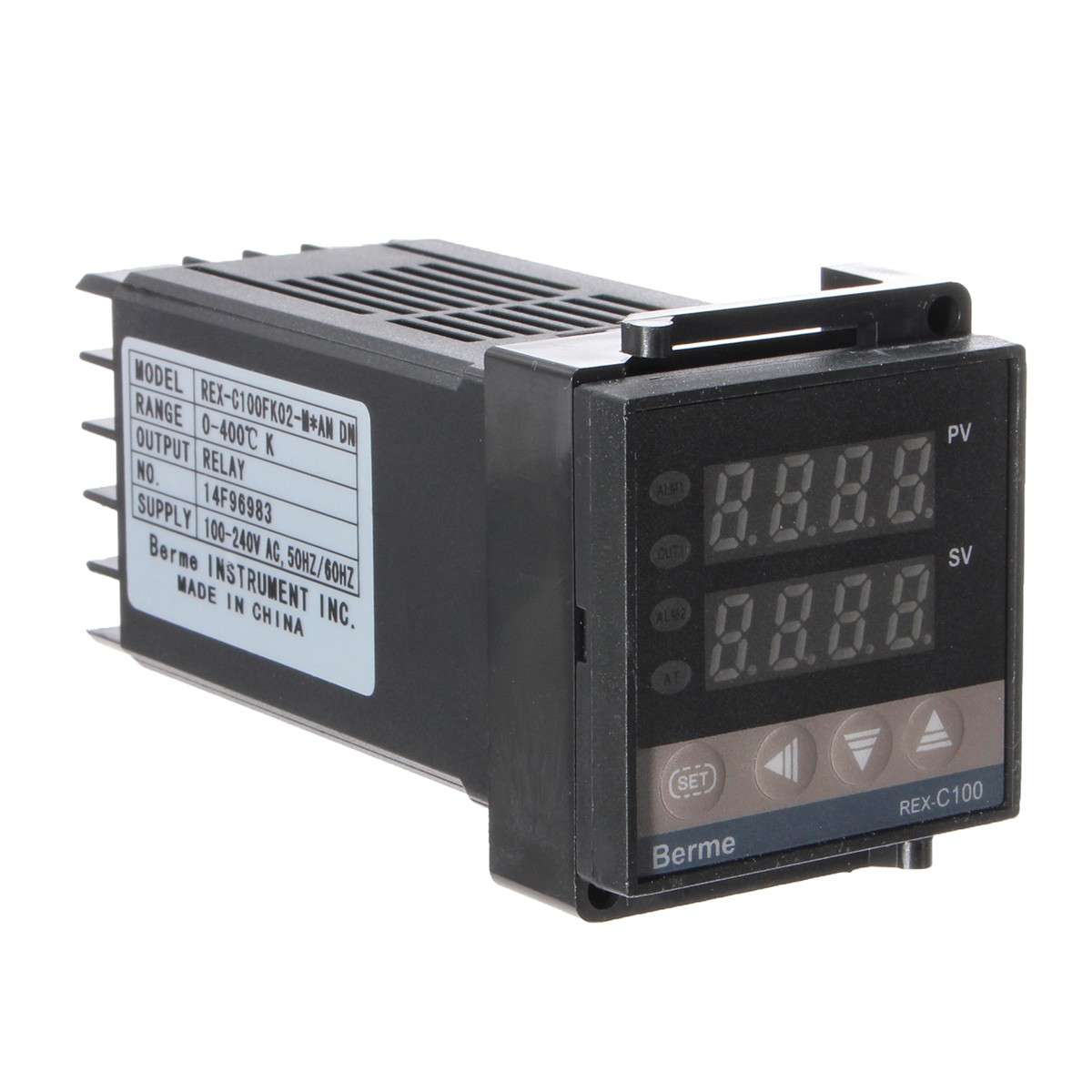

Details Pictures :
