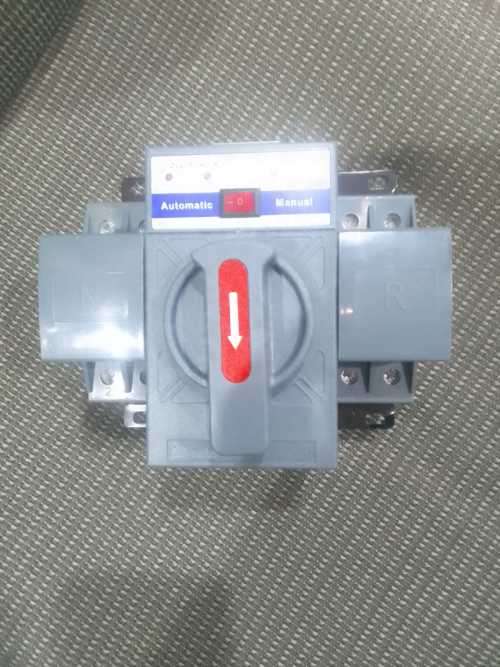

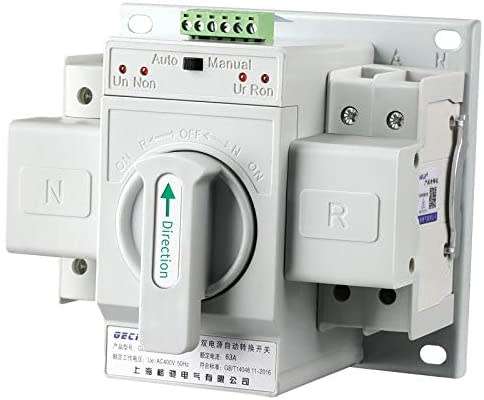

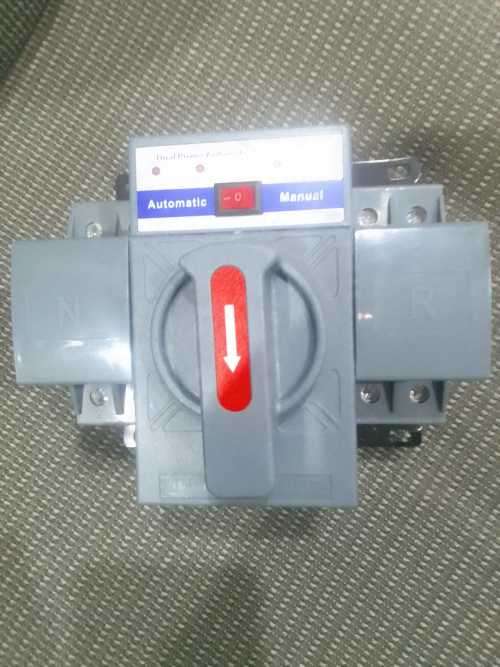

Dual Power Automatic Changeover switch ATS 63A (Use with Generator or Inverter) ATSE

The switch will automatically flick over to backup supply when Eskom turns off and back to Eskom when it comes back on.

It will not automatically start your generator but will flick over to the generator the moment you start the generator.

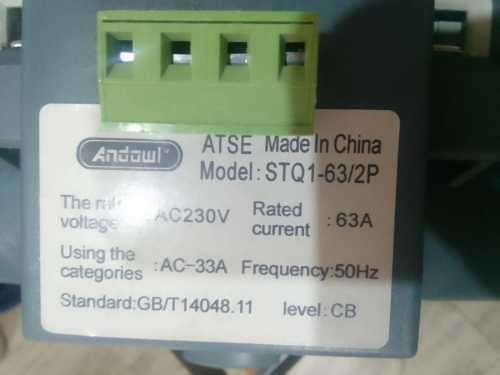

2P 63A 240V MCB type

DOWNLOAD MANUAL

Dual power Automatic transfer switch can switch to Normal power or reserve power automatically.

Please noted that the switch can't turn on or turn off the generator.

This switch Normal power first. If normal power on, the switch will switch to Normal power. If normal power off, and reserve power on, the switch will switch to reserve power.

Wire:

Press the button to Automatic, the switch will switch to Normal power or reserve power automatically.

Press the button to Manual, Then you have to switch the Direction manually.

Application:

The ATS is terminal type automatic transfer device.

It's suitable for Single Phase dual power grid with AC 60Hz, rated voltage 400V/240V and rated current up to 63A.

When one power goes wrong (only test normal Phase A voltage and reserve Phase A voltage, only test loss voltage or loss phase),it will automatic connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits.

Normal conditions for operation and installation:

• Environmental Temperature Condition:-5~+40C
•

• Installation site is not more than 2000 meters above sea level.
•

• Pollution Level: Grade 3
•

• Installation Category: 3
• Vertical installation or horizontal installation
