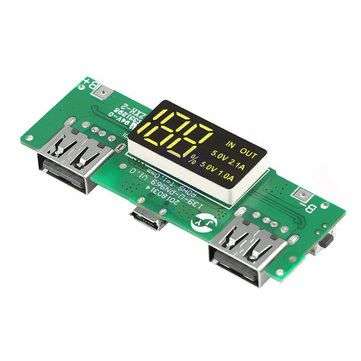

Dual USB 5V 2.1A + 1A Lithium Charger (powerbank) module with display
Build your own power bank with a 2.1A and a 1A USB port.
Note:
1. The positive pole of the battery is connected to B and the negative pole is connected to B-, do not reverse it. If it is reversed, it will burn out!!!!
2. This module is a portable backup power supply with an input that matches the 5.0V adapter to charge the internal battery. Use the built-in battery for a portable device to provide 5.0V/3.0A USB2.0 supply output for external devices.
Specifications:
Allowed 0V change: Yes
Dual output current: 5V 1A/2.1A
Input voltage B to B-: 3.0 - 4.2V
Charging cable: Micro USB Input and Dual USB output
Button function: Press and hold the button after standby, the LED digital screen displays the power
Size: 6.8* 2.3* 0.1cm
LED Indicator Display:
The LED digital screen displays the current battery charge while charging.
When discharging, the LED digital screen displays the current power, and the display is saved in about 30 seconds (double-click the button to resume display).
The system will provide an accurate battery indication after a complete charge and discharge.
Prevent Overcharge Protection:
Detection voltage: 4.200.05V
Release voltage: 4.1000.05V
Detection delay time: <200 ms
Prevent Under Voltage Protection
Detection voltage: 3.00.10V
Release voltage: 3.100.10V
Detection delay time: <100 ms
Short Circuit Protection:
Short detection delay time: <50S
Release Conditions: Cut-off load
Normal Current Consumption:
Normal current consumption of PCM: Max 60A
Standby current consumption: Max 50A
Suggest Working Conditions
Max continuous charge/discharge current: 1.5/2.4A
Suggest working temperature: -5 - 45
