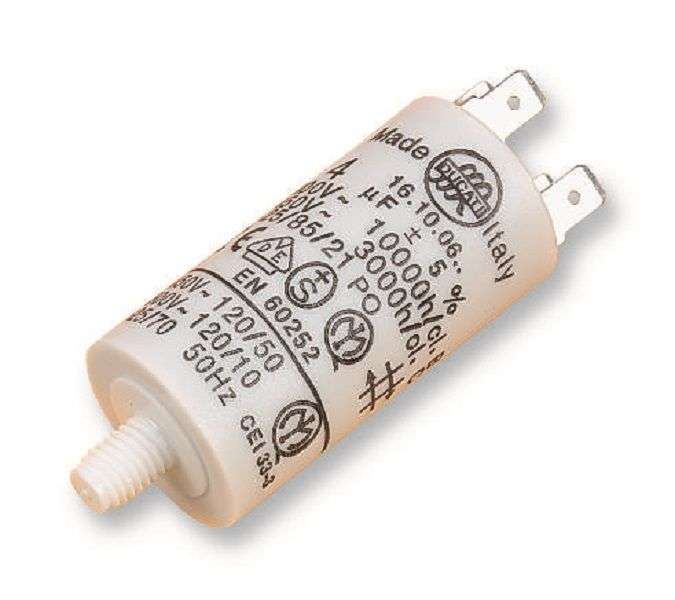

Ducati (4.16.10.08.64) Motor Run Capacitor, Metallized PP, Can, 5 µF

Motor Run Capacitor, Metallized PP, Can, 5 µF, ± 5%, 450 VProduct InformationDielectric Type: Metallized PPCapacitor Case / Package: CanCapacitance: 5µFCapacitance Tolerance: ± 5%Capacitor Mounting: -Voltage(AC): 450Vdv/dt Rating: 20V/µsCapacitor Terminals: Quick ConnectLead Spacing: 14.4mmHeight: 55mmProduct Range: 4.16.10Operating Temperature Min: -25°CProduct Height: 55mmProduct Diameter: 28mmOperating Temperature Max: 70°CSeries Name: 4.16.10Product OverviewThe 4.16.10.08.64 is a metalized polypropylene Film Capacitor with snap-interminals. The dielectric is polypropylene film, the electrodes consist of anextremely thin metal coating obtained by vacuum evaporation. Case and cover aremade with self-extinguishing plastic material, the capacitive element is sealedwith polyurethane resin.Low losses non-inductive windingSelf-healing property avoiding short circuitsSmall size and limited weightNo leakage riskClass-P0 safety protectionApplicationsMotor Drive & Control
