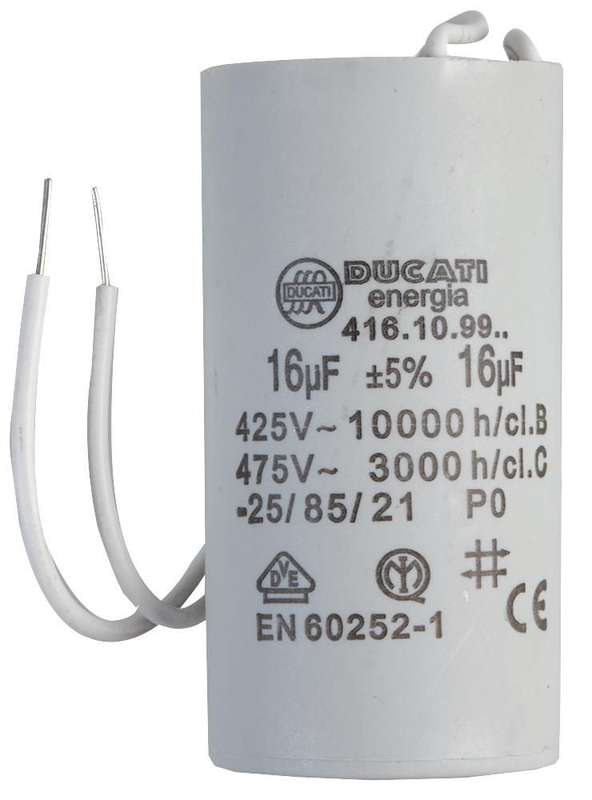

Ducati (4.16.10.99.06) Motor Run Capacitor, Metallized PP, Can

Motor Run Capacitor, Metallized PP, Can, 16 µF, ± 5%, 450 VProduct InformationDielectric Type: Metallized PPCapacitance: 16µFCapacitor Case Style: CanCapacitor Case / Package: CanCapacitance Tolerance: ± 5%Capacitor Mounting: -Voltage(AC): 450Vdv/dt Rating: 20V/µsCapacitor Terminals: Wire LeadedHeight: 70mmLead Spacing: -Operating Temperature Min: -25°COperating Temperature Max: 70°CProduct Height: 70mmProduct Diameter: 36mmSeries Name: 4.16.10Product Range: 4.16.10Product OverviewThe Ducati 4.16.10 series are general purpose, metalized polypropylene filmcapacitor. The polypropylene film acts as a dielectric and electrodes consist ofan extremely thin metal coating obtained by vacuum evaporation. Capacitiveelement is sealed with polyurethane resin. Case and cover are made with selfextinguishing plastic material.Low losses non-inductive windingSelf-healing property avoiding short circuitsSmall size and limited weightNo leakage risk.Class of safety protection: P0ApplicationsConsumer Electronics, Portable Devices, Power Management, Industrial
