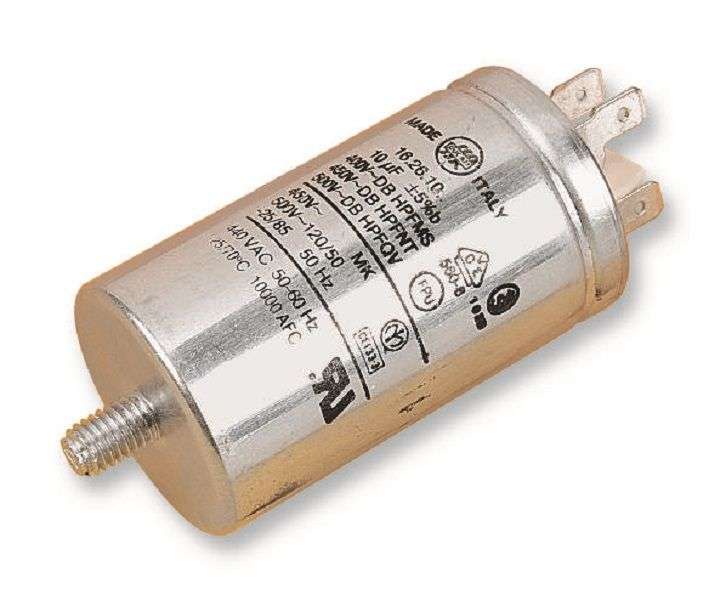

Ducati (4.16.26.10.64) Motor Run Capacitor, Metallized PP, Can, 10 µF, ± 5%

Motor Run Capacitor, Metallized PP, Can, 10 µF, ± 5%, Stud Mount - M8, 450 VProduct InformationDielectric Type: Metallized PPCapacitor Case / Package: CanCapacitance: 10µFCapacitance Tolerance: ± 5%Capacitor Mounting: Stud Mount - M8Voltage(AC): 450Vdv/dt Rating: 20V/µsCapacitor Terminals: Quick ConnectLead Spacing: 12mmHeight: 72mmProduct Range: 4.16.26Operating Temperature Min: -25°CProduct Height: 72mmProduct Diameter: 40mmOperating Temperature Max: 70°CSeries Name: 4.16.26Product OverviewThe 4.16.26 series metallised polypropylene Film Capacitor with snap-interminals. The electrodes consist of an extremely thin metal coating obtained byvacuum evaporation. The capacitor has no risks of leakage. The cases aremetallic and covers are in self extinguishing plastic (class V2 standards). Thecapacitor is sealed by an edging of the case on the cover, ensuring air-tightclosure. The use of an-insulating container between the capacitive element andthe metal case, combined with the blocking of the capacitive element in resin,make the capacitor extremely safe both from the electric point of view (earthinginsulation) and in terms of resistance to vibrations. The capacitors areequipped with a protection device against fire danger in compliance with EN60252-1 standards (safety protection class P2).IP00 Protection ratingApplicationsIndustrial
