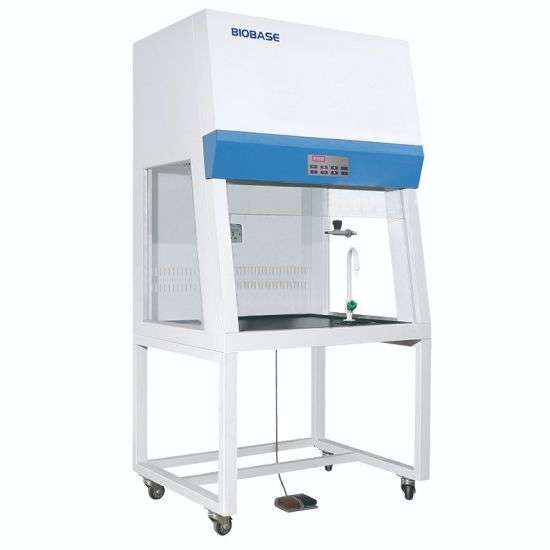

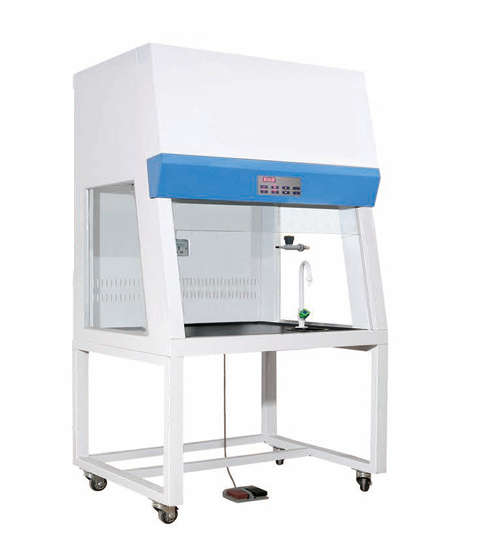

Ducted Fume Hood
Lead Time: 4-6 Weeks
A fume hood is a type of local exhaust ventilation device that is designed to limit exposure to hazardous or toxic fumes, vapours or dusts. It's mainly used in hospital labs, clinical trial labs, chemistry labs, university science labs, microbiology labs etc.
Ducted Fume Hood
The Special Cabinets are manufactured upon an order.
1. UV lamp for sterilization
2. Motorized front glass window
3. Resistant to weak acid and alkali
4. Adjustable air speed: 9 levels
5. Alarm when filter working time 3500 hours
6. With memory function in case of power-failure
7. Back side air compensation, to avoid turbulence in work area
8. 8° slope front ergonomics design, fatigue-free working posture
9. Microprocessor control system, LEd display shows filter working time
10. Transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment
Technical Parameters:
| Model | FH1200(X) |
| External Size (W*D*H) | 1200*840*2150mm |
| Internal Size (W*D*H) | 1080*730*745mm |
| Max Opening | 520mm |
| Work Surface Height | 750mm |
| Blower | Built-in centrifugal blowers; Speed adjustable with 9 levels |
| Air Velocity | 0.3~0.8m/s |
| Noise | 60dB |
| LED Lamp | 12W*1 |
| UV Lamp | Emission of 253.7 nanometers for most efficient decontamination |
| Front Window | Motorized;5 mm toughened glass, anti-UV |
| Material | Exterior Body: Cold-rolled steel with anti-bacteria powder coating. |
| Work table: Chemical resistant phenolic resin |
| Waterproof Socket | 2 pcs |
| Power Supply | AC220V±10%,50/60Hz;110V±10%, 60Hz |
| Consumption | 400W |
| Stand Accessory | Water tap; Gas tap; Water sink; Base stand, UV lamp*2, LED lamp, Socket, 4 meters exhaust duct, Active carbon filter, Foot switch |
| Gross Weight | 253kg |
| Package Size(W*D*H) | 1350*1120*1680mm |
External Size(W*D*H): 1200*840*2150mm
Internal Size(W*D*H): 1080*730*745mm
Work Surface Height: 750mm
Power Supply: AC220V±10%, 50/60 Hz
Transport Package: Wooden Case or Carton or Required
Specification: 1200*840*2150mm
