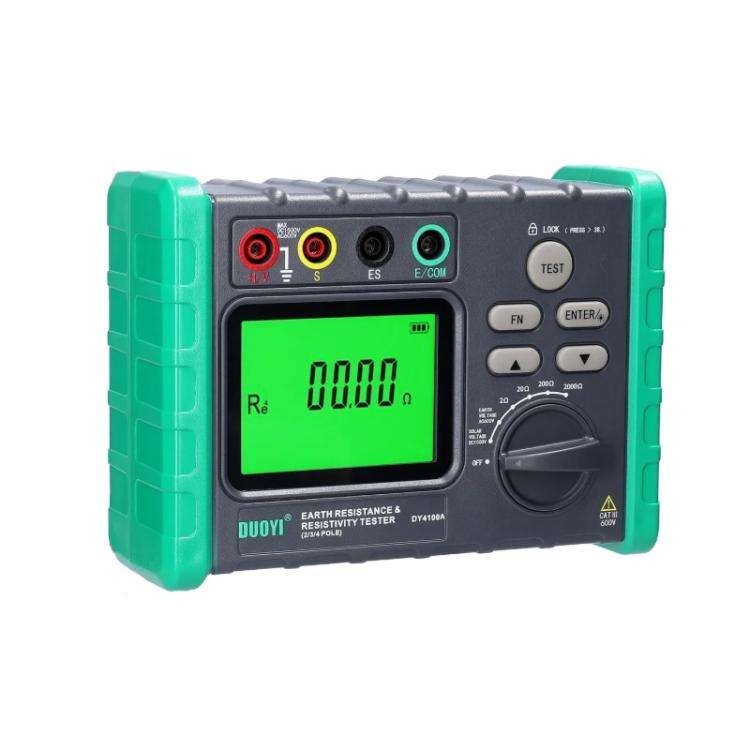

DUOYI Digital Ground Resistance Meter Tester, Model: DY4100A
+4

DUOYI Digital Ground Resistance Meter Tester, Model: DY4100A

10 available / new
R3,015.62
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
TBD0605912001
Bob Shop ID
645036776

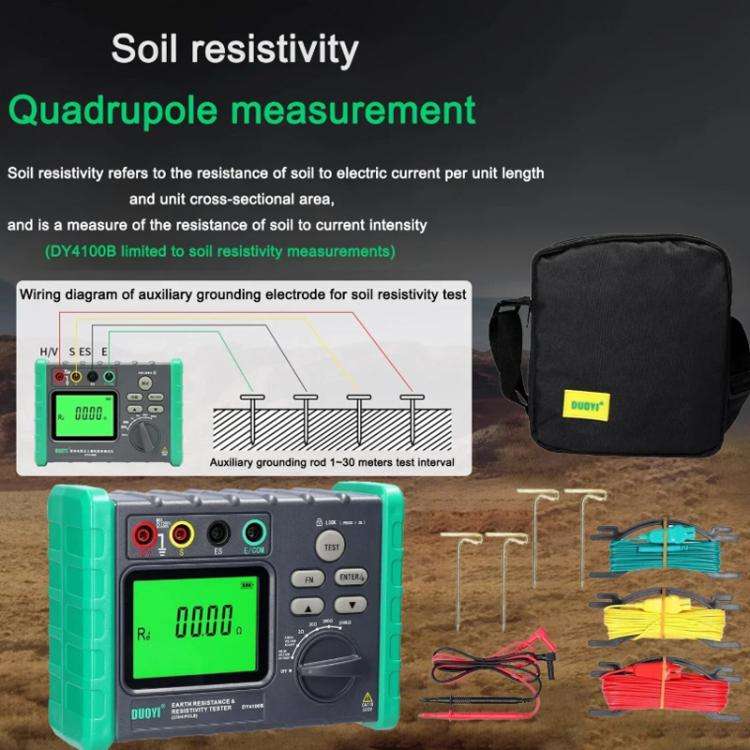

1. Ground resistance Re (Rg when testing soil resistivity p)

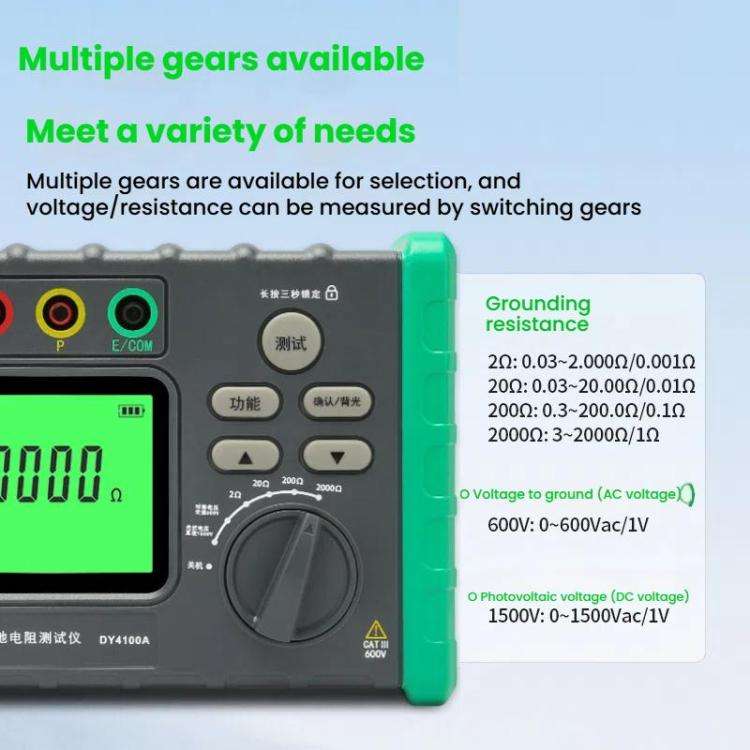

2. Range: 2 ohms/20 ohms/200 ohms/2000 ohms

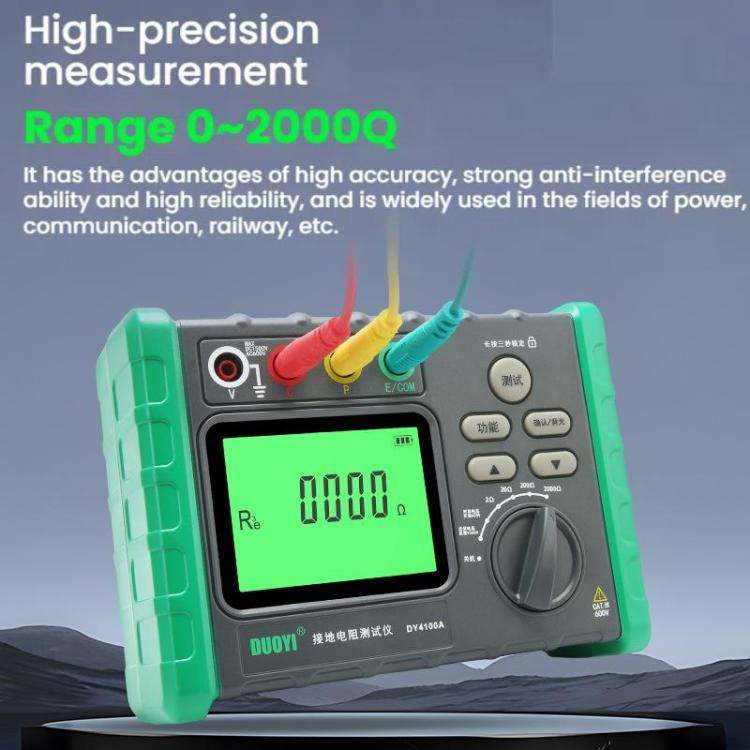

3. Test range: 0.03~2.000 ohms/0.03~20.00 ohms/0.03~200.0 ohms/0.03~2000 ohms
4. Voltage to ground (AC voltage): 600V Test range 0~600Vac
5. Photovoltaic voltage (DC voltage): 1500V Test range: 0~1500Vac
6. Test method: voltage drop method (applicable to the current and voltage test of the probe)
7. Display: segment LCD display, display backlight
8. Battery voltage warning: Battery logo display
9. Continuous test times: In the 2 ohm range, test once every 30 seconds with a 1 ohm load, and can be repeated more than 400 times
10. Input exceeds display: Display "OL"
11. Automatic shutdown function: If there is no operation for 5 minutes after the key operation, the system will enter the automatic shutdown state
12. Overload protection: AC280V/10 seconds between E-S ports
13. Withstand voltage: AC3540V (50/60Hz)/5 seconds between the electrical circuit and the outer box
14. Insulation resistance: 50 milliohms or more between the electrical circuit and the outer box/DC 1000V
15. Power supply: 6 AA batteries (not included)

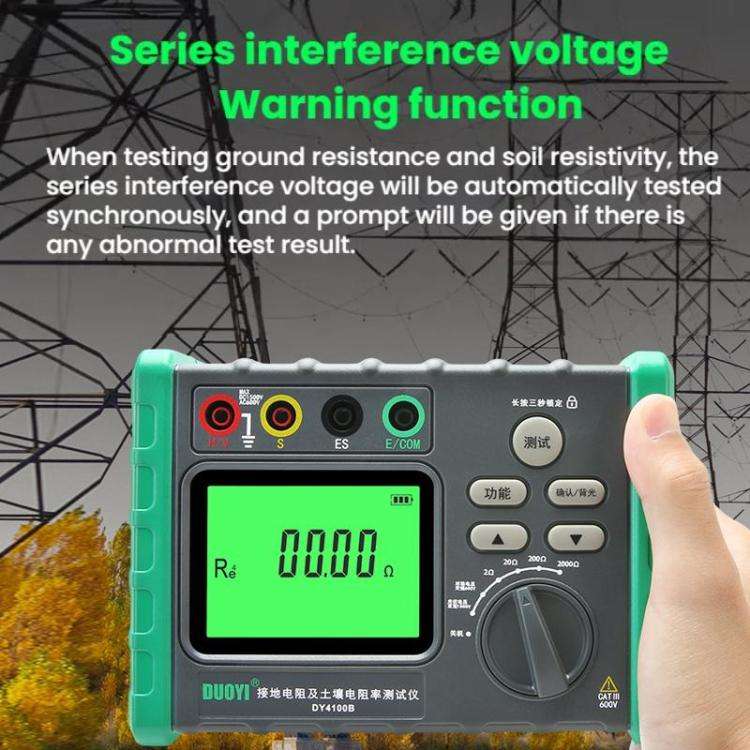

16. When testing the ground resistance and soil resistivity, the series interference voltage will be automatically tested synchronously, and a prompt will be given if there is an abnormal test result

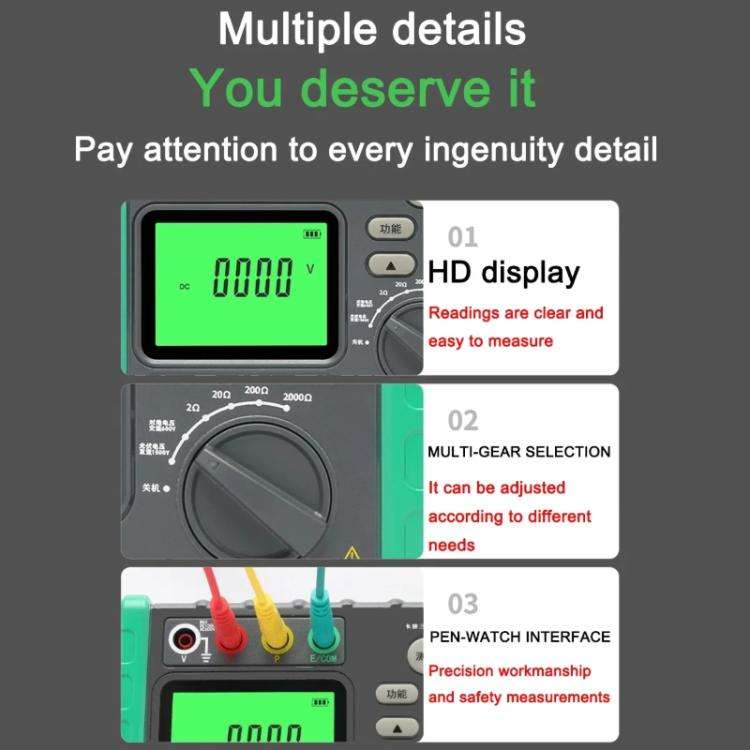

17. High-definition display, clear reading, easy measurement
18. Multiple gear selection, can be adjusted according to different needs
19. Applicable to measurement in power, post and telecommunications, railway, petroleum, chemical, communication, mining and other departments
20. Dimensions: 173x125x68mm

Packing list:
- DY4100A instrument x 1
- Cloth bag x 1
- Instruction manual x 1
- Certificate x 1
- Test line x 1 (red 15m/yellow 10m/green 5m)
- Multimeter pen x 1
- Ground rod x 2
