Descriptions:

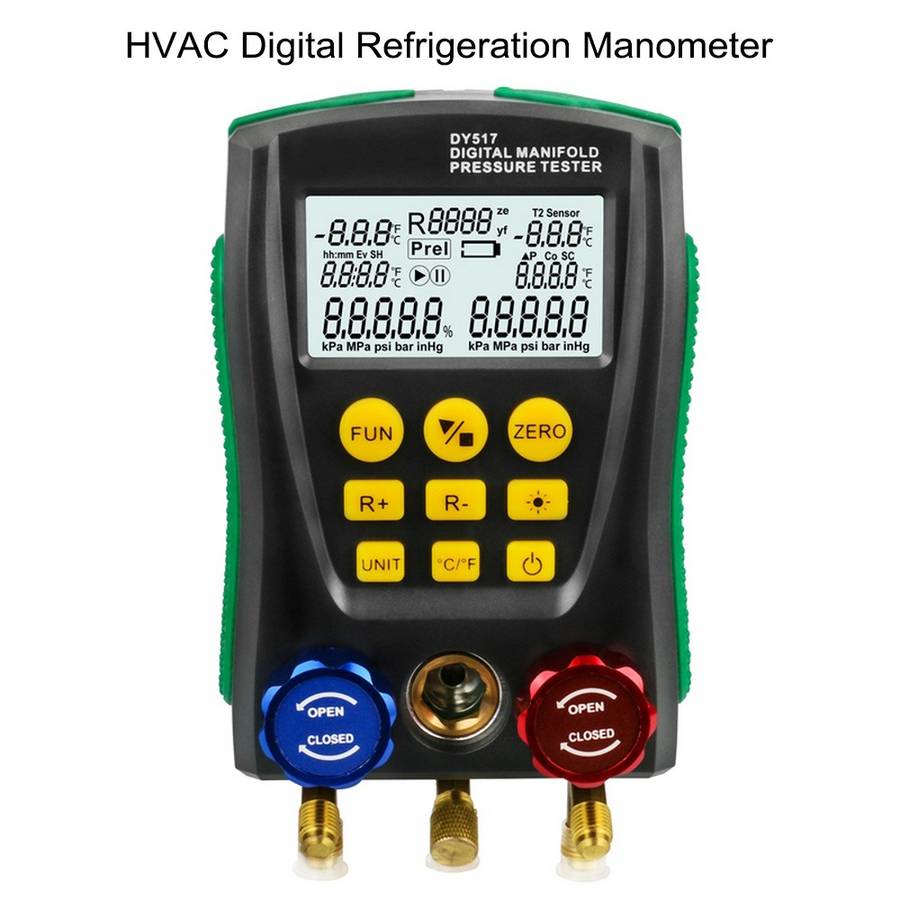

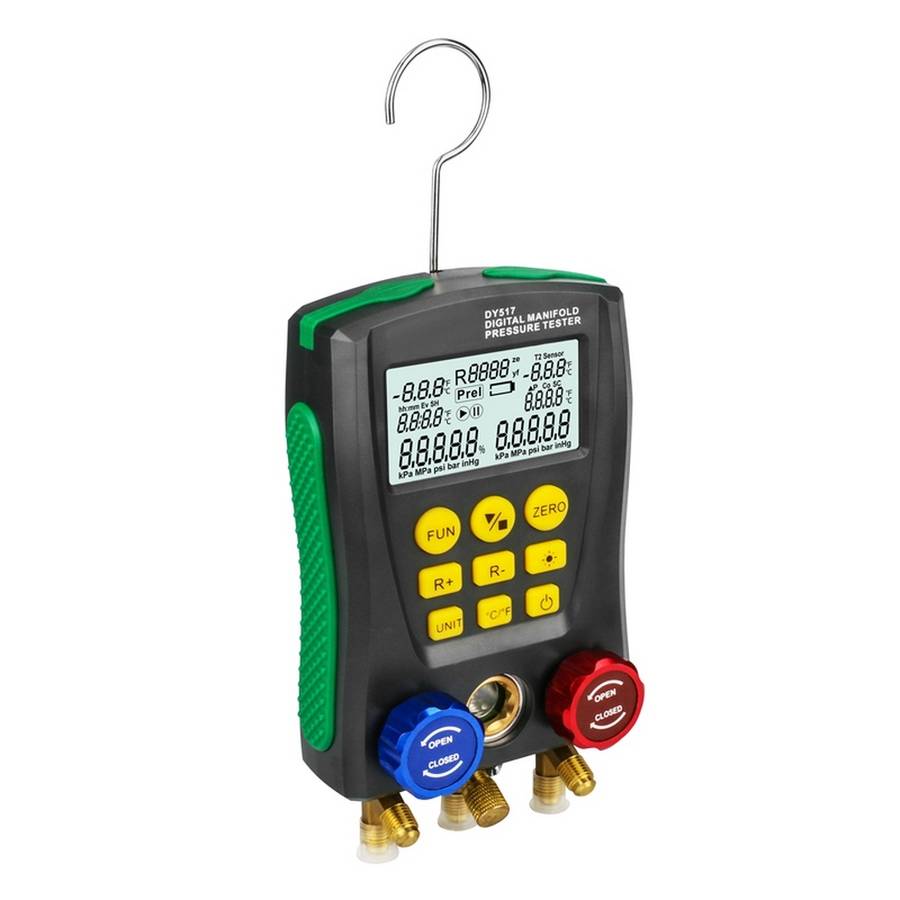

DUOYI Digital Manifold Gauge Refrigeration Pressure Tester Vacuum Temperature Meter Air Conditioning Valve Tool
The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation,
testing and maintenance of refrigeration equipment such as air conditioners,fridge and cold storage.
Specifications:
Pressure test: gauge pressure
Pressure test unit: Kpa; Mpa; bar; inHg; PSI.
Pressure test range: 0 Kpa — 6000 Kpa
Pressure test resolution: 1 Kpa
Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt
Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
Vacuum test: relative vacuum
Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.
Vacuum test range: -101 Kpa — 0 Kpa
Vacuum test resolution: 1 Kpa
Temperature test unit: °C (Celsius), °F (Fahrenheit)
Temperature test range: -40°C—150°C (-40°F—302°F)
Temperature test resolution:
0.1°C (-40°C—99.9°C), 1°C (100°C—150°C)
0.1°F (-40°F—99.9°F), 1°F (100°F—302°F)
Temperature test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgt
Built-in 89 kinds of refrigerant NIST: According to American NIST standard
Power Supply: 4 X 1.5V (SIZE.AA / LR6) Battery not include
Dimensions: 170*110*50mm weight: 950g

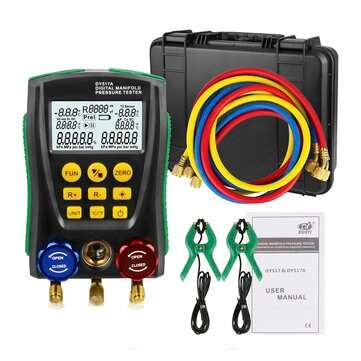

Package Includes:
1 x DUOYI DY517A Pressure Tester
1 x Case

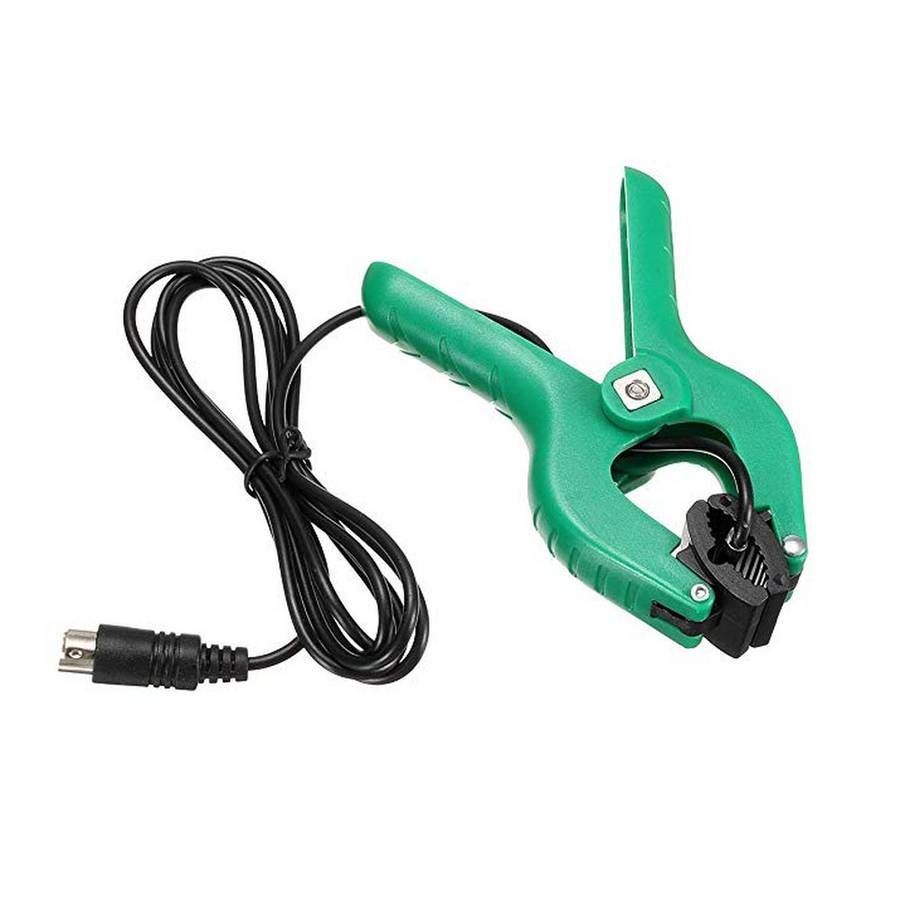

2 x Clips

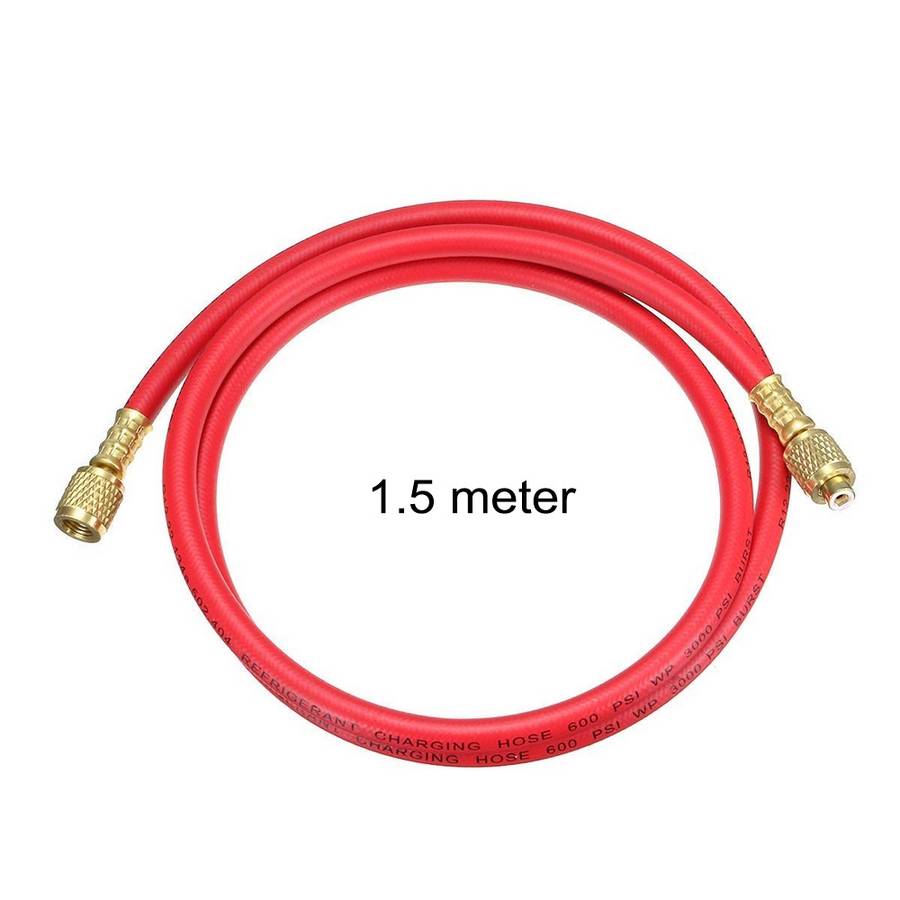

1 x Cables

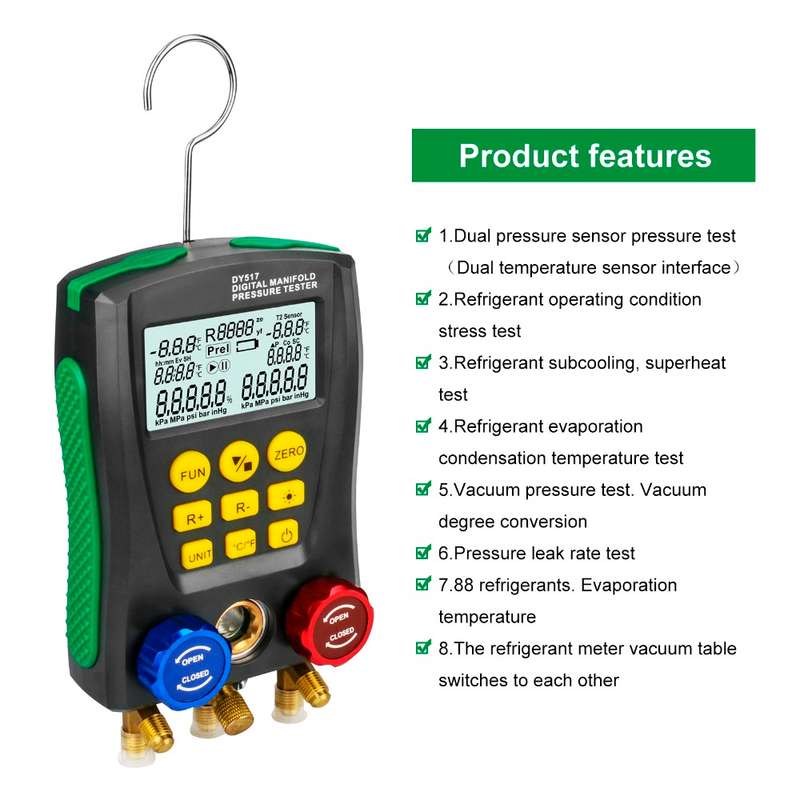

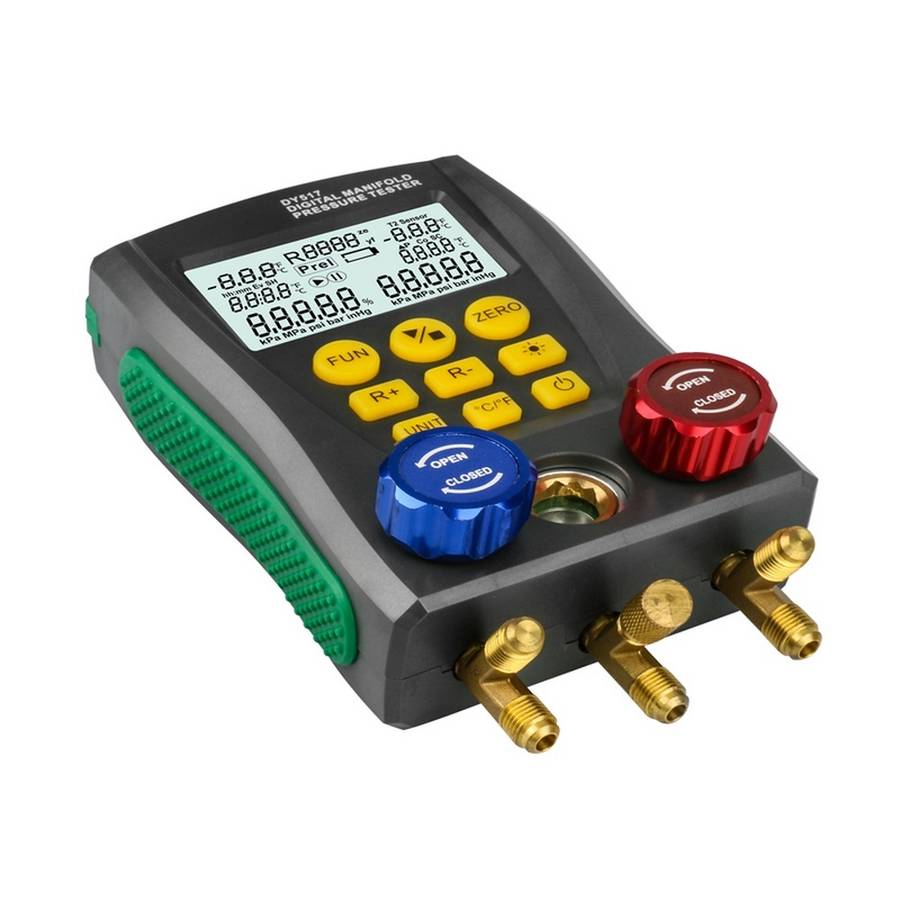

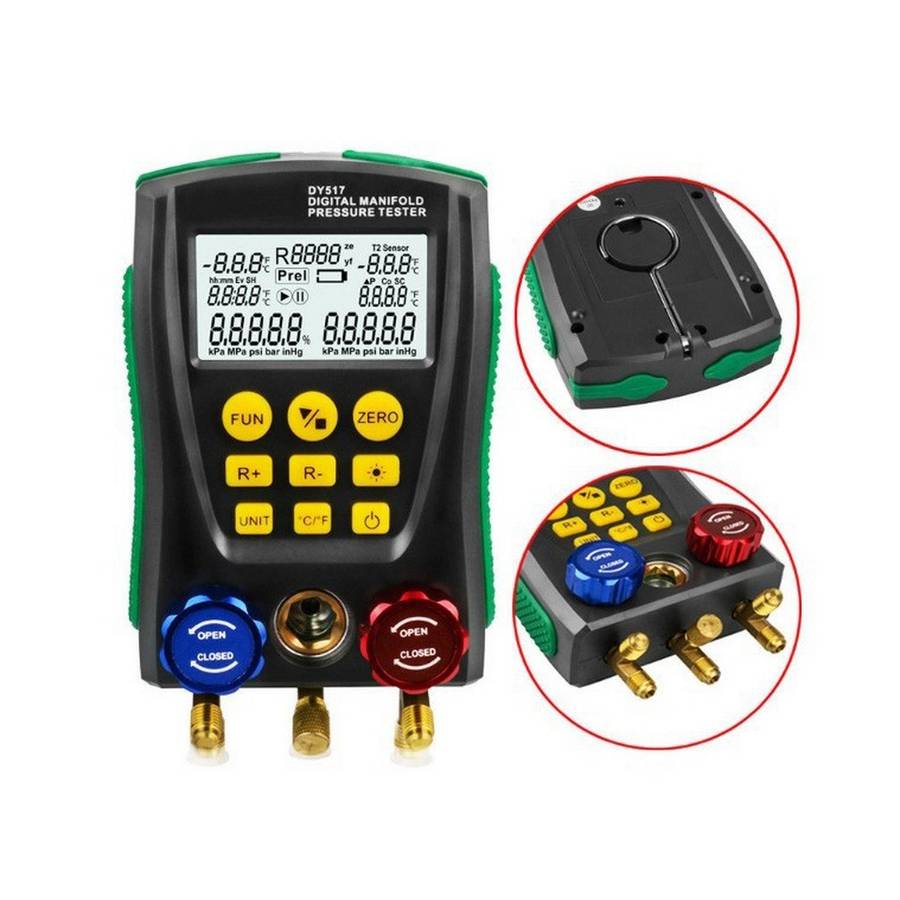

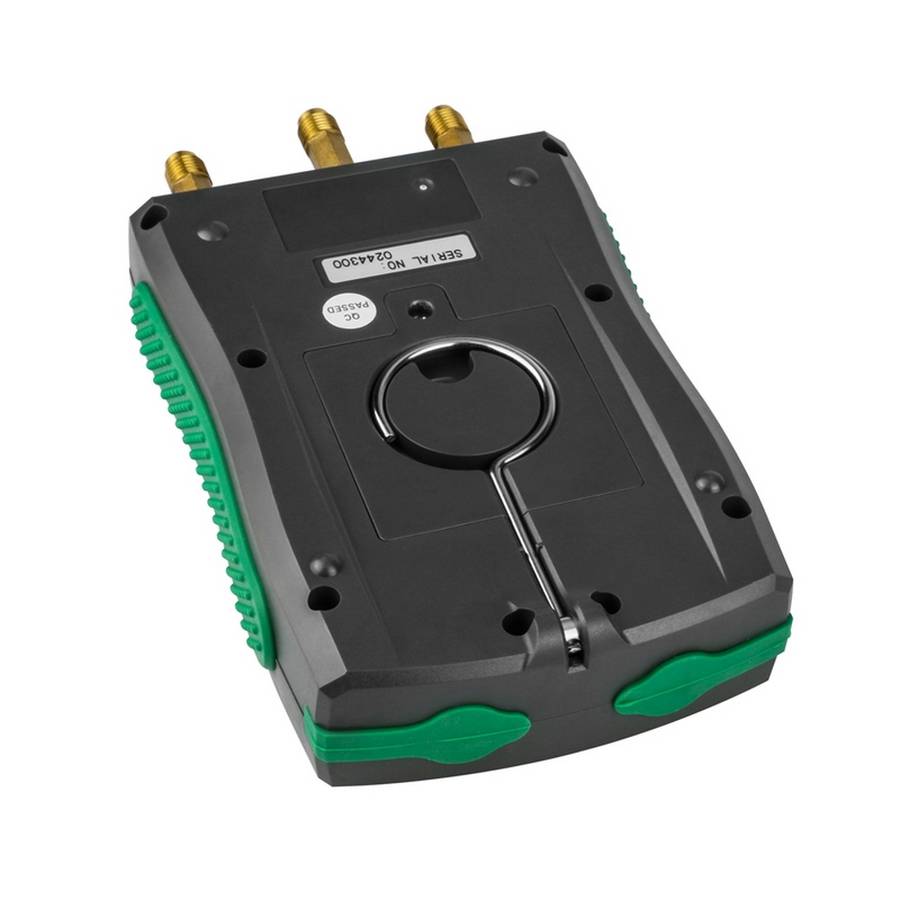

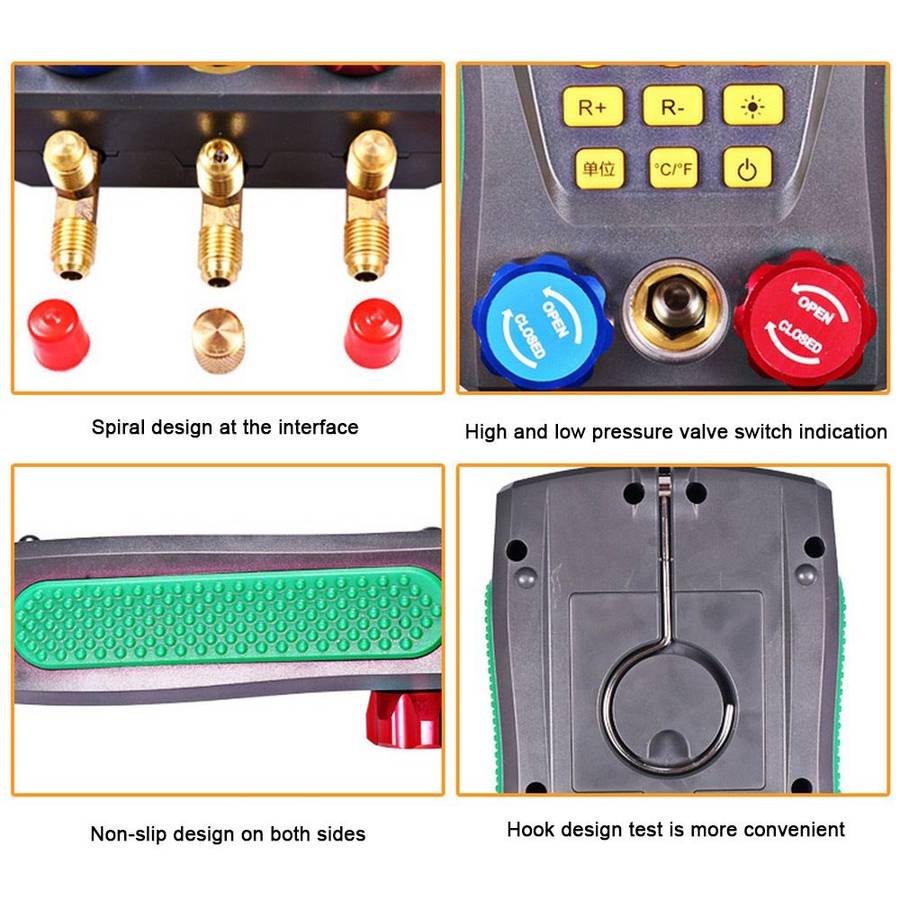

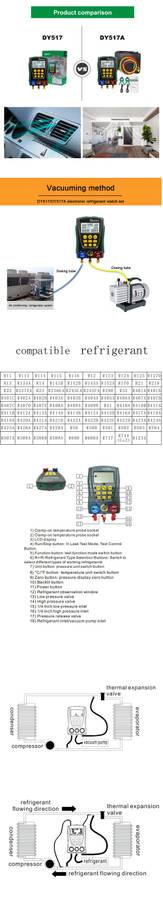

Details Pictures:
