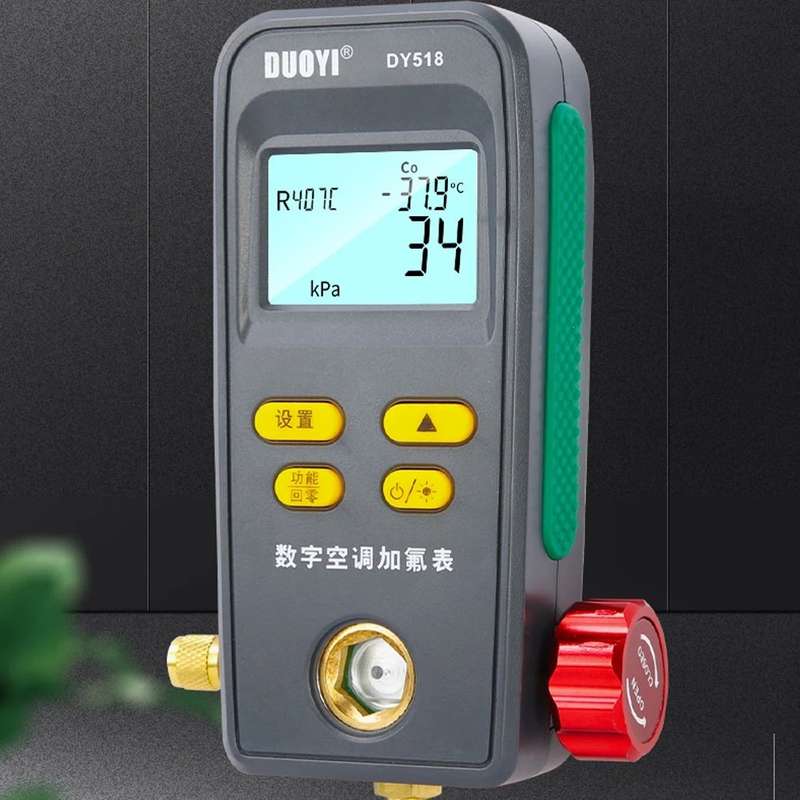

DUOYI DY518 Digital Manifold Gauge 0-6000Kpa Vacuum Pressure Temperature Leakage Tester Fluoride Met

Description:
Intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, inspection and maintenance of refrigeration equipment such as air-conditioning, refrigerator, cold storage.
Features:

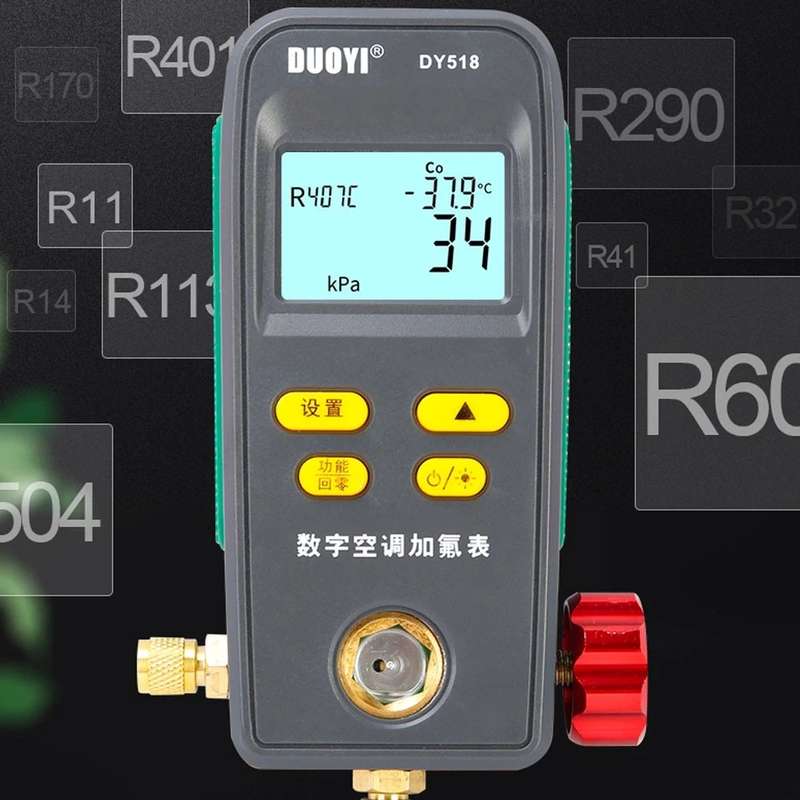

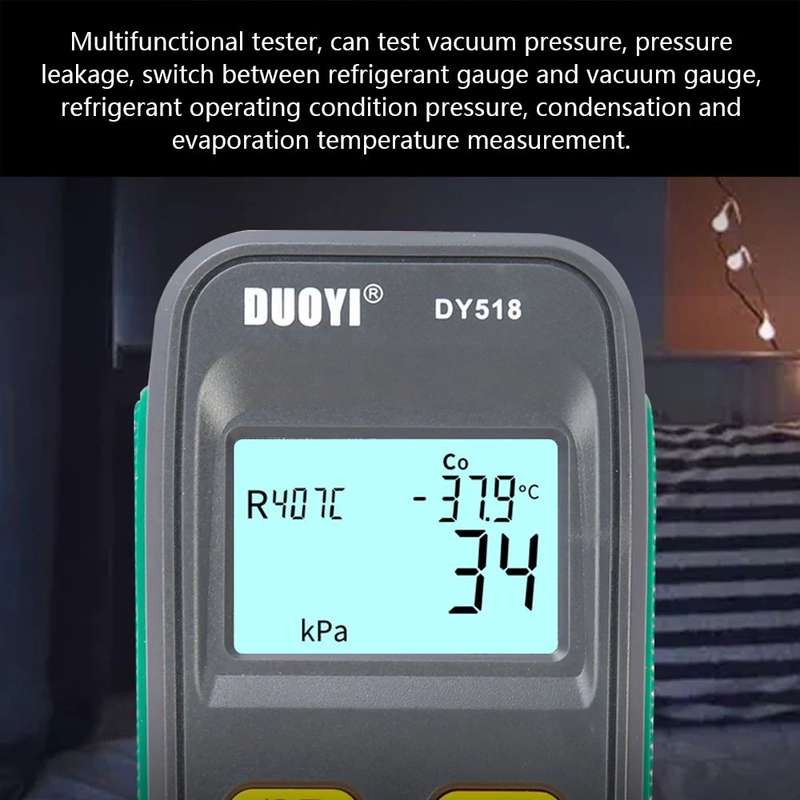

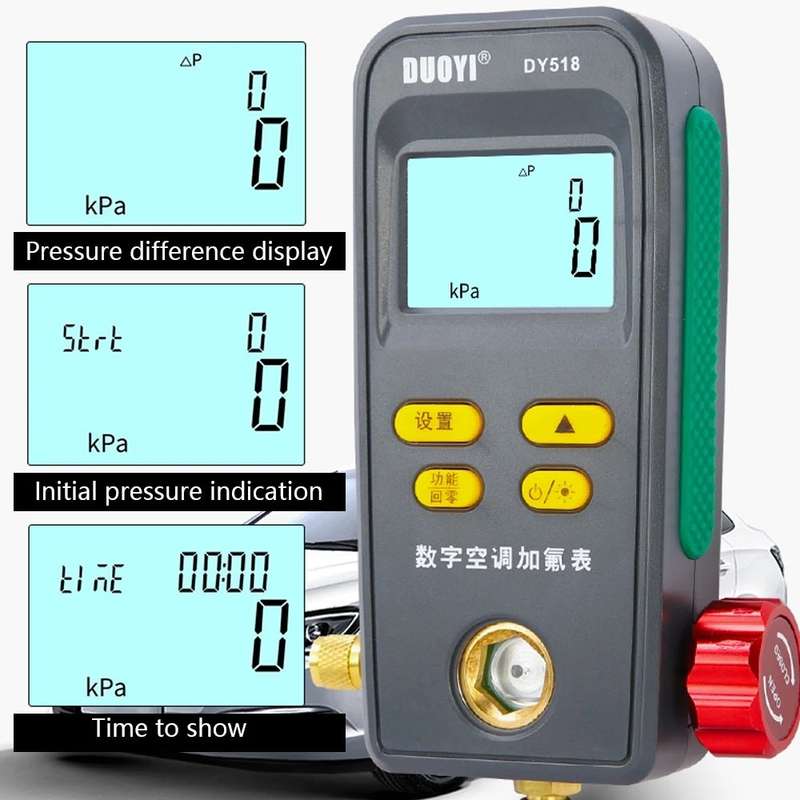

Multi-functional tester, can test vacuum pressure, pressure leakage, switch between refrigerant gauge and vacuum gauge, refrigerant operating condition pressure, condensation and evaporation temperature measurement. The pressure-holding leak test function of the instrument is mainly used to test the leakage of the refrigeration system. The test pipeline is pressurized to a certain value (or vacuum state) and then stopped, and the pressure changes within a period of time. Built-in 89 kinds of refrigerant pressure-evaporation temperature database, also calculate the subcooling superheat, to facilitate direct reading of operating process data. High-definition backlight large screen, clear data, no need to worry about the dark environment. Long-life valve switch, 1/4-inch standard interface design to ensure that the instrument`s durability and versatility. Intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, inspection and maintenance of refrigeration equipment such as air-conditioning, refrigerator, cold storage.
Specifications:
Material: ABS Pressure Test Unit: Kpa; Mpa; bar; inHg; PSI Pressure Test Range: 0Kpa-6000Kpa Pressure Test Resolution: 1Kpa Pressure Test Accuracy: ±0.5%(FS)+5dgt Pressure Overload Limit: 10000Kpa(10Mpa;100bar) Vacuum Test Unit: Kpa; Mpa; bar; inHg; PSI Vacuum Test Range: -101Kpa-0Kpa Vacuum Resolution: 1Kpa Battery model: AA battery*3 (not included)

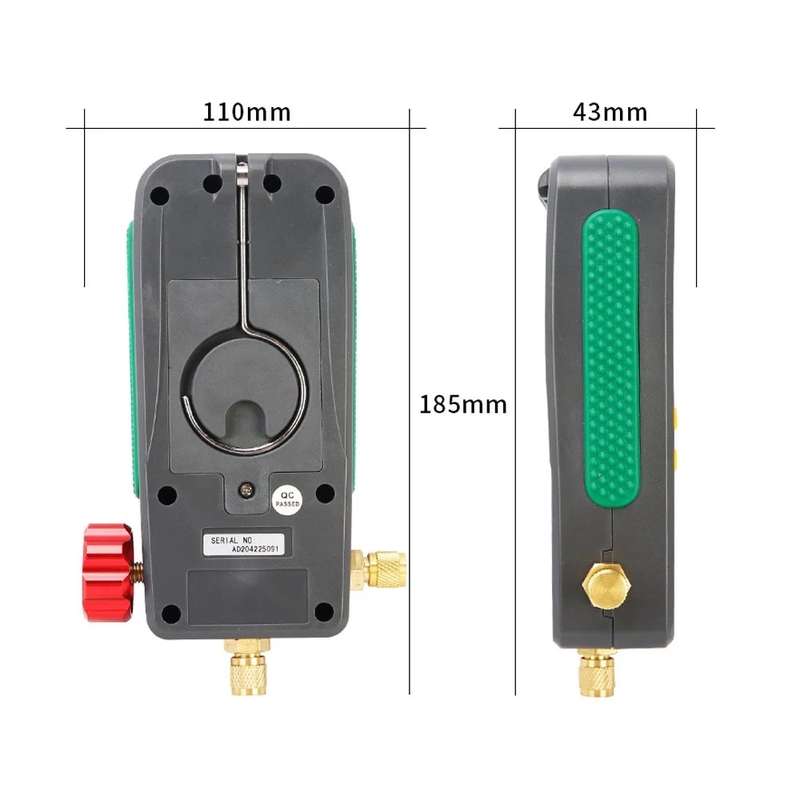

Item Size: 185 x 110 x 43mm/ 7.3 x 4.3 x 1.7in Package Size: 200 x 150 x 60mm/ 7.9 x 5.9 x 0.2in Package Weight: 558g/ 19.7oz

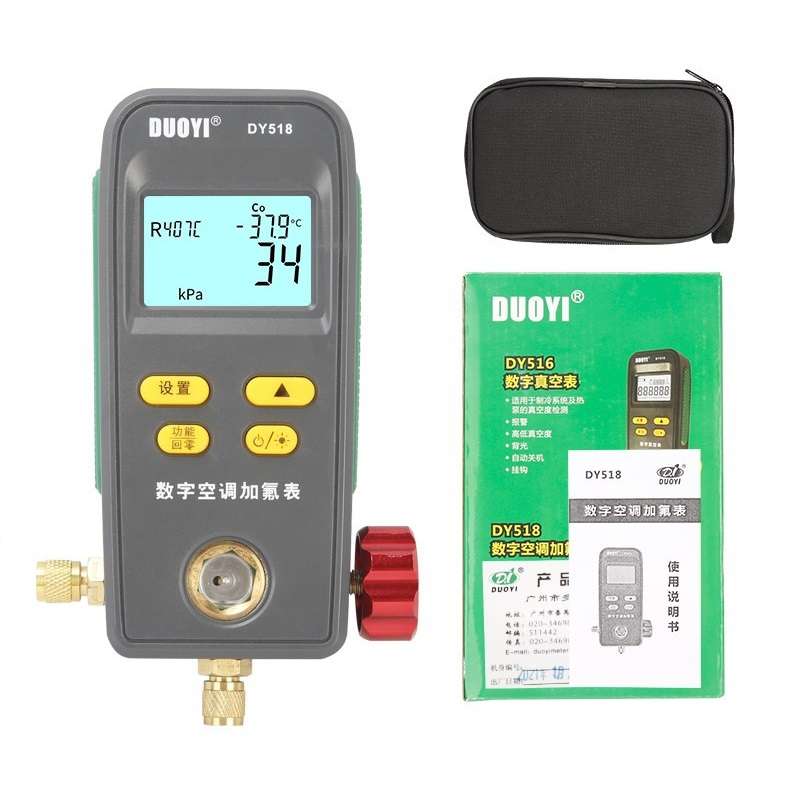

Package Included:
1 x Digital Manifold Gauge(Battery not included) 1 x Portable Bag 1 x Manual

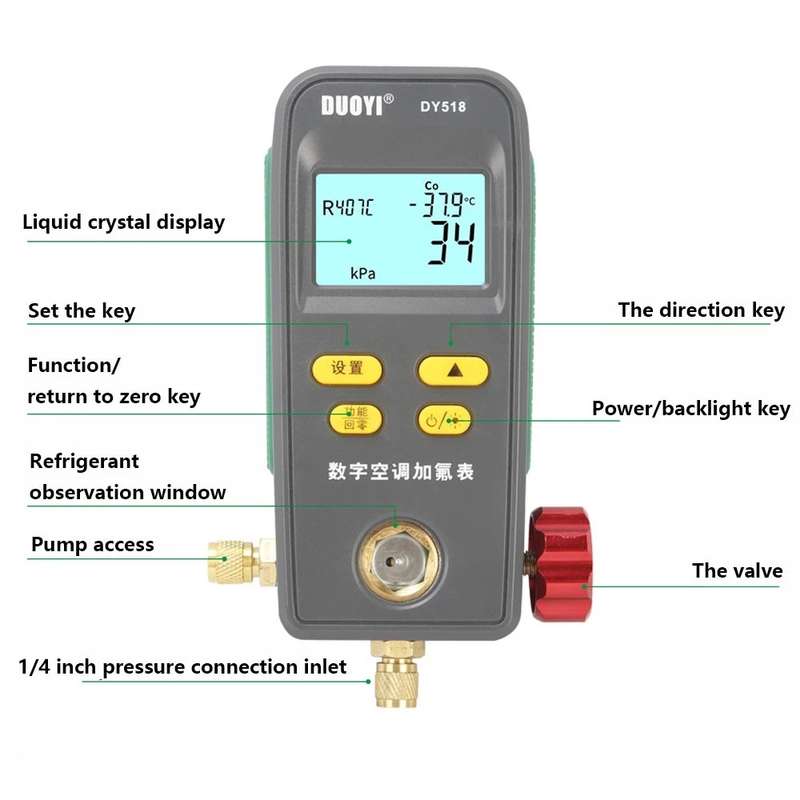

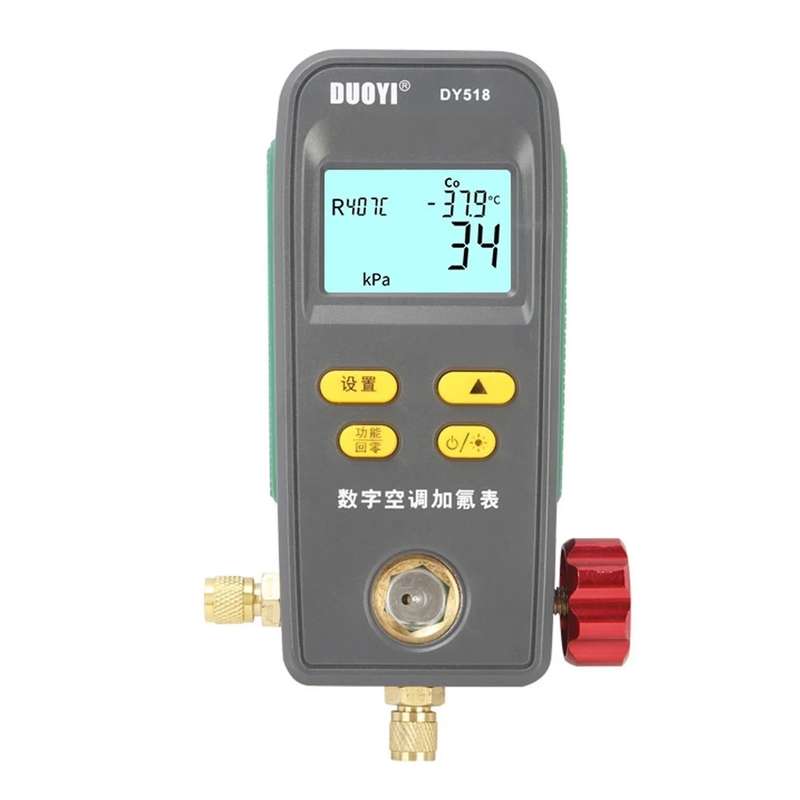

Details Pictures:
