Specification:

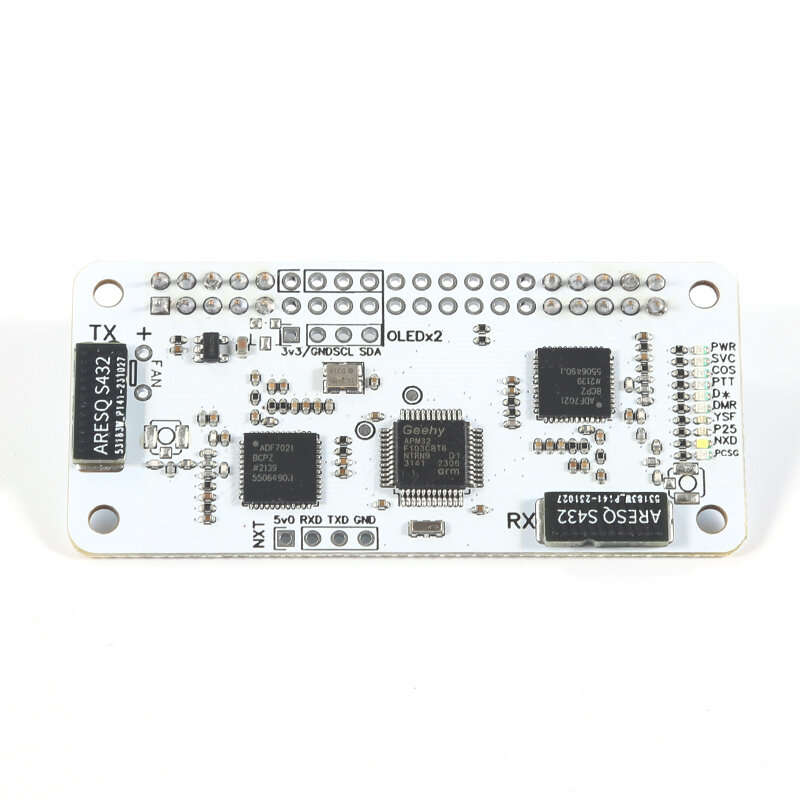

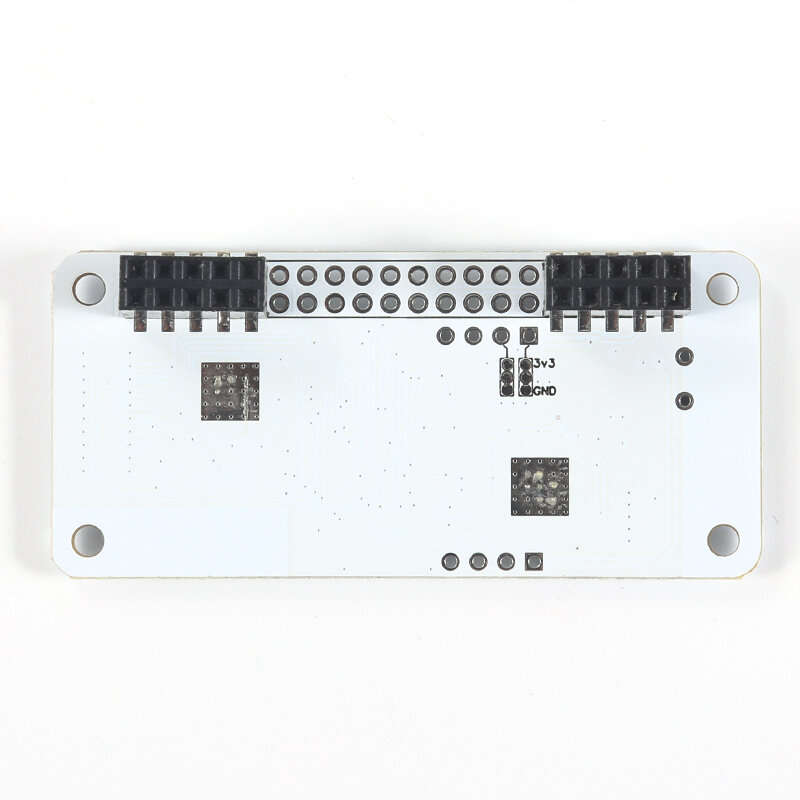

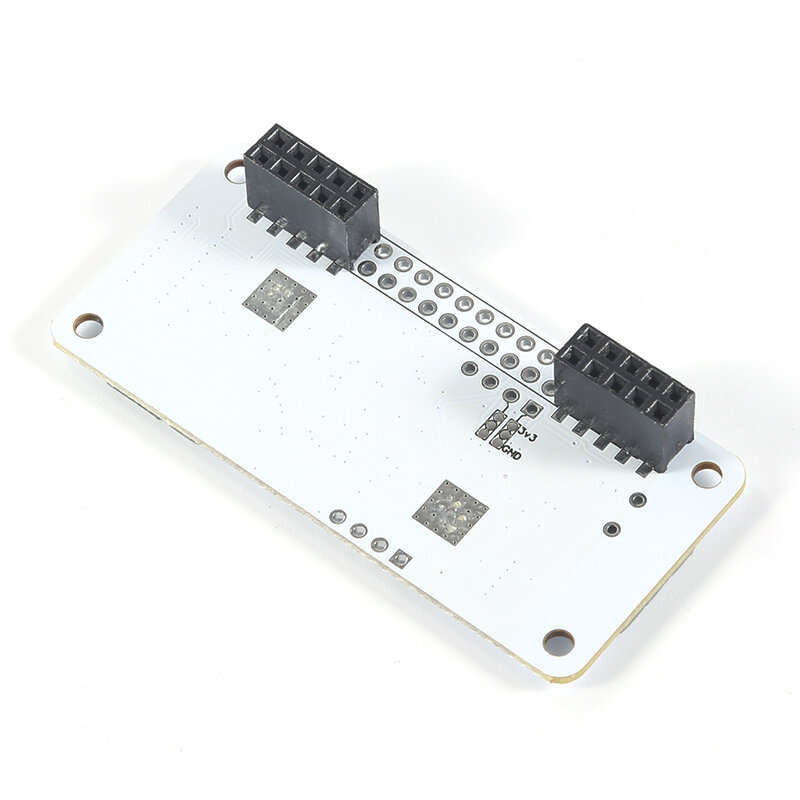

Product Name: Duplex MMDVM Hotspot Board
Frequency Support: UHF 430-440MHZ, VHF 140-150MHz
Compatibility: Raspberry Pi Zero W, 2W, 3B+, 4B, 4B+
Modem Type: STM32-DVM/MMDVM_HS-Raspberry pi Hat(GPIO)
Onboard Antenna: Yes
This link is only for Mini Duplex MMDVM boardsSetting up Pi-star software and raspberry hardware (rpi 0-3) New pi4b needs to remove Right SocketPi-star general configuration for MMDVM_DUPLEXSet controller mode: duplex repeater or simpleRadio frequency: Freq: 144-148, 219-225, (main frequency band) 420-475, 842-950Duplex mode: Example: RX:438.000000 TX:433.000000Duplex mode: Example: RX:145.000000 TX:433.000000Simple mode: Example: RX:438.000000 TX:438.000000Radio/Modem Type: STM32-DVM/MMDVM_HS-Raspberry pi Hat(GPIO) or any other (GPIO board)Options: (not needed now, some older boards need to be set)Admin->Expert
