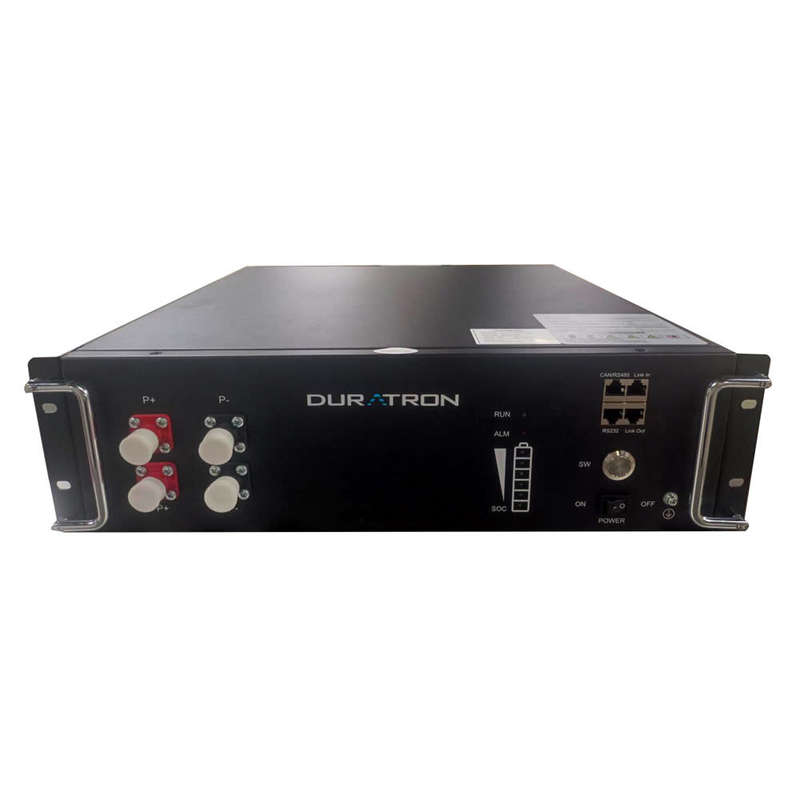

Duratron 48V 100Ah Lithium-Ion Battery

Technical Features

• Easy to install: Plug and play, compact, and light, requires 1-2 persons for installation
• Compatible with most well-known Inverters
• Excellent low temp. performance (Optional): Operates at -10 without limitations or attenuation.
• Battery APP (Optional): Real-time monitoring, remote maintenance, and upgrades

Specifications:

General Data:

• Battery Type: Lithium Iron Phosphate Battery (LiFePO 4 Battery)
• Model: 48V100AH
• Rated Voltage: 48V
• Rated Capacity: 100Ah
• Charge / Discharge Cut Off Voltage: 55V to 40.5V
• Rated Charge / Discharge Current: 50A / 50A
• Maximum Charge / Discharge Current: 100A(1C)
• External Communication: RS232, RS485

Operating Conditions:

• Installation Location: Indoor
• Work Temperature (Charge): 0 C to 55 C
• Discharge Temperature: -20 C to 60 C
• Storage Temperature: -20 C to 45 C
• Operating Relative Humidity: 10% to 90%RH
• Storage Relative humidity: 5% - 95%RH
• Design Life: 10 Years
• Life Cycle Character: 6000 Cycles
• IP Code: IP20
• Cooling: Natural Cooling

Certifications:

• Safety: IEC62619 / CE / UL1973 / FCC / UL9540A
• Transport: UN38.3

Additional Information:

Product Weight

• Weight: 45Kg
• Dimensions: 44.2cm × 50cm× 13 cm

What's in the box
1 X Lithium-Ion Battery
1 X Instruction Manual
1 X Communication Cable
1 X Power Negative Cable
1 X Power Positive Cable
4 X Mounting Screws
