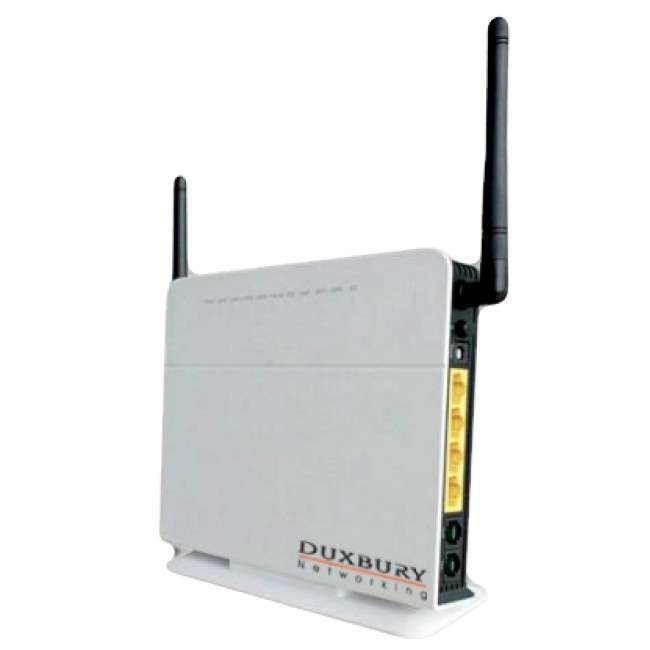

DUX412 Duxbury DUX412 Wireless N Router with built-in ADSL And 3G Modem
-DUX4 12 3G ADSL Wireless VoIP Gateway is a Dual-WAN 3G / ADSL2+ (VPN) firewall router
-3G HSUPA works as a backup WAN, as an automatic fail-over when an ADSL2+ connection breaks
-With one RJ-11 FXS interface, users could enjoy excellent VoIP and T.38 FoIP service over ADSL or 3G
-3G ADSL Wireless Gateway also provides IPsec VPN and PPTP VPN, users can access corporate intranet and transmit sensitive data between branch offices and remote sites any me and anyplace.
-3G ADSL Wireless Vo IP Gateway for WCDMA/HSUPA Networks
Specifications:
3G
WCDMA / HSUPA Quad Band 850 / 900 / 1900 / 2100 MHz
HSUPA DL / UL 7.2 / 5.76 Mbps
HSDPA DL 7.2 Mbps, UL 384 Kbps
UMTS DL / UL 384 / 384 Kbps
GSM / GPRS / EDGE Quad Band 850 / 900 / 1800 / 1900 MHz
GPRS, mul -slot class 10 (4+1, 3+2) up to 86.2 kbps (downlink)
EDGE, mul -slot class 10 (4+1, 3+2) up to 237 kbps (downlink)
DSL
- Interface - One RJ-11
- ADSL Standard - Full-rate ANSI T1.413 Issue 2, G.dmt (ITU G.992.1), G.lite (ITU G.992.2)
- ADSL2 Standard - G.dmt.bis (ITU G.992.3), ADSL2 Annex L (ITU G.992.3 Annex L)
- ADSL2+ Standard - G.dmt.bis plus (ITU-T G.992.5) ADSL2+ Annex M (ITU G.992.5 Annex M)
Wireless LAN
Standards Compliant with IEEE 802.11b/g/n
Opera on Rate Up to 130 Mbps wireless opera rate
Mode Access Point (AP) or AP Bridge (WDS)
WPS Wi-Fi Protected Setup (WPS) for easy setup
Encryp n WEP 64/128 bits
Security WPA, WPA-PSK, WPA2, WPA2-PSK
Mac Filter Black list and white list filter QoS WMM ACS Automa channel sele n Antenna 2T2R MIMO mode (2 transmiter, 2 receiver)
One external antenna with 2dBi gain; one internal antenna with 4dBi gain Transmission Power 802.11b: 16+/-1.5dBm
VoIP
Interface - RJ-11
Number of Ports One FXS port for connecting to analog telephoneProtocol Compliant with SIP standard (RFC3261)
Audio Codec G.711 A/ law, G.729a, G.723.1, G.726_24, G.726_32, GSM_ARM_12k / 10/ 795 / 740 / 670 / 590 / 515 / 475
Telephone Features Call w g, Call forwarding, Call baring, Call blocking, Silence suppression, Voice activity detection (VAD), Comfort noise genera n (CNG), G.168 line echo cancellation, Caller ID Fax T.38 DTMP Supports DTMF tone detection and generation
Dial Plan Flexible dial plan customization

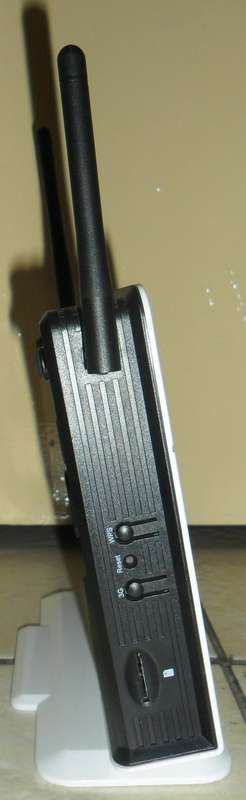

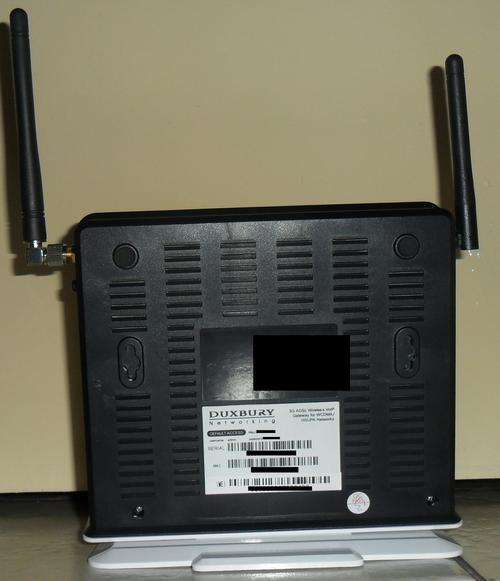

Photos of actual Product as is at the moment:
