IC CHIP : Realtek RTL2832U / R820T
software defined radio / SDR GNU GPS GSM FM Radio
The RTL2832U outputs 8-bit I/Q-samples, and the highest theoretically possible sample-rate is 3.2 MS/s, however, the highest sample-rate without lost samples that has been tested so far is 2.8 MS/s. The frequency range is highly dependent of the used tuner, sticks that use the R820Toffer the best range ( 25MHz - 1700 MHz )
Great for use with SDR# or other Scanning Software, can also be used for ADS-B and AIS tracking.\
NOTE: The stock antenna is only designed for FM/AM Radio and DVB-T/DAB Radio, additional antenna may be required when scanning to other bands.
Item Description:
You can listen to FM audio and digital DAB radio, and record them to WMA audio format into your computer.
Specifications:
Interface: USB 2.0 Standard
Recording format: DVBT TV-DVD(MPEG-2),FM radio/DAB radio-WMA
Converting format:
Video: AVI-MPEG4,ASF-MPEG4,MP4-MPEG4(for ipod),PSP-MPEG4,3GP-MPEG4,AVI-DIVX,AVI-XVID,MOV-MPEG4
Audio: MP3
Input: 50 Ohm IEC(Din) Connector
output: A type usrb male connect
Receiving frequency: DVBT: 48.25 ~863.25 MHZ
FM radio: 87.5~108 MHZ
DAB radio: L-Band-1452960~1490624 KHZ
VHF?74928~ 239200 KHZ
TV system: Full DVB-T and DAB compliant
Punctured codes: 1/2,2/3,3/4,,4/5,5/6 and 7/8
bandwidth: 6/7/8 MHZ auto select for DVB-T
Power supply: Usb bus
Consumed power: ≤1.5W
TV Player software: Newsoft presto! PVR
Dimension / weight: 90(L) X 28(W)X 15(H) / 21G
Cable length: 120cm for portable antenna
System requirements: One available usb 2.0 port
Pentium4 cpu or above
512MB RAM or above
Graphics card supports DirictX 9.0C
1GB free HDD space
CD-ROM for installation
Windows XP/2000, VISTA,Win7,Linux

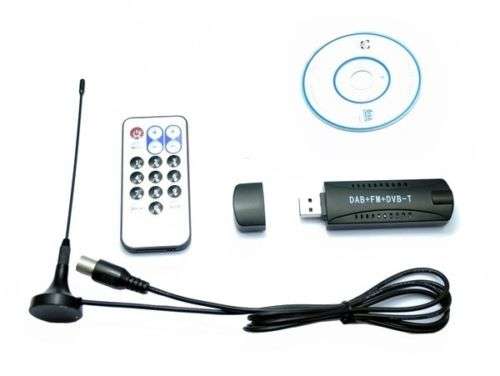

USB DVB-T stick with FM&DAB device,portable antenna,remote controller,quick installation guide,software CD(includes driver,application and manual)
