DVI Extender

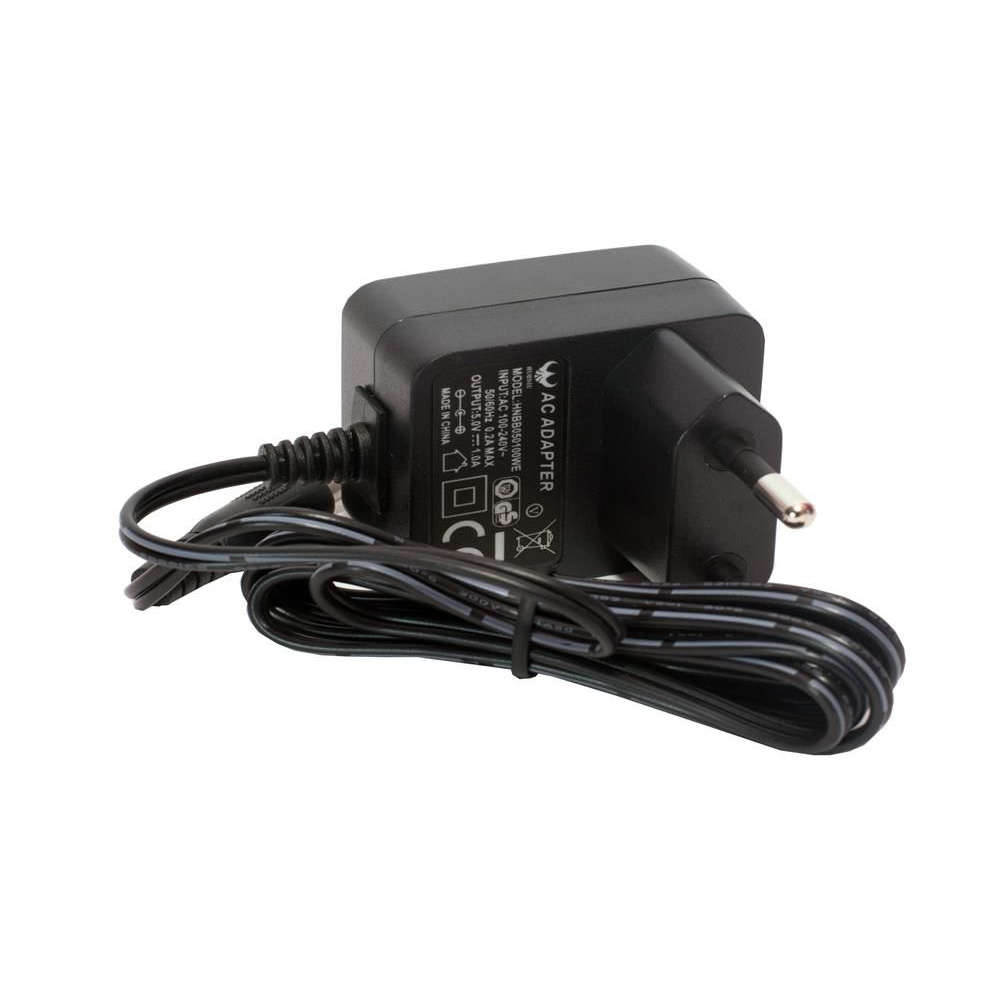

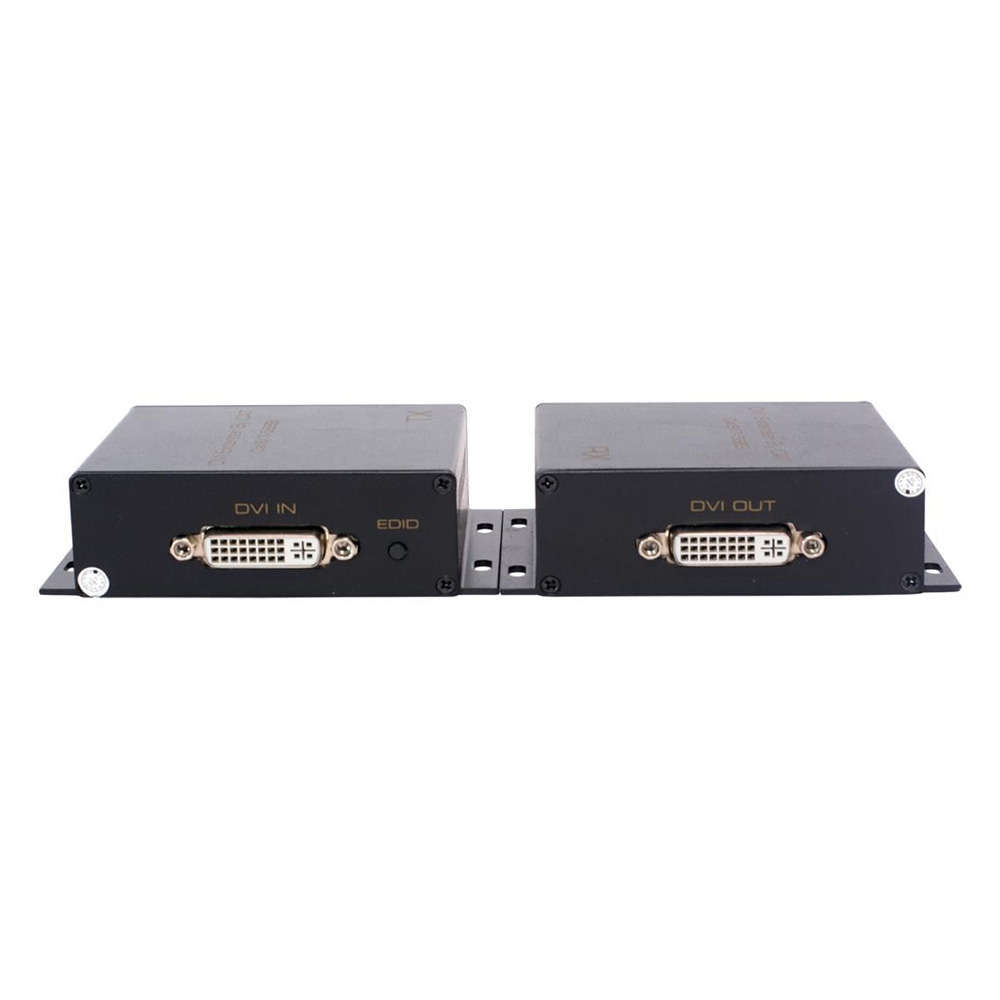

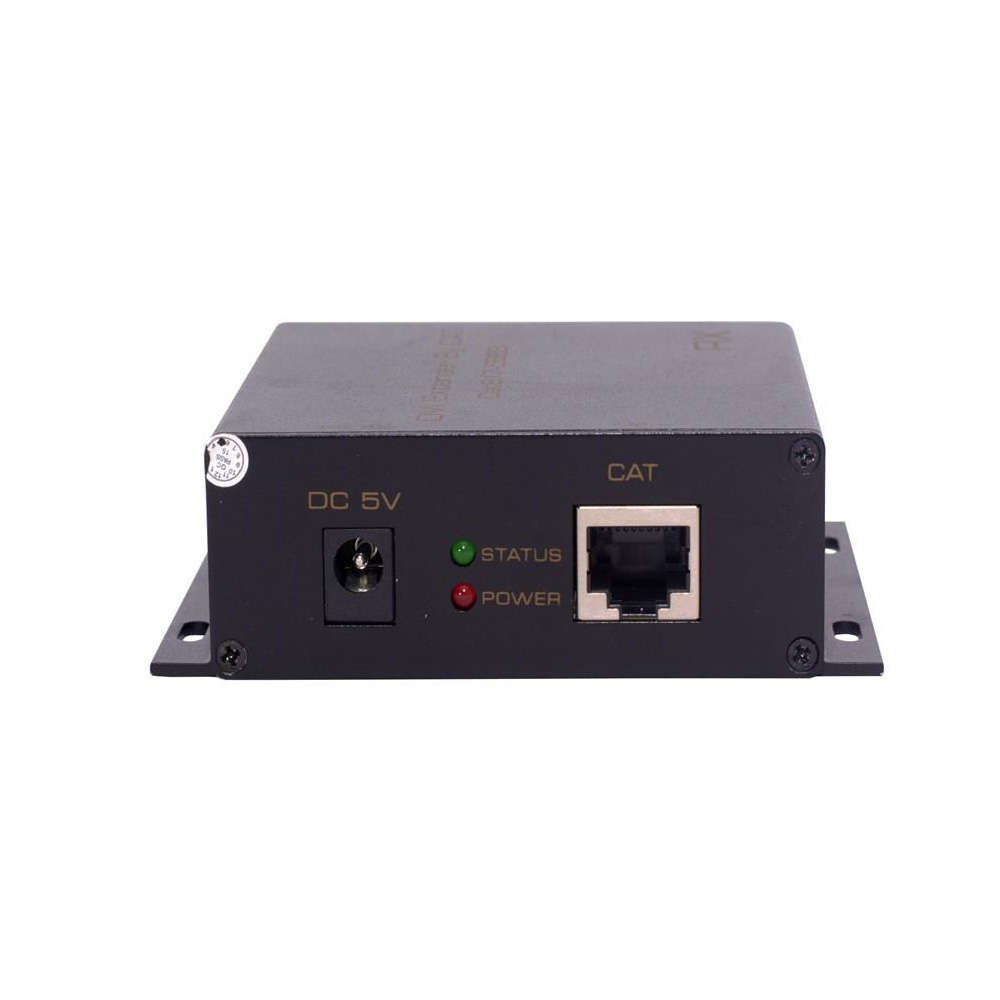

The DVIET01 DVI Extender use Single cat6 or cat7 cables up to 50 metersinsteadof DVI cable to transmit high definition signal, for cutting down cost. Longdistancetransmission of high definition is very difficult because DVI cable is veryexpensiveand infrequent. The Extender is designed to supply for long distancetransmission ofhigh definition signal.FEATURES * Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i * Signal transmission: use one cat6/7 to connect the sender and receiver, and the Ethernet cable can be up to 50m. * Comply to the standard of IEEE-568B * Support up to 1080P * Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i * DVI Input/Output Port: Standard DVI-I head, only supports Digital Video Signal. * LED indication: when power is supplied or device is working, LED relative to is light. * No loss of quality * Installs in minutes * Need DC5V/1A power supplySPECIFICATIONS1. Video Input / Output Port: DVI2. Length of CAT-6 cable between Rx and TX: Up to 50 meters3. DVI Input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i4. DVI Output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i5. Max Bandwidth: 225MHz6. Max Baud Rate: 6.75Gbps7. Input / Output DVI cable distance: 15m Use the standard DVI Cable8. Max working current: 600mA9. Power Adapter: Input: AC (50HZ, 60HZ) 100V-240V / Output: DC5V/1A(RX/TX)10. Operating Temperature range: -10 to +5511. Storage Temperature range: -20 to +6012. Operating Humidity range: 10 to 90%RH (No Condensation)13. Storage Humidity range: 5 to 95%RH (No Condensation)14. Dimension (L x W x H): 79X93.8X28 (mm)(RX/TX)15. Net Weight: 119g(TX) / 118g(RX)Package includes: Power supply,Transmitter unit,Reciever unit
