Multi-Format Versatility

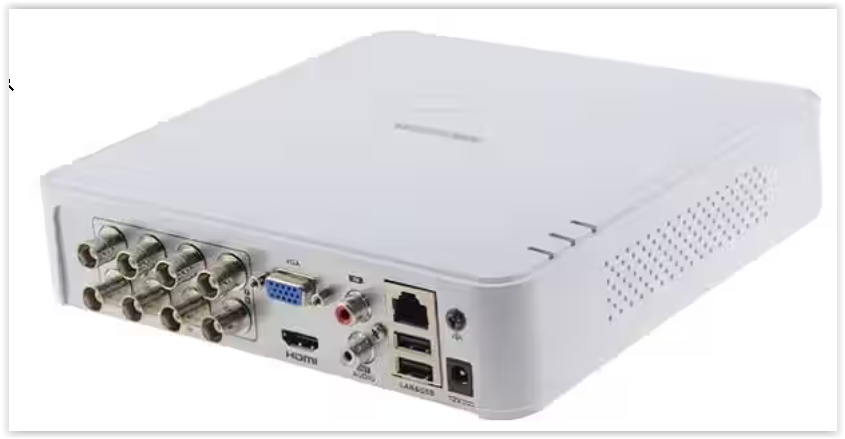

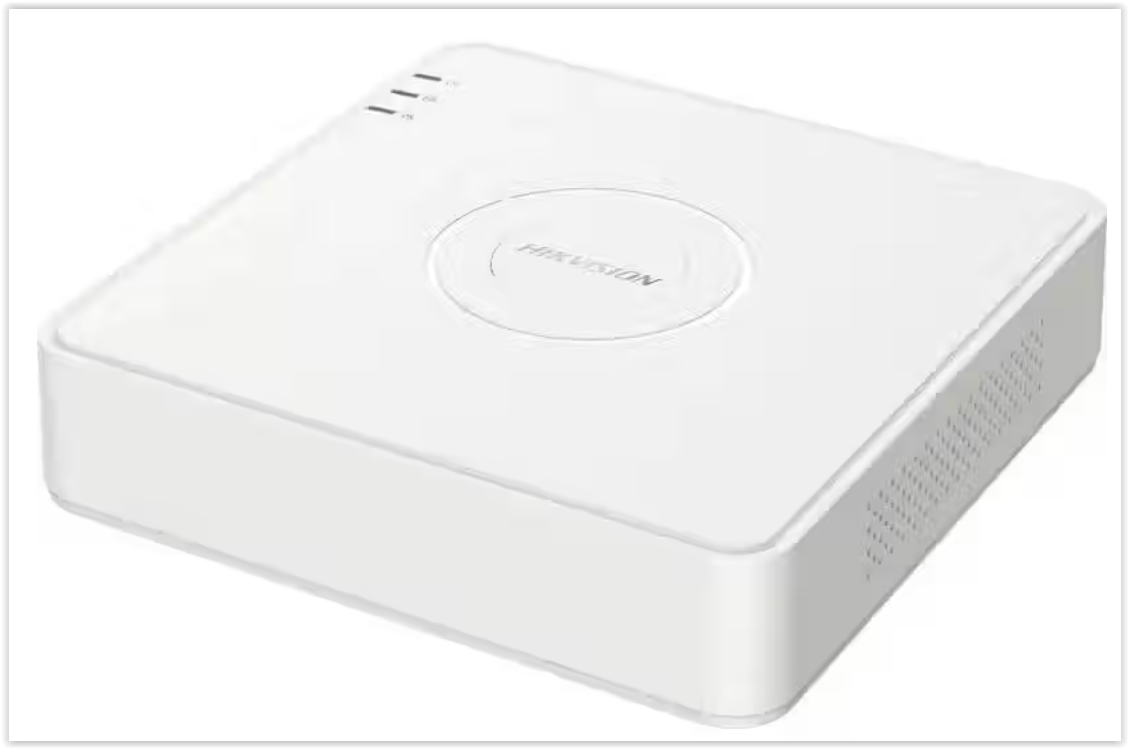

The Hikvision DS-7108HGHI-F1 is a hybrid recorder designed for seamless integration. It features self-adaptive signal input supporting five distinct camera types: HDTVI, AHD, CVI, CVBS, and IP. This allows you to upgrade your security without replacing existing analog cameras. It also supports up to 10 network cameras for expanded digital coverage.
Optimized Storage & Performance
Efficient Compression: Uses H.264+ and H.264 video compression to reduce storage costs and bandwidth by up to 50% while maintaining video quality.
High-Capacity Storage: Includes a SATA interface supporting one hard drive up to 6TB for extensive recording history.
Lite Resolution Recording: Offers full-channel recording at up to 1080p lite resolution, providing sharp visuals for effective monitoring.
Extended Reach: Supports long-distance transmission over UTP and coaxial cables, reaching up to 1200m for 720p signals.
Intelligent Management Features
Simultaneous Outputs: Features HDMI and VGA ports, both outputting at up to 1920 × 1080 resolution for clear monitoring on multiple screens.
Remote Viewing: Access live feeds and manage your system from anywhere via the Hik-Connect app, which includes smart playback to quickly find critical events.
User-Friendly Interface: A modern GUI supports one-key recording, allowing you to start securing your property instantly.
incudes 1 TB SEAGATE Skyhawk Hard Drive
- Video Input and Transmission
- Connectable to HDTVI, AHD and analogue cameras
- Up to 2-ch 1080p IP cameras input
- Long distance transmission over UTP and coaxial cable Compression and Recording
- One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
- Supports real-time 1080p lite of all channels and when enabled, the image effect is similar with 1080p Video Output
- HDMI/VGA output at up to 1920 × 1080 resolution Storage and Playback
- One SATA interface (up to 6 TB capacity per HDD)
- 4/8/16-ch synchronous playback at up to 720p resolution
- Smart search for efficient playback Smart Function
- Supports multiple VCA (Video Content Analytics) events for both analogue and smart IP cameras
- VQD (Video Quality Diagnostics)
- Unlock pattern for device login for the admin and clear-text password available
- GUID file can be exported for password resetting and imported for finding the forgotten password
- Supports PTZ control via Omnicast VMS of Genetec protocol Network & Ethernet Access
- Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management
- One self-adaptive 10/100Mbps network interface
- Output bandwidth limit configurable
