Product details

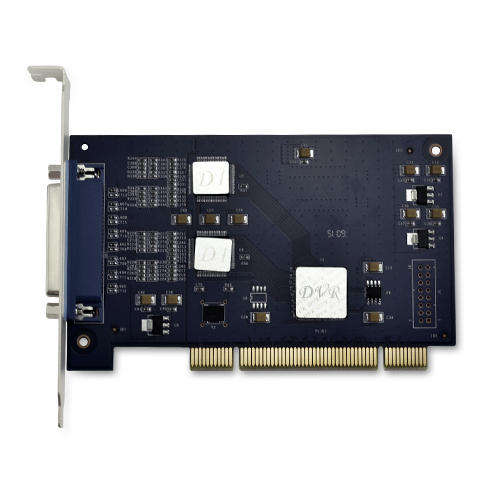

DVR Card - 16 Video and 16 Audio CH (Motion Detection, Alarm)
This DVR Card is easy to install and even easier to use: Simply connect it inside your computer, install the drivers, plug in the security camera through the handy BNC connectors, and you'll be up and running with the ability to record and monitor amazing realtime surveillance footage from up to 16 security cameras. If that's not enough, the DVR card can also capture audio from up to 16 channels so you are sure to have the context to go with the content.
This DVR card also has the ability to save videos and take picture snapshots onto your computer and categorize them for future use. Video recording file size ranges from 600MB/hour to 100MB/hour, so you can go for quality or quantity, whichever fits your needs! Combined with features such as programmable timer recording, alarm triggered recording, motion detection recording and pre-alarm recording, you can be sure that your security system is keeping full alert around your place when you're not present. Along with the camera pan/tilt/zoom functions and an easy to use graphical user interface, you'll have complete and total access straight from your computer.
At a Glance...
- Realtime 16 channel video input, 16 audio input
- 760x576 resolution and 30fps recordings
- Support both PAL and NTSC standards
- Easy to use graphical user interface with Pan/Tilt/Zoom control
- Configurable recording options: Scheduled recording, Alarm triggered recording, Motion detection recording
Manufacturer Specifications
- Product Description: DVR card for computers
- Input: 16 Channel Video (BNC), 16 Channel Sound (RCA)
- Compression mode: 25fps (PAL)/30fps (NTSC), MPEG-4 compression mode (AVI)
- Video Resolution Display: 760x576 (PAL), 720x480 (NTSC)
- Picture Resolution: 352x288 (CRF)
- Software:
Windows DVR software included (or use your own software solution)
Language: English
Supported Operating Systems: Windows 2000/2003/XP/Vista (32-bit)/Windows 7 (32-bit) - Power Source: PCI Card Slot
- Dimensions: 150mm X 95mm x 15mm (PCI standard height)
Product Notes
- Please consult with an experienced technician for installation and setup of this product
- Minimum 100MB/hour recordings, maximum 600MB/hour
- Alarm Triggered Recording
- Event tracking through DVR log
- Motion Detection Recording
- Scheduled Recording and Manual Recording
- Remote Monitoring with support for LAN and Dial Up transmission
- Fully compatible with P/T/Z control protocols of industry mainstream KALATEL, PELCO, PHILIPS, UNIVISION, ULTRAK, VICON encoders
Package Contents
- DVR Card
- Software/Manual/Driver CD
- Box with ESD protective bag
- Video/audio connector cable
Frequently Asked Questions
- Can I use this with my Windows 7 or Vista computer?
Yes, the software is compatible with Windows 7 (32-bit) and Vista (32-bit). The card itself is a PCI card that will work with most computer systems. - Does this work with NTSC or PAL cameras?
It works with both types of security cameras. - What does PTZ stand for?
Pan, tilt, and zoom. - Why does the message box "Init xxx failed" popup when I try to start the program?
Check that the DVR card is properly fixed in the PCI slot and the device driver is properly installed. - Why is the video window purple when program starts?
