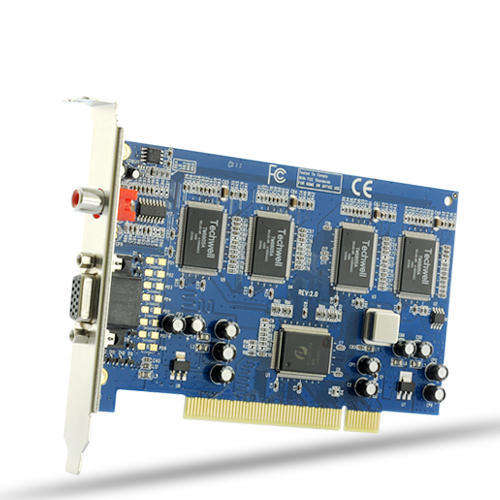

DVR Card - 8 Video and 4 Audio CH (Motion Detection, Alarm, TV)
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
At a Glance...
Realtime 8 channel video input, 4 audio input, TV out760x576 resolution and 30fps recordingsSupport both PAL and NTSC standardsEasy to use graphical user interface with Pan/Tilt/Zoom controlConfigurable recording options: Scheduled recording, Alarm triggered recording, Motion detection recording
Specifications
Product Description: DVR card for computersInput: 8 Channel Video (BNC), 4 Channel Sound (RCA), TV OUTCompression mode: 25fps (PAL)/30fps (NTSC), MPEG-4 compression mode (AVI)Video Resolution Display: 760x576 (PAL), 720x480 (NTSC)Picture Resolution: 352x288 (CRF)Software:
Windows DVR software included (or use your own software solution)
Language: English
Supported Operating Systems: Windows 2000/2003/XP/Vista (32-bit)/Windows 7 (32-bit)Power Source: PCI Card SlotDimensions: 155mm X 95mm x 15mm (PCI standard height)
Product Notes
Please consult with an experienced technician for installation and setup of this productMinimum 100MB/hour recordings, maximum 600MB/hour.Alarm Triggered RecordingEvent tracking through DVR logMotion Detection RecordingScheduled Recording and Manual RecordingRemote Monitoring with support for LAN and Dial Up transmission
Package Contents
DVR CardSoftware/Manual/Driver CDBox with ESD protective bagVideo/audio connector cable
Frequently Asked Questions
Can I use this with my Windows 7 or Vista computer?
Yes, the software is compatible with Windows 7 (32-bit) and Vista (32-bit). The card itself is a PCI card that will work with most computer systems.
Why is this DVR card so cheap? Most of the ones here in Germany cost at least three times as much!
We are giving you a factory-direct OEM card, you are not paying for a middleman or brand mark-up.
Does this work with NTSC or PAL cameras?
It works with both types of security cameras.
What does PTZ stand for?
Pan, tilt, and zoom.
Why does the message box "Init xxx failed" popup when I try to start the program?
Check that the DVR card is properly fixed in the PCI slot and the device driver is properly installed.
Why is the video window purple when program starts?
Be sure your graphics card driver is properly installed and upgrade to the latest driver version.
