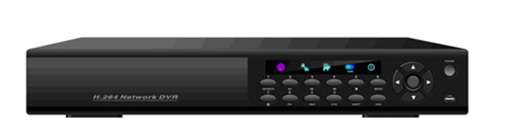

DVR Digital video recorder (no HDD) ABQ-16VN 16 channel - NEW!!! BULK PRICES AVAILABLE!!!
FEATURES:
1. Support standard RTSP 3G mobile phone monitoring;
2. It has both features of digital video recorder(DVR) and digital video server(DVS). It can work stand-alone or be used to build a powerful network, widely used in surveillance fields;
3. True full-duplex function, video, playback can work at the same time;
4. Under the CIF Video resolution, PAL(352x288)total recording resourses is 100 frames and each channel is 25 frames(adjustable) independent hardware compression, NTSC(352x240)total recording resourses is 120 frames and each channel is 30 frames(adjustable) independent hardware compression, adopt H. 264 video compression, Support constant bit rate and variable bit rate compression, support variable frame rate compression.;
5. The System adopt graphical users operation interface, and support USB mouse, panel and remote operation.;
6. Max support 2× 1500GB SATA HDD;
7. Timing recording, manual recording, motion detection recording, alarm recording, any ways for choice;
8. Playback according to the channel number, recording type and recording time to search, support playback fast, slow, single frame, forward, backward fuctions etc;
9. Support USB2.0 high-speed port, USB1.1 port, provide the video files backup, support USB flash disk and USB hard disk.
10. Support preview of single channel and multi-channels display;
11. Support images blocked alarm processing;
12. Can setup multiple users type for permissions. Except an administrator, through "user management authority" can setup multiple users type, it increase the flexibility of the users permissions safety management.
13. RJ45 network, support remote network monitoring, remote video playback, remote video back-up;
14. Support single speech intercom or two-way voice broadcast through remote PC and network DVR;
15. Support single speech intercom or two-way voice broadcast through remote PC and network DVR.
16. English/Simplified Chinese/Traditional Chinese system menu.
Model TV-7004D
Compression format H.264
Video input Composite:1.0Vp-p/75O,BNC×4
output Composite:1.0Vp-p/75O,BNC×1 VGA×1
Resolution Display PAL:720x576(D1);NTSC:720x480(D1)
record PAL:352x288(CIF);NTSC:352x240(CIF)
Frame Rate Display PAL:100FPS NTSC:120 FPS
record PAL:100 FPS NTSC:120FPS
Audio input RCA×4
output RCA×1
Network Interface 1 RJ45 10/100MB,TCP/IP, PPPoE ,DHCP,DDNS
Item may differ from advert
Weight = 2.8Kg
