Specifications:
MODEL: DY207
Testing Voltage: AC 230V±10% or AC 110V±10%
Frequency: 50-60Hz
Contact Voltage Limit: < AC 50V (relative to ground)
Overload Voltage Protection: AC/DC 300V
Working Temperature: 0°C~40°C
Working Humidity: 80%
RCD test: 30mA
PE Fault Detection: yes
Reaction Limit: < AC 50V (relative to ground)

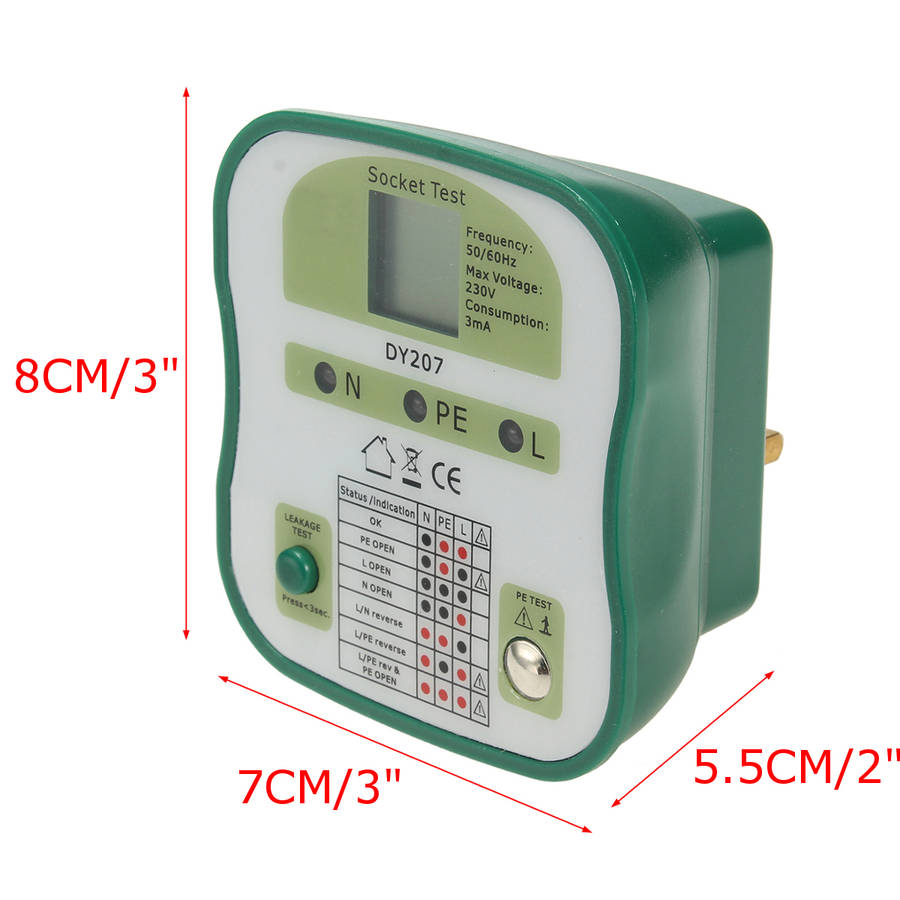

Product Size:
EU version: 72 * 78 * 80mm
UK,US,CN version: 72 * 78 * 55mm
Product Net Weight: 40g
Standard individual packing: blister card
Measurement of Standard Carton:
EU version: 795*525*245mm (0.1023 CBM)
UK,US,CN version: 790*407*240mm (0.07 CBM)
Features:
- Leakage, PE, L and N connection, OPEN test
- Swift and efficient testing of RCDs by 30mA

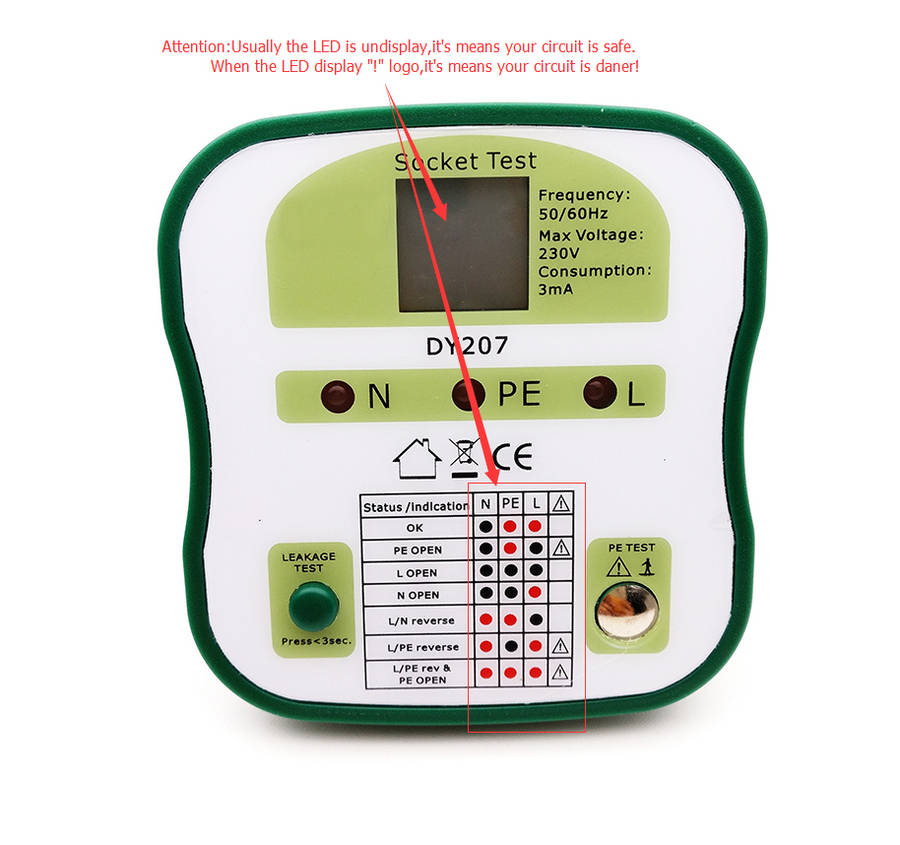

- Definite indication of socket wiring
- PE fault detection
- Easy and safe, clear indication on LCD
Package Included:
1 x Electrical Socket Tester
