Dyness 8KVA Hybrid Inverter (Single Phase) LV + 2x 5.12kWh BX51100 Lithium Ion Batteries – WiFi...

8KVA Dyness Hybrid Inverter (Single Phase) + 2x 5.12kWh Dyness Lithium Ion Battery BX51100

Dyness Products

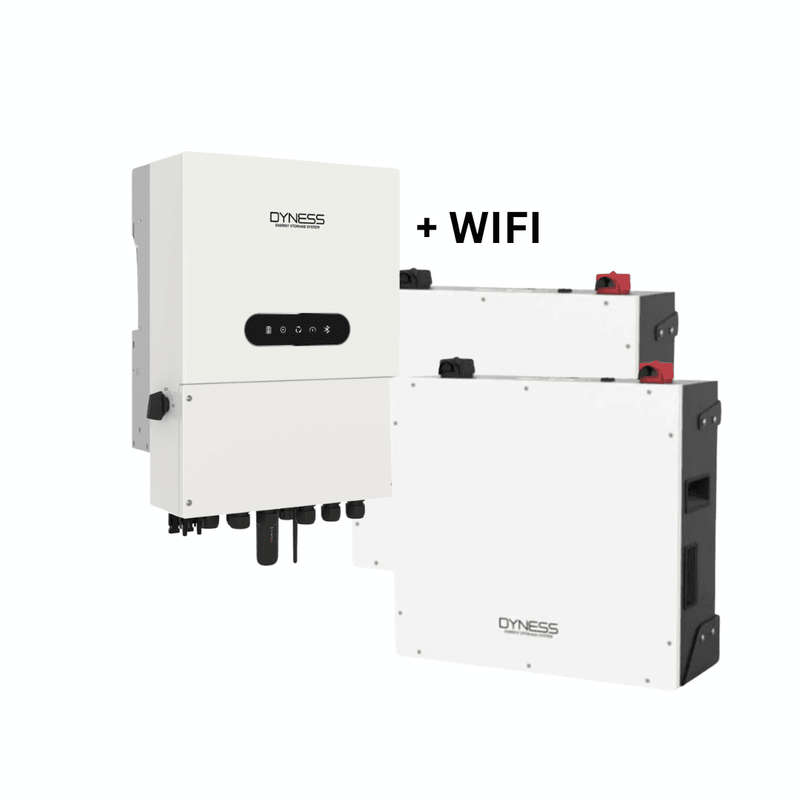

Dyness 8KVA Hybrid Inverter (Single Phase) LV + 2x 5.12kWh BX51100 Lithium Ion Batteries WiFi / UPS

Product Description:

The Dyness 8kVA Single Phase LV Hybrid Inverter is designed for residential hybrid solar systems, providing a reliable power solution with automatic UPS switching, peak shaving capabilities, and generator connectivity. Paired with two Dyness 5.12kWh BX51100 Lithium Ion Batteries, this system ensures efficient power storage and backup support during grid failures.

Key Features:

• 8kVA Hybrid Inverter Provides reliable power output for home energy systems.
• WiFi Connectivity Enables remote monitoring and system control.
• Automatic UPS Switching (<4ms) Ensures seamless backup power in case of outages.
• Peak Shaving Control Optimizes power use in both self-consumption and generator mode.
• High Charge/Discharge Current Supports up to 190A for fast charging and discharging.
• Generator Auto-Control Easily integrates with backup generators.
• Expandable System Supports up to 48kW in parallel (8.0K model).
• High Surge Power Provides 200% surge power for 10 seconds.

Technical Specifications:

Inverter Specifications:

• Model: Dyness 8kVA Hybrid Inverter
• Phase: Single-phase input & output
• Recommended Max PV Power: 12.8kW
• Max DC Input Voltage: 600V
• Rated Voltage: 300V
• Start-Up Voltage: 90 520V
• Max Input Current: 32A/20A
• Max Short Circuit Current: 36A/30A

Battery System:

• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Nominal Battery Energy: 5.12kWh (each battery)
• Total Battery Energy (Combo): 10.24kWh
• Nominal Capacity: 100Ah
• Nominal Voltage: 51.2V
• Operating Voltage Range: 44.8V 57.6V
• Charge & Discharge Rate: 0.5C Recommended, 1C Maximum
• Max Continuous Charge Current: 75A
• Max Continuous Discharge Current: 100A
• Peak Charge/Discharge Current: 110A (15s)
• Depth of Discharge (DOD): 90%
• Cycle Life: 6000 Cycles
• Parallel Expansion: Up to 50 units

General & Environmental:

• Inverter Dimensions (WHD): 405mm x 560mm x 215mm
• Inverter Weight: 27kg
• Battery Dimensions (WDH): 558mm x 545mm x 150mm
• Battery Weight: 54kg per unit
• Ingress Protection (Inverter): IP66
• Ingress Protection (Battery): IP20
• Operating Temperature Range: Charging: 055°C | Discharging: -2055°C
• Communication: CAN/RS485/RS232
• Certifications & Safety: UN38.3, CE-EMC, IEC62619, CEI-021

Included in the Package:

• 1x Dyness 8kVA Hybrid Inverter
• 2x Dyness BX51100 5.12kWh Lithium Ion Batteries

Warranty Information:

• 10-Year Manufacturer's Warranty

Why Choose the Dyness 8kVA Hybrid Inverter + Battery Combo?

This high-performance hybrid inverter and battery combo is perfect for off-grid and hybrid applications, delivering reliable power with fast switching UPS functionality, peak shaving, and seamless generator integration. With expandability up to 48kW, it's an excellent choice for both residential and small commercial energy systems.
