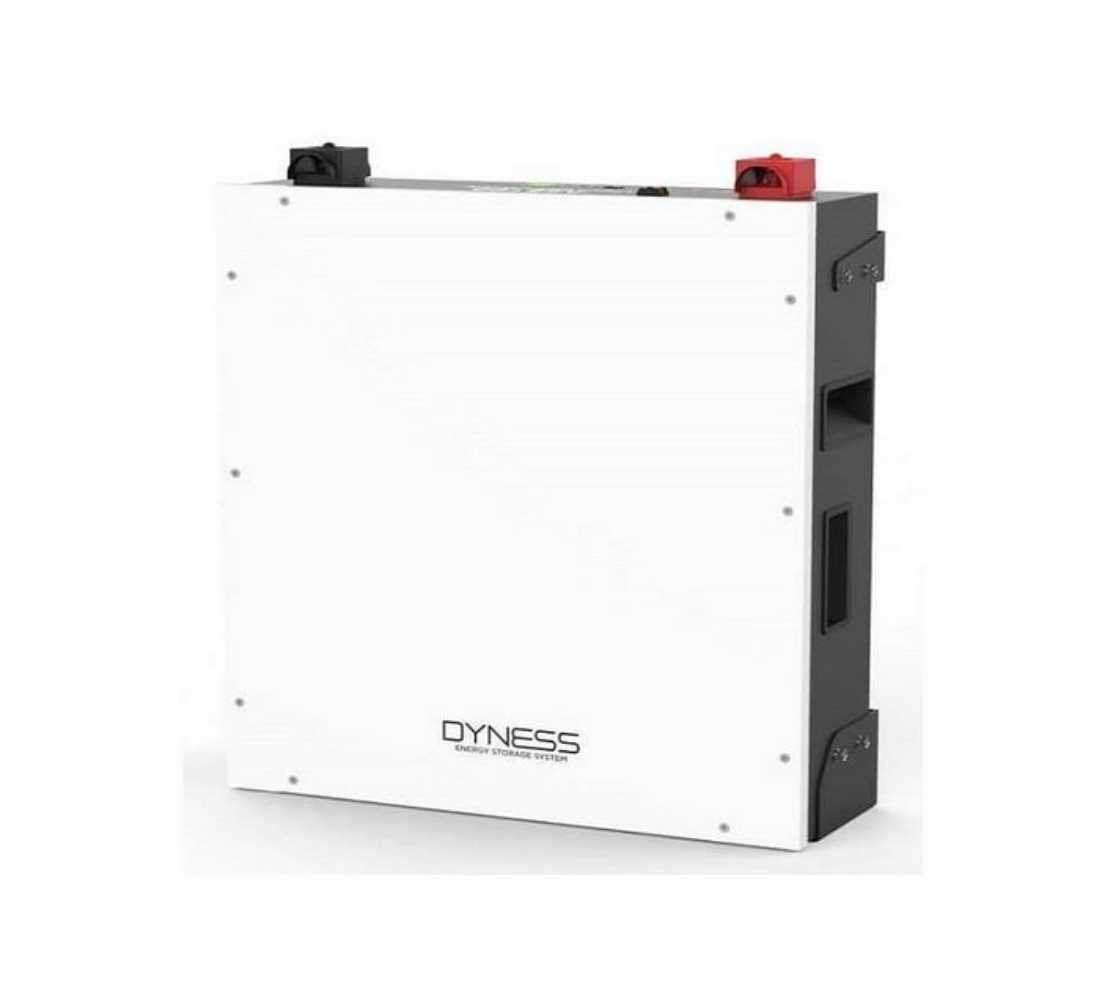

A48100
This 4,8kWh LFP module supports both floor- and wall-mounted installations. It is designed with OTA function for remote update and monitoring. Up to 30 modules can be connected in parallel, meeting the needs of more users and enabling flexible expansion
A48100Battery TypeLiFePO4
Nominal Battery Energy4.8 kWh
Nominal Capacity100Ah
Nominal Voltage48V
Operating Voltage42 ~ 54V
Recommended C Rate0.5C
Recommended Charge/Discharge Current50A
Max. Power Charge/Discharge Current75A
Peak Power Charge/Discharge Current100A (15s)
Depth of Discharge (DOD)90%
Net Weight45kg
Dimension[W*D*H]504*597*155 mm
Charging Temp. Range0~55
Discharging Temp. Range-20~55
CommunicationCAN/RS485/RS232
N.B. Battery is 2 years old, not compatible with the other batteries installed. Balance of 10 year warranty with Dyness
