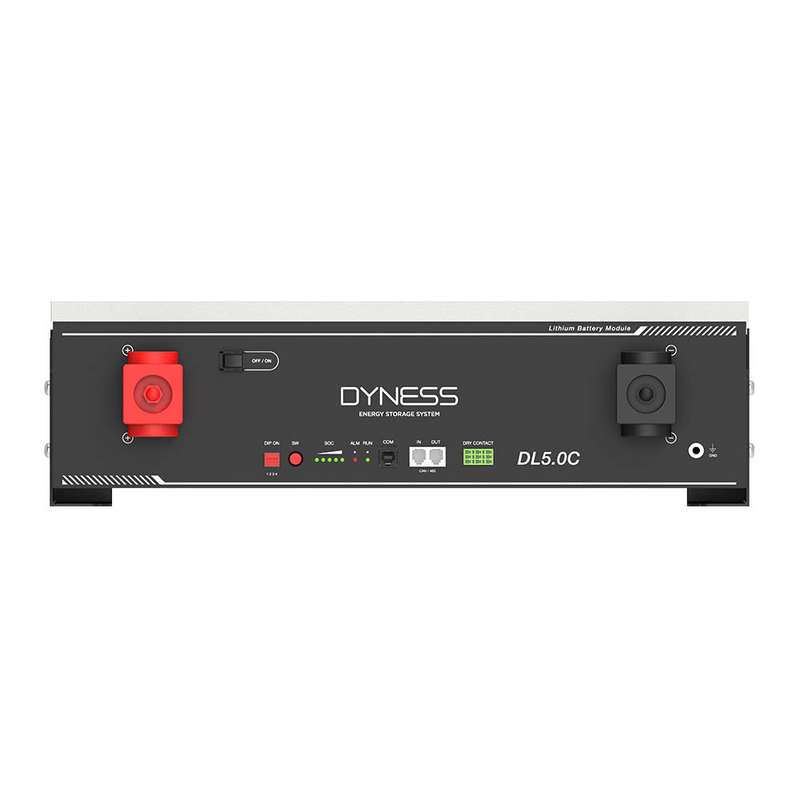

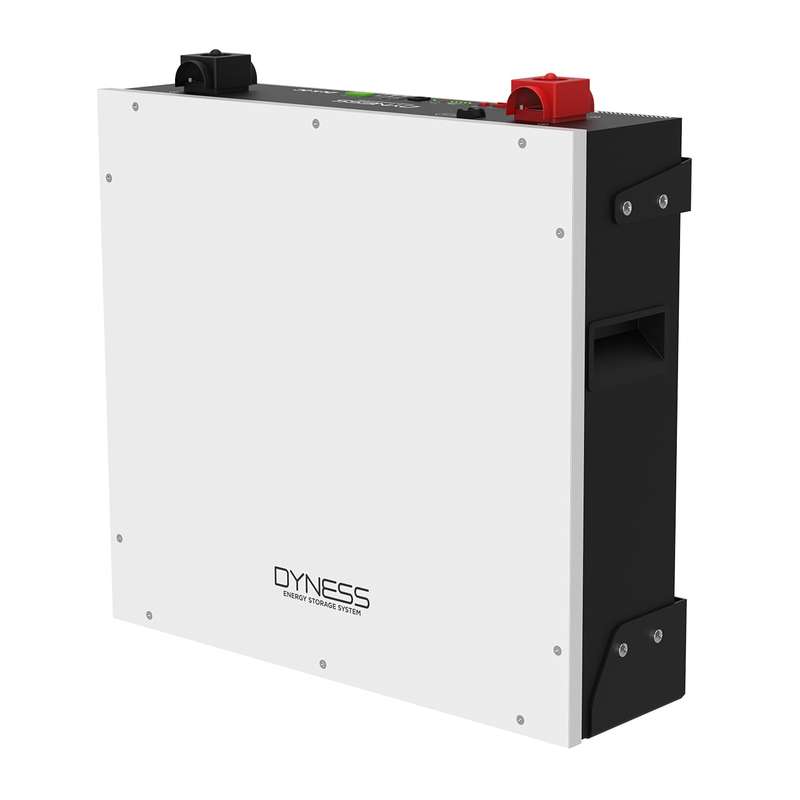

Dyness DL5.0C battery 5.12kWh

The Dyness DL5.0C Battery features an economical design and is tailor-made for residential & light commercial use.  This LFP battery module supports remote update and APP monitoring and provides multiple installation options- wall mounted, floor-standing and stack, it is scalable from 5.12-256kWh (max, 50 modules in parallel), providing various energy storage options to meet different requirements.

Features and Advantages

APP Monitoring (Optional)

Real-time monitoring

Remote upgrade available

Modular Design

Flexible expansion

Wide compatibility

Matching with leading inverter brands

Various Mounting Methods

Wall-mounted, floor-standing, and stack

High Safety LFP

Cell-level monitoring and balancing

Model: DL5.0C

Battery Type LiFePO4

Nominal Battery Energy 5.12kWh

Nominal Capacity 100Ah

Nominal Voltage 51.2V

Operating Voltage 44.8-57.6V

Recommended C Rate 0.5C

Recommended Charge/Discharge Current 50A

Max. Power Charge Current 75A

Max. Power Discharge Current 100A

Peak Power Charge/Discharge Current 110A(15s)

Depth of Discharge 90%

Net Weight 54kg

Dimension[W*D*H] 558*545*150mm

Charging Temp. Range 0-55°C

Discharging Temp, Range -20-55°C

Communication CAN/RS485/RS232

Cycle Life!" 26000 Cycles

Estimated Protection Level IP20

Expansion Up to 50 units in parallel

Pros: Can be used in both off-grid and hybrid setups, compact design

Certification & Safety Standard UN38.3/CE-EMC/IEC62619/CEI-021

Compatible Inverters SMA/Victron/Ingeteam/Delios/Goodwe/Solis /Deye/SAJ/Voltronic/Sungrow, etc.
