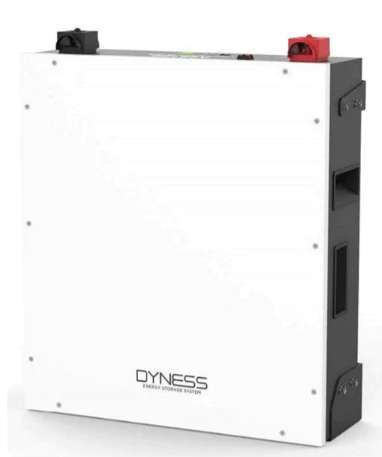

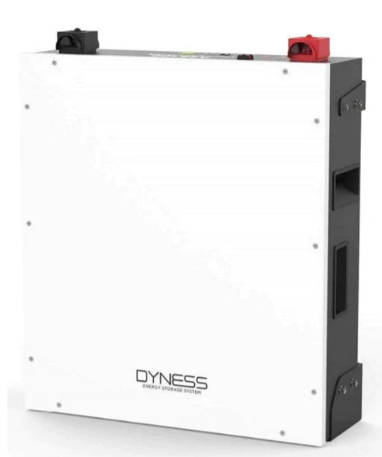

DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial applications. This LFP battery module supports remote update and APP monitoring, and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.
Key Features:
Battery Type: LiFePO4
Nominal Battery Energy: 5.12 kWh
Nominal Capacity: 100Ah
Nominal Voltage: 51.2V
Operating Voltage: 44.8 ~ 57.6V
Recommended Charge & Discharge C: Rate 0.5C
Maximum Discharge C rate: 1C
Recommended Charge/Discharge Current: 50A
Max Continuous Charge Current: 75A
Max Continuous Discharge Current: 100A
Peak Power Charge/Discharge Current: 110A (15s)
Depth of Discharge (DOD): 90%
Net Weight: 54 kg
Dimension[W*D*H]: 558*545*150 mm
Charging Temp. Range: 0~55
Discharging Temp. Range: -20~55
Communication: CAN/RS485/RS232
Cycle Life[1]: 6000 Cycles
Protection Level lP20
Expansion: up to 50 units in parallel
Pros: Can be used in both off-grid and hybrid setups, compact design
Certification & Safety Standard UN38.3/CE-EMC/IEC62619/CEI-021 all undergoing
[1]Test conditions: 0.2C Charging/Discharging, @25, 95% DOD
7 Years Warranty
