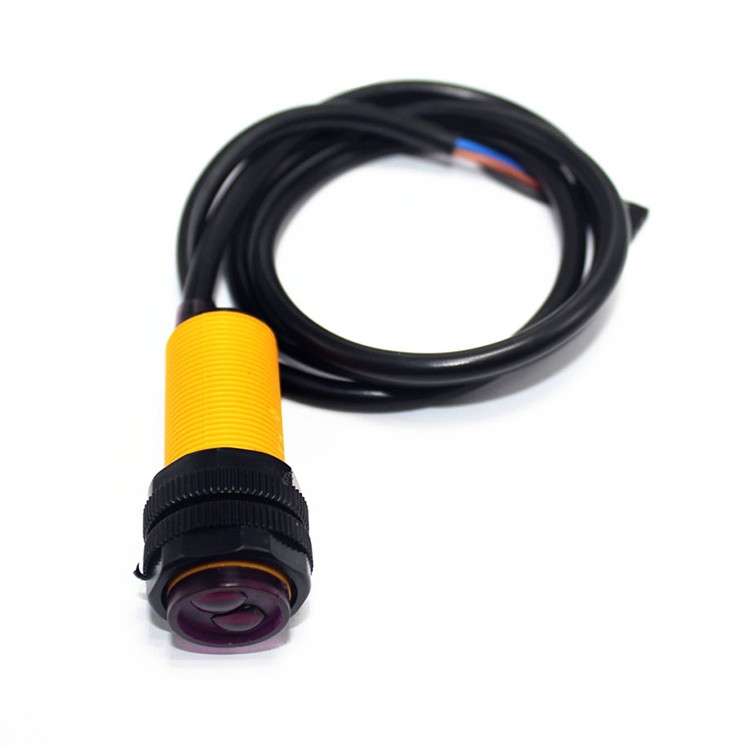

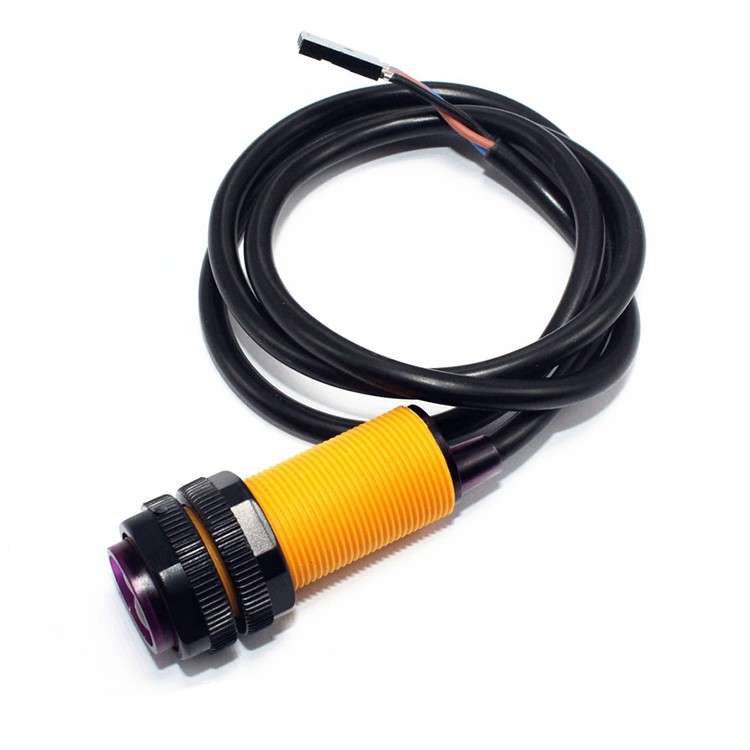

The E18-D80NK Infrared Photoelectric Sensor Module is a high-performance obstacle avoidance solution designed for robotics, automation systems, and interactive electronics projects. Using advanced infrared reflection technology, this module ensures fast, accurate, and stable detection of objects, making it a reliable choice for engineers, hobbyists, and educators alike.
Built with a longer detection range and adjustable sensitivity, the E18-D80NK provides superior coverage and flexibility for applications where precision is essential. Its compact cylindrical design with convenient mounting holes allows for simple installation in a wide range of environments.
Extended Detection Range — Long-distance obstacle detection with high stability.
Adjustable Sensitivity — Fine-tune detection distance to match your project requirements.
High-Speed Response — Rapid output switching for real-time performance.
Integrated Indicator LEDs — Power and detection status at a glance.
Wide Compatibility — Easily integrates with Arduino, Raspberry Pi, ESP32, and other microcontrollers.
Model: E18-D80NK (Longer Type)
Detection Method: Infrared reflection
Detection Range: Up to 80cm (adjustable)
Operating Voltage: 3.3V — 5V DC
Output Type: Digital signal
Output Format: High or Low logic level
Response Time: 2ms
Detection Angle: Approx. 15
Indicator LED: Power and obstacle detection status
Material: Durable ABS housing with threaded cylindrical body
Mounting: M18 threaded design with included nuts for secure installation
Operating Temperature: -25C to +55C
Connection Interface: 3-wire (VCC, GND, OUT)
Dimensions: 18mm diameter x 50mm length (sensor body)
Weight: ~15g
Applications: Robotics, conveyor systems, automation, object counting, interactive installations
The E18-D80NK Infrared Photoelectric Obstacle Avoidance Sensor combines reliability, flexibility, and ease of use in one compact unit. Whether you're building an autonomous robot, automating a production line, or creating interactive projects, this sensor module delivers the accuracy and performance you need.
