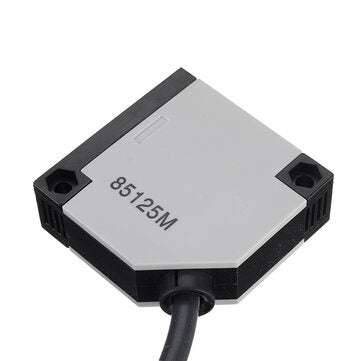

E3JK-R4M2 Retro-Reflective Dark-ON Pre-Wired Type Photoelectric Sensor Switch with E39-R1 Reflector

Features:
- Small General-purpose Photoelectric Sensor with Built-in Power Supply - Built-in amplifier accepts wide supply voltage range. - Slim, space-saving construction measures only 50x 50 x 17.4 mm. - Relay outputs with long life expectancy and high switching capacity . - Polarized retroreflective type available for glossy or shiny object detection.
Specifications:
DC Relay Output Type Model:Dark-ON mode Polarized light beam: No Sensing distance: 4m ± 10% Power supply voltage:12 to 24V DC±10% 50/60 Hz Current consumption: 2 W max. Control output: Relay output SPDT, (cos= 1) 5 V DC, 10 mA min Response time (ON OFF): 30ms max Detection of target: Opaque objects Turn on delay: 1.5ms Light source: Infrared light 660nm Indicators: Light (red) Allow impulse and vibration: B a 30g, T a 11ms, F a 55Hz, A a 1mm Sensitivity: Fixed Detection range adjustment: Sensitivity regulator Ambient temperature range: Operating:-25a to 55a,Storage:-30a to 70a(with no icing or condensation) Ambient humidity range: Operating:45% to 85%(with no condensation),Storage:35% to 95%(with no condensation) Insulation resistance: DC500 between the charging part and the shell Material: Shell: Aluminum die-cast ABS Detection surface (lens): PMMA Protection construction: IP67 (IEC specification)
Package Included:

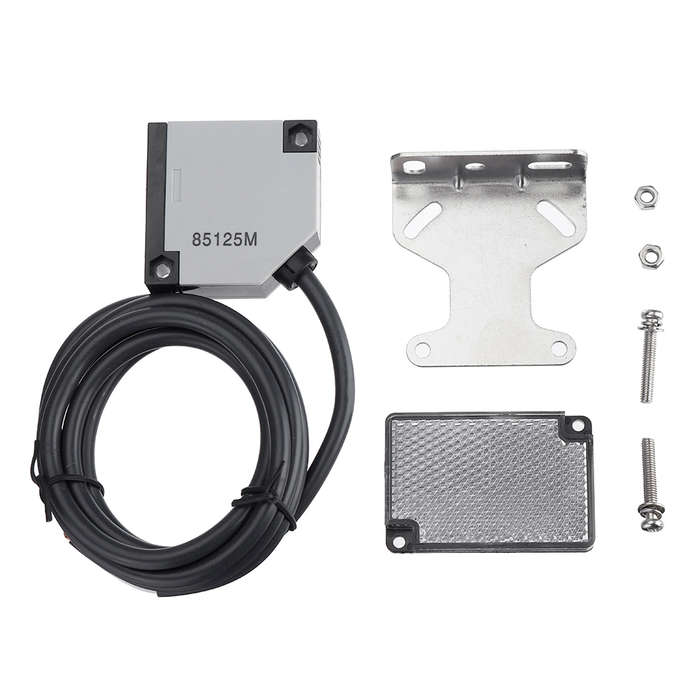

1 X E3JK-R4M2 (DC type)Photoelectric Sensor Switch 1 x E39-R1 Reflector 1 x E39-L40 Mounting Bracket(provided with two M4 x 20 screws)
