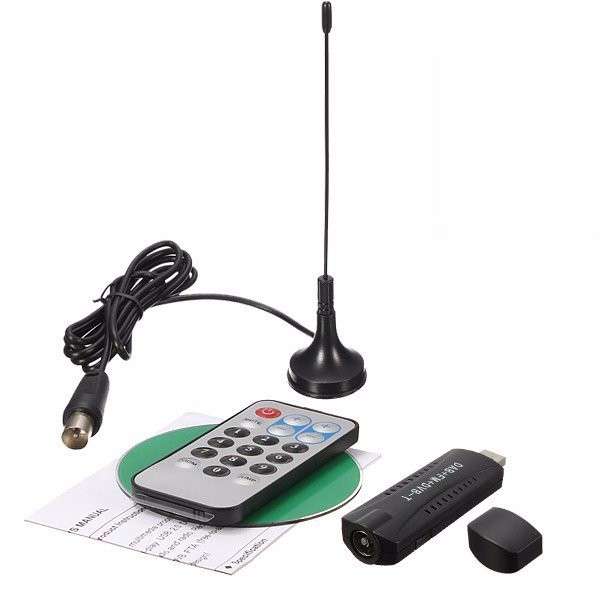

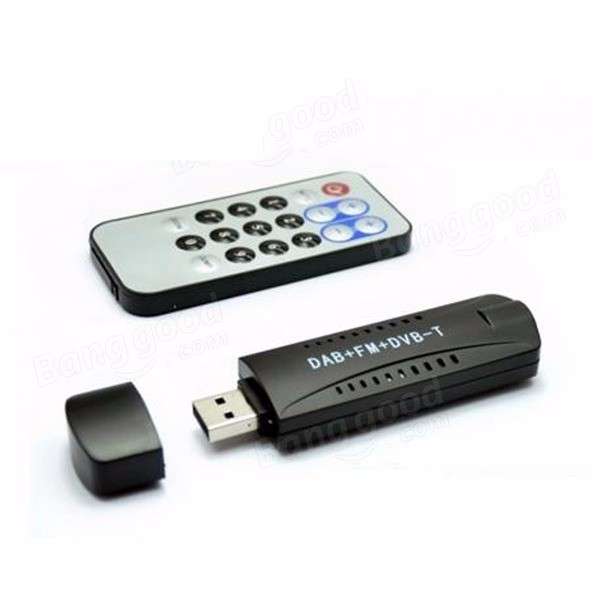

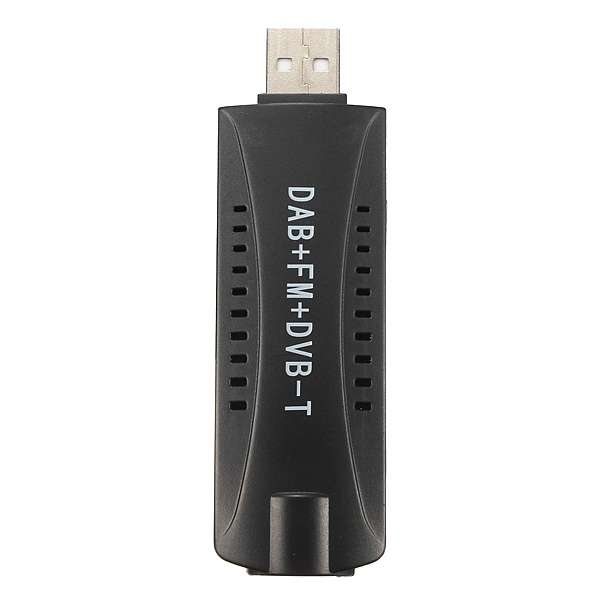

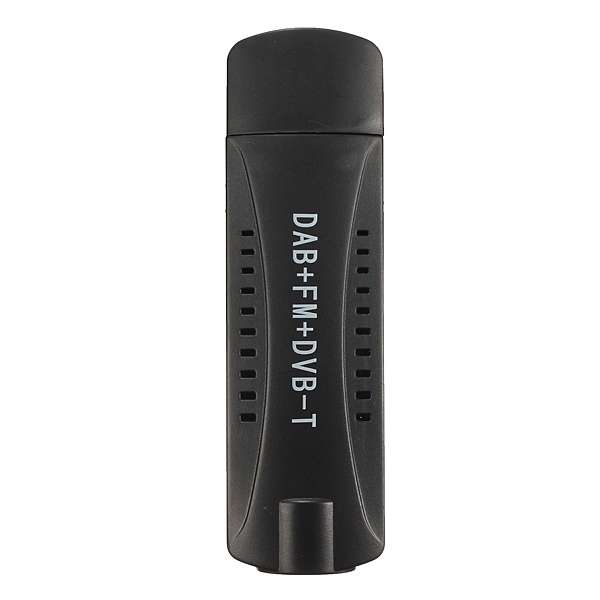

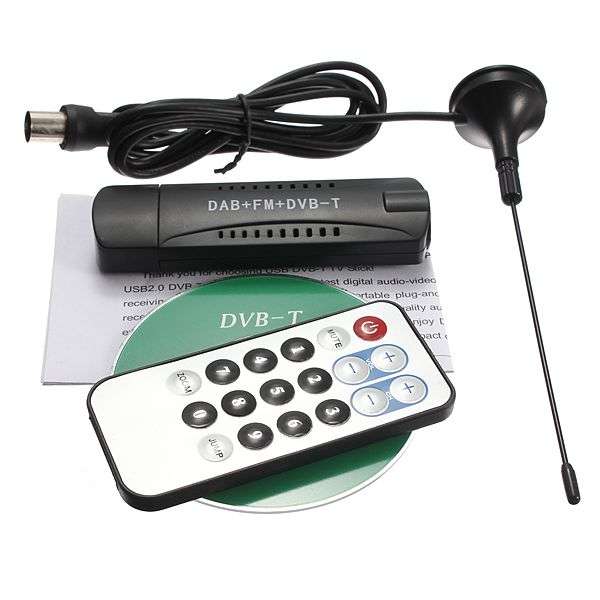

E4000 USB DVB-T RTL-SDR Realtek RTL2832U R820T DVB-T Tuner Receiver
New
Indicative market price: R599
R319.11
47% OFF
Closed
18 Mar 17 10:07
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Product information
Condition:
New
Location:
South Africa
Product code:
935440
Bob Shop ID:
268460551
Specifications:
1. Input terminal: 10 Ohm
2. Input frequency: 174MHz~230MHz;470MHz~862MHz
3. SDR frequency: 24MHz~1700MHz
4. SDR bandwidth: 3.2MHz(max)
5. Carrier type: 2K or 8K
6. Bandwidth: 6Mhz,7Mhz,8Mhz
7. Guard interval: 1/4,1/8,1/16,1/32
8. Code rate FEC: 1/2,2/3,3/4,5/6,7/8
9. Modulation: QPSK,16QAM,64QAM
10. Maximum power: 2W
11. System OS Support: Windows XP/Vista/Windows 7/8
12. Color: Black
13. Dimension: 90*25*16mm

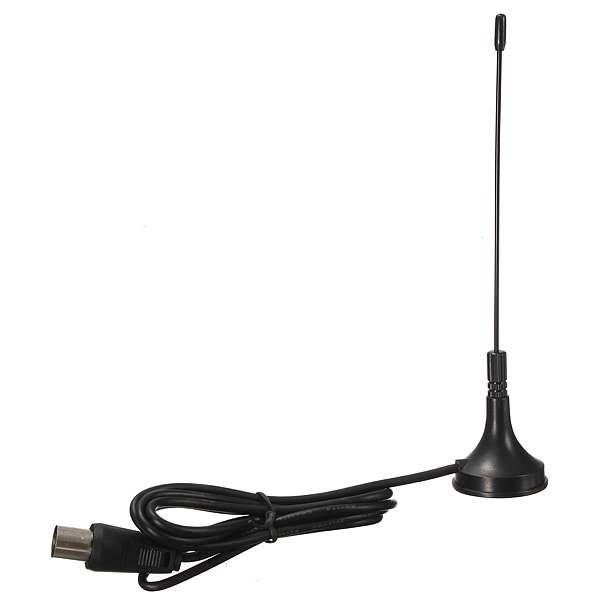

14. Cable length of antenna: 115cm
Descriptions:
1.Sticks with this combination (RTL2832 + R820T) are relatively new on the market. The main difference to all the other supported tuners so far is that it uses a Low-IF (3.57 MHz) architecture instead of Zero-IF. That means the tuner is only connected to the In-Phase ADC input, and the internal down converter of the RTL2832 is generating the complex samples. This has the benefit of having no DC offset spike in the middle of the spectrum. So far the tuner driver comes straight from the kernel driver that Realtek supplies, and setting gain manually is not supported yet, although functions for that seem to exist. There is still is a lot that needs to be done, the best thing most likely would be to completely rewrite the driver, or at least clean it up dramatically. Initializing the tuner takes way too long at the moment, since the driver produces a lot of I2C traffic, most of it being redundant as it seems.
2.The driver showed that the PLL of this stick can achieve lock up to 1766 MHz, and indeed both ADS-B at 1090 MHz and L-Band DAB at 1463 MHz, as well as GMR at 1556 MHz can be received just fine with the R820T. Also, the PLL could lock again at 1850 MHz to 1860 MHz, and the reception of a GSM 1800 BTS at 1854 MHz worked as well.
3.Some initial comparisons between the E4000 and R820T seem to hint at the R820T being a bit more sensitive, especially visible in the Tetra screen shots.
4.Given that the supply of E4000-based sticks is dwindling, this item is new tuner that has the potential of becoming a good replacement, and staying for a while on the market.
5.Work in Albania, Algeria, Andorra, Australia, Austria, Bahrain, Belarus, Belgium, Bermuda, Brunei, Croatia, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Ghana, Hungary, Italy, Kenya, Latvia, Lithuania, Luxembourg, Malaysia, Malta, Mauritius, Morocco, Myanmar, Namibia, Netherlands, New Zealand, Norway, Panama, Poland, Portugal, Republic of Macedonia, Russia, Saudi Arabia, Singapore, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Taiwan, Trinidad and Tobago, Tunisia, Turkey, Ukraine, United Kingdom, Uruguay, Vietnam
6.It doesn't support US, Canada, Japan, Singapore users due to different digital standard
7.The RTL2832U outputs 8-bit I/Q-samples, and the highest theoretically possible sample-rate is 3.2 MS/s, however, the highest sample-rate without lost samples that has been tested so far is 2.8 MS/s. The frequency range is highly dependent of the used tuner, dongles that use the Rafael Micro's R820T offer possible range 25 - 1700 MHz
Features:
1. Support DVB-T digital TV
2. Watch live SDTV & HDTV and listen to digital radio
3. Support MEC
4. Support Still Image Snapshot
5. Auto&manually scan all available channels
1. Input terminal: 10 Ohm
2. Input frequency: 174MHz~230MHz;470MHz~862MHz
3. SDR frequency: 24MHz~1700MHz
4. SDR bandwidth: 3.2MHz(max)
5. Carrier type: 2K or 8K
6. Bandwidth: 6Mhz,7Mhz,8Mhz
7. Guard interval: 1/4,1/8,1/16,1/32
8. Code rate FEC: 1/2,2/3,3/4,5/6,7/8
9. Modulation: QPSK,16QAM,64QAM
10. Maximum power: 2W
11. System OS Support: Windows XP/Vista/Windows 7/8
12. Color: Black
13. Dimension: 90*25*16mm
14. Cable length of antenna: 115cm
Descriptions:
1.Sticks with this combination (RTL2832 + R820T) are relatively new on the market. The main difference to all the other supported tuners so far is that it uses a Low-IF (3.57 MHz) architecture instead of Zero-IF. That means the tuner is only connected to the In-Phase ADC input, and the internal down converter of the RTL2832 is generating the complex samples. This has the benefit of having no DC offset spike in the middle of the spectrum. So far the tuner driver comes straight from the kernel driver that Realtek supplies, and setting gain manually is not supported yet, although functions for that seem to exist. There is still is a lot that needs to be done, the best thing most likely would be to completely rewrite the driver, or at least clean it up dramatically. Initializing the tuner takes way too long at the moment, since the driver produces a lot of I2C traffic, most of it being redundant as it seems.
2.The driver showed that the PLL of this stick can achieve lock up to 1766 MHz, and indeed both ADS-B at 1090 MHz and L-Band DAB at 1463 MHz, as well as GMR at 1556 MHz can be received just fine with the R820T. Also, the PLL could lock again at 1850 MHz to 1860 MHz, and the reception of a GSM 1800 BTS at 1854 MHz worked as well.
3.Some initial comparisons between the E4000 and R820T seem to hint at the R820T being a bit more sensitive, especially visible in the Tetra screen shots.
4.Given that the supply of E4000-based sticks is dwindling, this item is new tuner that has the potential of becoming a good replacement, and staying for a while on the market.
5.Work in Albania, Algeria, Andorra, Australia, Austria, Bahrain, Belarus, Belgium, Bermuda, Brunei, Croatia, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Ghana, Hungary, Italy, Kenya, Latvia, Lithuania, Luxembourg, Malaysia, Malta, Mauritius, Morocco, Myanmar, Namibia, Netherlands, New Zealand, Norway, Panama, Poland, Portugal, Republic of Macedonia, Russia, Saudi Arabia, Singapore, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Taiwan, Trinidad and Tobago, Tunisia, Turkey, Ukraine, United Kingdom, Uruguay, Vietnam
6.It doesn't support US, Canada, Japan, Singapore users due to different digital standard
7.The RTL2832U outputs 8-bit I/Q-samples, and the highest theoretically possible sample-rate is 3.2 MS/s, however, the highest sample-rate without lost samples that has been tested so far is 2.8 MS/s. The frequency range is highly dependent of the used tuner, dongles that use the Rafael Micro's R820T offer possible range 25 - 1700 MHz
Features:
1. Support DVB-T digital TV
2. Watch live SDTV & HDTV and listen to digital radio
3. Support MEC
4. Support Still Image Snapshot
5. Auto&manually scan all available channels
