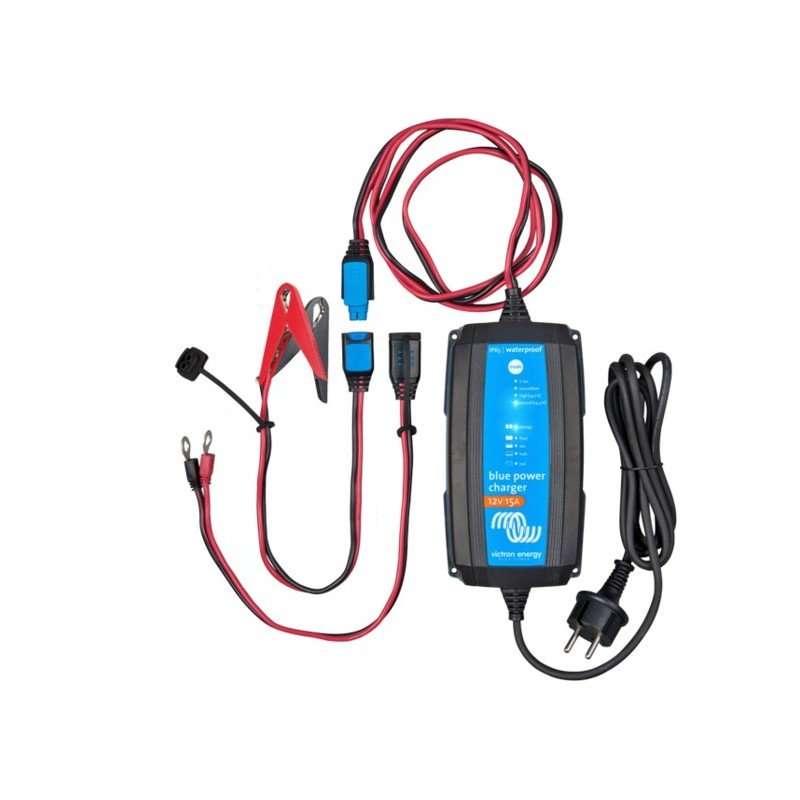

EA056 Victron Energy - Blue Smart Intelligent Battery Charger 12 Volts 15 Amp IP65

Input voltage range: 100 130 VAC

Charge current, normal mode: 15 A

Charge current, NIGHT or LOW: 15 A

Efficiency: 93%

No load power consumption: 0.5 W

Frequency: 45 65 Hz

Number of outputs: 1

Charge voltage 'absorption' Normal: 14,4V High: 14,7V Li-ion: 14,2V

Charge voltage 'float' Normal: 13,8V High: 13,8V Li-ion: 13,5V

Charge voltage 'storage' Normal: 13,2V High: 13,2V Li-ion: 13,5V

Charge algorithm 6-stage adaptive

Can be used as power supply Yes

Protection Battery reverse polarity (fuse) Output short circuit Over temperature

Operating temp. range -20 to +50°C

Humidity (non-condensing) Max 98%

Bluetooth Frequency: 2402-2480MHz / Power: -4dBm

Material & Colour Aluminium (blue RAL 5012)
Battery connection Screw terminals 13 mm² / AWG6
230 V AC connection Cable of 1,5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ)
Protection category IP22

STANDARDS
Safety EN 60335-1, EN 60335-2-29
Emission EN 55014-1, EN 61000-6-3, EN 61000-3-2
Immunity EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
Automotive E4-10R
