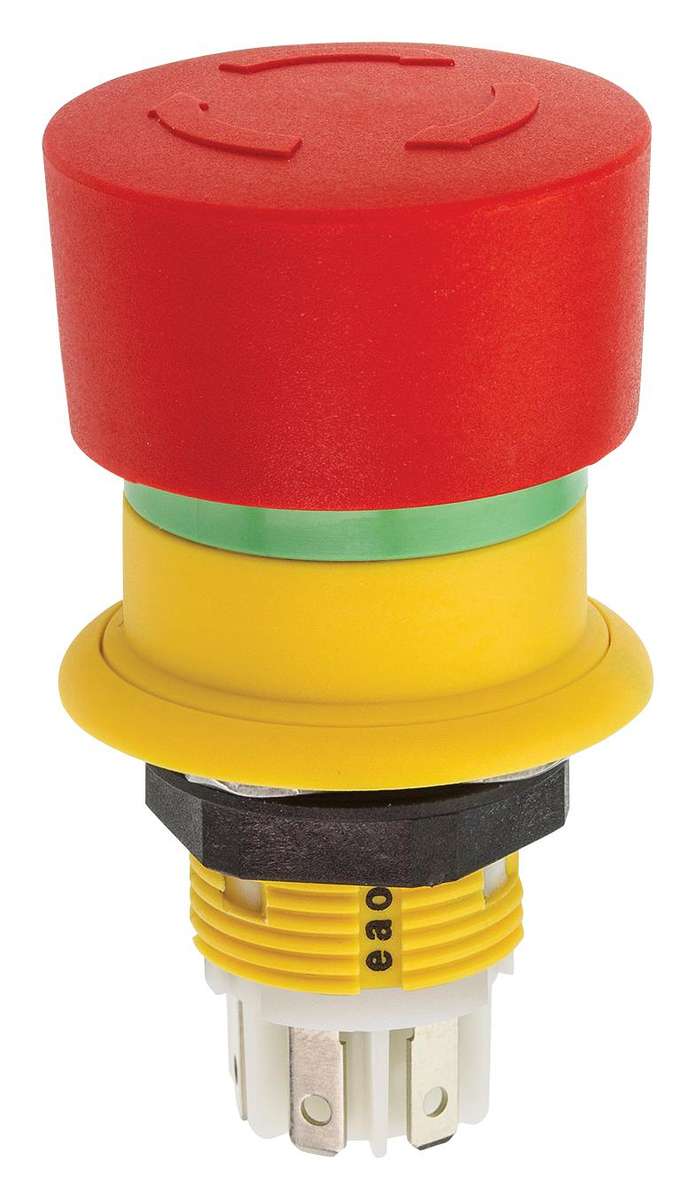

Eao (61-6441.4067) Emergency Stop Switch, 3PST-NC, Turn to Release

Emergency Stop Switch, 3PST-NC, Turn to Release, Quick Connect, Solder, 200 mA,50 VProduct InformationContact Configuration: 3PST-NCSwitch Operation: Turn to ReleaseSwitch Terminals: Quick Connect, SolderContact Current Max: 200mAContact Voltage AC Nom: 50VContact Voltage DC Nom: -Pushbutton Actuator Style: RoundIP Rating: IP67, IP69KProduct Range: 61Product OverviewThe 61-6441.4067 from EAO is an emergency-stop switch compact with foolproof ENIEC 60947-5-5 and Ø 27mm front dimension. The 61 series E-Stop compact switch isa robust, reliable, low back panel depth switch ideal for use in space criticalapplications. The robust mono-block design has a fool proof, trigger actionmechanism to break the electrical contacts and a green indication ring to showwhether the switch is actuated. The Series 61 E-Stop compact satisfies the needsof use, through rigorous material selection and a robust build quality thatmeets IP69K, the highest degree of protection against dirt and dust ingress.3 NC contact;Maintained switch action;2.8mm x 0.5mm solder terminal, Ø16.2mm mounting cut-out;Twist to unlock clockwise, position indication ring green, rated impulsewithstand voltage is 0.5KV;Rated operating voltage is 50VAC/VDC, rated insulation voltage is 250V;Insulation resistance is 2Mohm between the open contacts, 7Mohm towards panel(DIN IEC 60512-3-1);Electrical life time is >= 20000 switching cycles, overvoltage category II (ENIEC 60947-1);IP67 and IP69K front protection;Plastic mushroom head lens and actuator housing material, metal (silverpalladium) contact material;Operating temperature range from -25°C to + 55°C;
