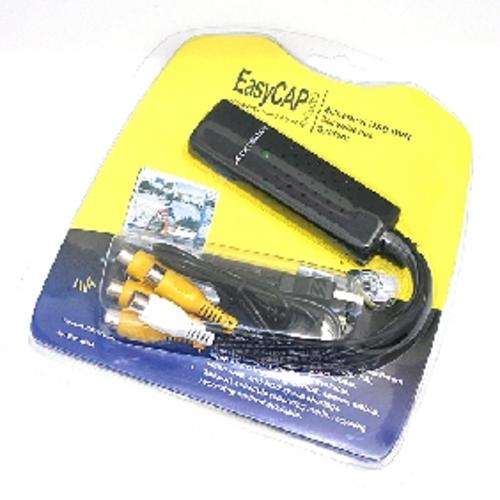

EASY CAP 4 CHANNEL USB DVR

Easy CAP002 4 CHANNEL USB 2.0 DVR is the safety system of ideal design for home/office/shop guard or baby care purpose; Users can do their own security by easy installation.
It is the cost-effective solution to replace commercial VCR tape recorder, which also supports stable digitize video record and easy manages the recorded data via index of date and time. Thats it, makes your life more safety and easier.

Features:

-4 channels video input in one card, the maximum display/recording rate is 25 fps under PAL format, and 30 fps under NTSC format.
-1 channel audio input.
-4 screen display modes are available.
-Multi alarm triggering method: sensor, motion, video loss, and HDD space shortage.
-Support schedule recording mode, recycling recording method available.
-MPEG4 video compression format. 5 level recording quality options available, and the recording frame rate range from 1 to 30 fps adjustable for each channel.
-Support multi-channel playback, searching by time/date and recording events, images can be zoom / capture / save / print / backup.
-Support remote surveillance and PTZ control through web browser, support dynamic domain name.
-Configurable auto reboot function for preventing PC deadlock.

System Requirements:

-Windows 2000/XP or higher
-CPU: Intel P4 Celeron processor 1.7GHz or higher
-Motherboard : Intel 845/865/915 series
-HDD : 80G or higher
-RAM : 256M memory or higher
-VGA : GeForce2,GeForce4,FX5200,ATI Rage128
-Microsoft DirectX 9.0C
-Free USB 2.0 port
-Configurable auto reboot function for preventing PC deadlock

Specifications:

-Dimension: 88mm x 28mm x 18mm
-USB 2.0 Video Resolution Input: up to 720x480 at 30 fps for NTSC
-720 x 576 at 25 fps for PAL
-USB1.1 Video Resolution Input: up to 320x240 at 30 fps for NTSC
-320x288 at 25 fps video for PAL
-Video output: 4 S-video input and RCA type composite video input
-Video system supported: NTSC, PAL and SECAM
-Video recording format: DV, MPEG-1, MPEG-2, MPEG-4 with DivX codec, SVCD/VCD, DVD, AVI, WMV
-Power Consumption: 5V DC, 250mA(max) through USB port

Packing  include:

-1 x EasyCAP USB 2.0 Video adapter with Audio
-1 x USB Cable
-1 x English User Manual
-1 x CD-driver
