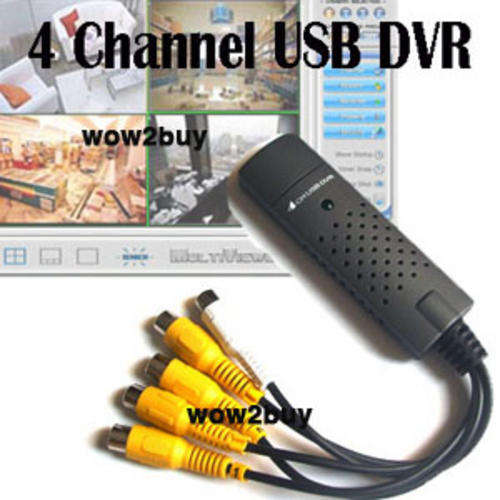

Easycap 4 Channel USB DVR

• Green LED for Power indicator
• Dimension: 88mm x 28mm x 18mm
• Full-Screen Video Resolution Input:
  With USB 2.0 connection: the output resolution will be full-screen DVD video resolution up to 720x480 at 30 fps for NTSC and 720 x 576 at 25 fps for PAL;
  With USB 1.1 connection: the video resolution reaches up to 320x240 at 30 fps for NTSC and 320x288 at 25 fps video for PAL.
• Video input: 4S-video input and RCA type composite video input
• Video system supported: NTSC, PAL and SECAM
• Supports all video capturing/ recording formats including DV, MPEG-1, MPEG-2, MPEG-4 with DivX codec, SVCD/VCD, DVD, AVI, WMV
• High MPEG bit rate adjustment up to 10000K bps
• Supports color adjustment including brightness, contrast, saturation, hue and sharpness control
• USB powered operation. No power adapter needed
• Power Consumption: 5VDC, 250mA(max) through USB port


Features:

• 4 channels video input in one card, the maximum display/recording rate is 25fps under PAL format, and 30 fps under NTSC format
• 4 screen display mode
• Multi alarm triggering method: sensor, motion, video loss, and HDD space shortage
• Support schedule recording mode, recycling recording method available
• MPEG4 video compression format. 5 level recording quality options available. and the recording frame rate range from 1 to 30 fps adjustable for each channel
• Support 1 channel playback, searching by time/date and recording events, images can be Zoom/capture/save/print/backup
• Configurable auto reboot function for preventing PC deadlock

System Requirement:

• Windows 2000/XP, Intel P4 CPU, 1700MHZ
• HDD: 80G, RAM: 256M memory
• Microsoft DirectX 9.0C
• 1 x Free USB 2.0 Port and Audio Card


 Package Included:

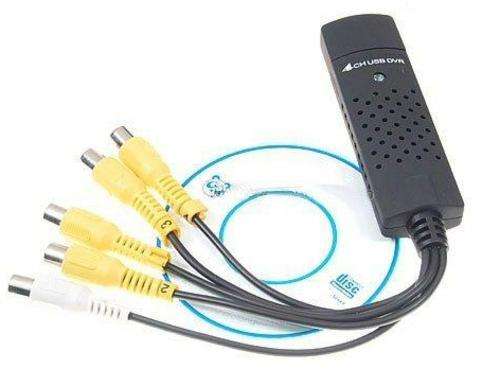

• 1 x Easycap 4 Channel USB 2.0 DVR Capture

• 1 x Software CD (Driver& Application)
