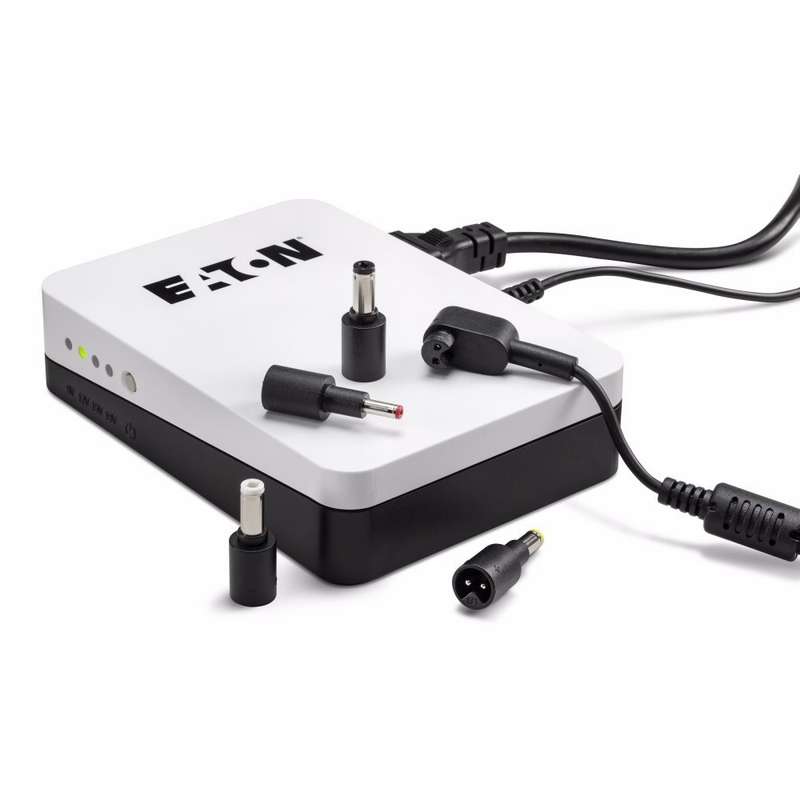

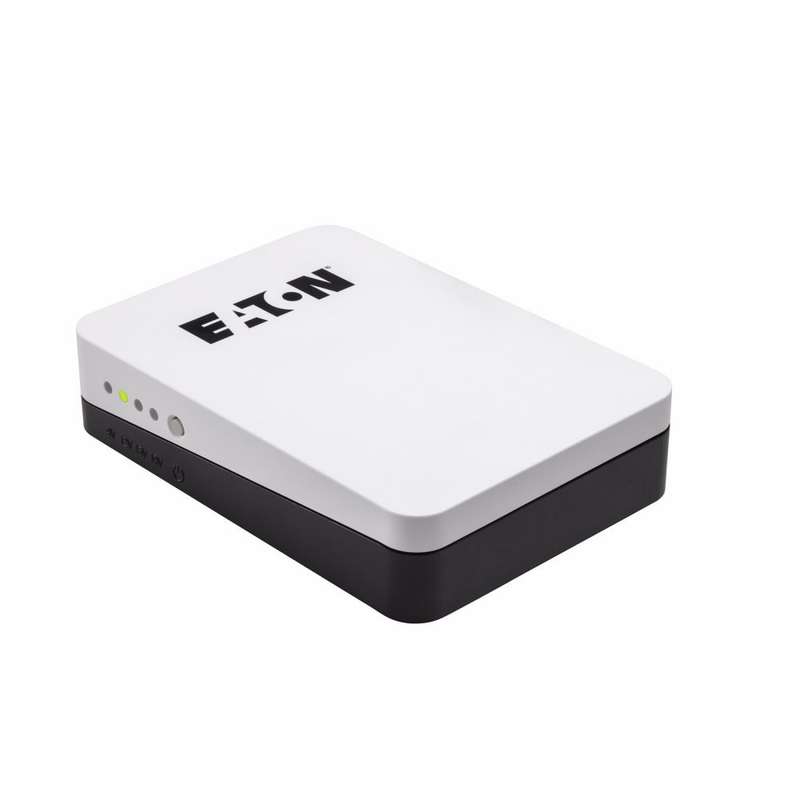

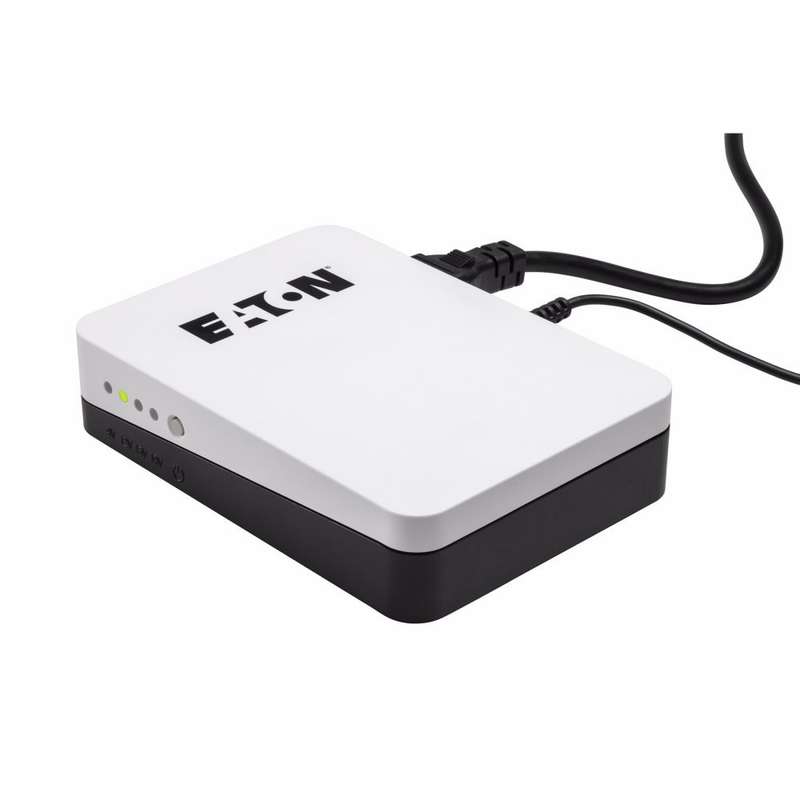

Eaton 3S Mini UPS 36W
Product Specifications:
Technology: Line-Interactive
Power Rating: 36W
Input voltage range: 90-264V AC
Output voltage: 9V/3A - 12V/3A - 15V/2,4A - 19V/1,89A
Input Frequency: 50/60Hz
Output Connection: Barrel adaptors (5,5 x 2,5 / 5,5 x 2,1 / 4,75 x 1,7 / 3,5 x 1,35)
Product Features:
Designed to keep you connected:
Keep your critical connected equipment (Internet gateway, IP camera, Smart-home controller, personal assistant, etc..) up and running in the event of a power outage. Maintain your ability to remote control your connected devices with no loss of power (IP cameras). Overcurrent protection through internal circuit.
Adaptable:
Select from 4 output voltages that are compatible with any critical application power needs and 4 output connector types to adapt to your equipment requirements.
Simple:
Easy to read LED indicator providing information about selected output voltage and remaining battery capacity. Cold start functions available to use 3S Mini as a battery bank.
Compact and silent:
3S Mini replaces the power supply provided with your device, to insure power protection without additional equipment s. The super compact, silent and stylish design ensures the 3S Mini blends well into your home or business environment.
Technical Specifications:
Electrical specifications:
90-264V, 50-60 Hz
Power rating:
36 W
Output voltage / current:
9V/3A - 12V/3A - 15V/2,4A - 19V/1,89A
User interface:
Voltage selection & battery level LED indicators
Installation:
Require earth connection
Environment:
For indoor, dry environment only
Dimensions (W x D x H) cm:
9.5 x 13.6 x 3
Weight (g):
400
Warranty:
2 years
Technical standards:
CE Mark, Safety: IEC 62477-1: 2012-07, EN 62477-1: 2012-10, CB report
CEM: IEC 62040-2: 2016-11, EN 62040-2: 2018-09
Environment: IEC 62040-5-3
What's in the box
1x UPS
1x Input Cable
4x Barrel DC adaptors
1x Quickstart Guide
