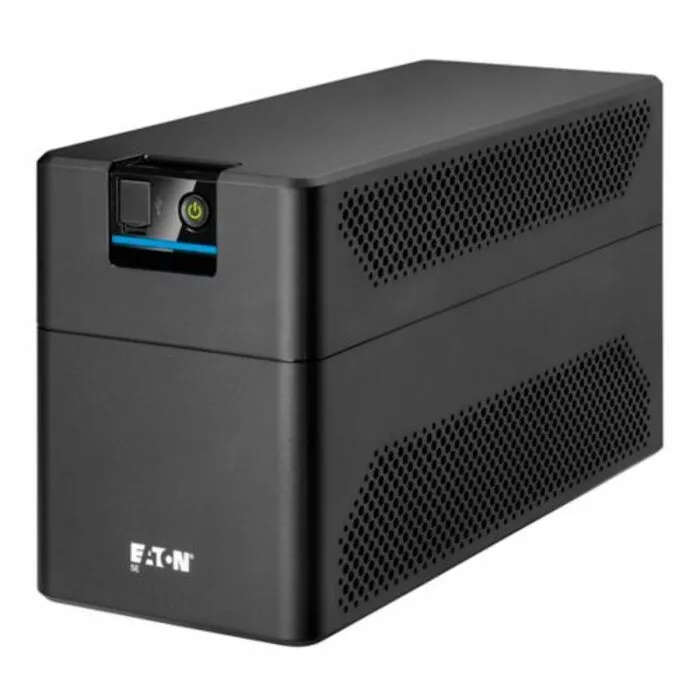

Eaton 5E Gen2 1200VA 660W Line-Interactive UPS
The Eaton 5E Gen2 1200VA 660W Line-Interactive UPS (Uninterruptible Power Supply) model 5E1200UI is a reliable power protection device commonly used in corporate environments and various professional settings. Here are some key features and information about this UPS:
Capacity: The UPS has a capacity of 1200VA (Volt-Amps) or 660W (Watts), which means it can provide backup power to connected devices with a total load of up to 660 watts.
Line-Interactive Technology: It utilizes line-interactive technology, which helps stabilize the output voltage and provides protection against power surges and voltage fluctuations. This technology is effective at maintaining a stable power supply to connected equipment.
Battery Backup: The UPS is equipped with a battery that can supply power to connected devices during a power outage or voltage drop. This ensures uninterrupted operation and data protection for critical equipment.
Multiple Outlets: It typically includes multiple power outlets, allowing you to connect various devices such as computers, servers, networking equipment, and more. These outlets are often designed to provide surge protection as well.
Monitoring and Management: Some UPS models, including the Eaton 5E Gen2 series, come with monitoring and management features. These may include USB or serial ports for connecting to a computer and using software to monitor the UPS status, configure settings, and receive alerts.
Compact Design: These UPS units often have a compact and space-saving design, making them suitable for use in office environments or server rooms where space is limited.
Voltage Regulation: Line-interactive UPS devices like this one can regulate the output voltage to compensate for fluctuations in input voltage, ensuring that connected equipment receives a stable power supply.
In a professional and formal tone, the Eaton 5E Gen2 1200VA 660W Line-Interactive UPS (5E1200UI) is a valuable asset in maintaining the continuity of power supply in corporate settings. Its capacity, line-interactive technology, and battery backup features help protect critical equipment from power interruptions and voltage irregularities, ensuring the smooth operation of essential devices.
Specifications:
- SECONDARY FREQUENCY - MAX: 60 Hz
- WATTAGE: 660 W
- FORM FACTOR: Tower
- INCLUDES NETWORK CARD: No
- INPUT CONNECTION: C14
- INPUT VOLTAGE - MIN: 140 V
- OUTPUT VOLTAGE - MAX: 257 V
- SECONDARY FREQUENCY - MIN: 50 Hz
- SOFTWARE COMPATIBILITY: Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
- BATTERY TYPE: Sealed, lead-acid
- EFFICIENCY: 95
- CONSTRUCTION TYPE: Free standing model
- OUTPUT VOLTAGE - MIN: 195 V
- COLOR: Black
- EXTENDED BATTERY CAPABILITY: No
- OUTPUT VOLTAGE RANGE: 195-257 V
- TOPOLOGY: Line-interactive
- SURGE PROTECTION: Yes
- INPUT NOMINAL VOLTAGE: 230V default (220/230/240V)
- INPUT FREQUENCY RANGE: 45-63 Hz
- INTERNAL BYPASS: No
- INPUT VOLTAGE - MAX: 300 V
- VOLTAGE TYPE: AC
- PHASE (OUTPUT): 1
- BATTERY MANAGEMENT: Automatic battery test, deep-discharge protection, cold-start capable
- AUTO SHUTDOWN FUNCTION: Yes
- NUMBER OF OUTPUTS C13: 6
- OPERATING TEMPERATURE - MIN: 0 °C
- VA RATING: 1200 VA
- POTENTIAL FREE SWITCH CONTACT: No
- RECEPTACLE: (6) C13
- PHASE (INPUT): 1
- FEED TYPE: 1
- RUNTIME GRAPH: View runtime graph
- USER INTERFACEL: LEDs
- BATTERY QUANTITY: 2
- OPERATING TEMPERATURE - MAX: 40 °C
- VOLTAGE: 230V
- HOT SWAP POWER: No
- TEMPERATURE RANGE: 0° to 40°C (32° to 104°F)
- ETHERNET INTERFACE: No
COMMUNICATION
- USB port (HID compliant)
- RELATIVE HUMIDITY: 0-90% non-condensing
- OUTPUT APPARENT POWER: 1200 VA
- RACK MOUNTING KIT: No
- OUTPUT FREQUENCY: 50/60 Hz
- TYPE OF INTERFACE: USB
- PRIMARY FREQUENCY - MIN: 45 Hz
- BATTERY RATING: 12 V / 7 Ah
- TYPE: UPS
- OUTPUT NOMINAL VOLTAGE: 230V
- EXPANSION SLOTS: No
- INPUT VOLTAGE RANGE: 140-300 V
- NOMINAL FREQUENCY: 50/60 Hz
- PRIMARY FREQUENCY - MAX: 63 Hz
