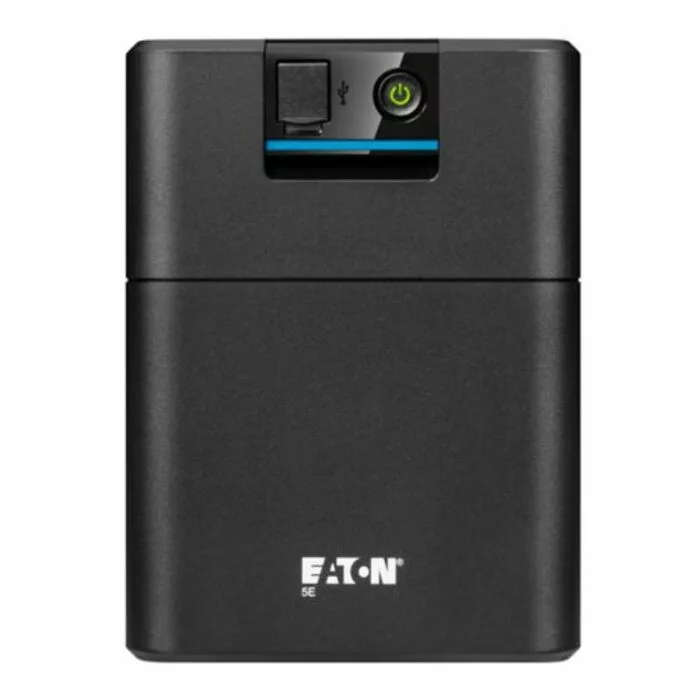

Eaton 5E Gen2 700VA 360W Line-Interactive UPS
The Eaton 5E Gen2 700VA 360W Line-Interactive UPS (Uninterruptible Power Supply) model 5E700UI is a reliable power protection solution designed for various professional and corporate environments. Here are key details about this UPS:
Capacity: The UPS has a capacity of 700VA (Volt-Amps) or 360W (Watts), which means it can provide backup power to connected devices with a total load of up to 360 watts.
Line-Interactive Technology: This UPS uses line-interactive technology to stabilize output voltage and protect against power surges and voltage fluctuations. It actively maintains a steady power supply to connected equipment.
Battery Backup: Equipped with a built-in battery, this UPS can supply power to connected devices during power outages or voltage drops. This feature ensures uninterrupted operation and data protection for critical equipment.
Multiple Outlets: Typically, the UPS provides multiple power outlets, allowing you to connect various devices, including computers, servers, networking equipment, and more. These outlets often offer surge protection as well.
Monitoring and Management: Some UPS models, including the Eaton 5E Gen2 series, include monitoring and management features. These may involve USB or serial ports for connecting to a computer, enabling you to use software to monitor UPS status, configure settings, and receive alerts.
Compact Design: The UPS typically features a compact and space-saving design, making it suitable for use in office environments or server rooms with limited space.
Voltage Regulation: Line-interactive UPS devices like this one can regulate output voltage to compensate for variations in input voltage, ensuring a stable power supply to connected equipment.
In a professional and formal tone, the Eaton 5E Gen2 700VA 360W Line-Interactive UPS (5E700UI) is a valuable tool for maintaining the continuity of power supply in corporate settings. Its capacity, line-interactive technology, and battery backup features help safeguard critical equipment from power disruptions and voltage irregularities, ensuring the uninterrupted operation of essential devices.
Specifications:
- SECONDARY FREQUENCY - MAX: 60 Hz
- WATTAGE: 360 W
- FORM FACTOR: Tower
- INCLUDES NETWORK CARD: No
- INPUT CONNECTION: C14
- INPUT VOLTAGE - MIN: 140 V
- OUTPUT VOLTAGE - MAX: 257 V
- SECONDARY FREQUENCY - MIN: 50 Hz
- SOFTWARE COMPATIBILITY: Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
- BATTERY TYPE: Sealed, lead-acid
- EFFICIENCY: 95
- CONSTRUCTION TYPE: Free standing model
- OUTPUT VOLTAGE - MIN: 195 V
- COLOR: Black
- EXTENDED BATTERY CAPABILITY: No
- OUTPUT VOLTAGE RANGE": 195-257 V
- TOPOLOGY: Line-interactive
- SURGE PROTECTION: Yes
- INPUT NOMINAL VOLTAGE: 230V default (220/230/240V)
- INPUT FREQUENCY RANGE: 45-63 Hz
- INTERNAL BYPASS: No
- INPUT VOLTAGE - MAX: 300 V
- VOLTAGE TYPE: AC
- PHASE (OUTPUT): 1
- BATTERY MANAGEMENT: Automatic battery test, deep-discharge protection, cold-start capable
- AUTO SHUTDOWN FUNCTION: Yes
- NUMBER OF OUTPUTS C13: 4
- OPERATING TEMPERATURE - MIN: 0 °C
- VA RATING: 700 VA
- POTENTIAL FREE SWITCH CONTACT: No
- RECEPTACLE: (4) C13
- PHASE (INPUT): 1
- FEED TYPE: 1
- RUNTIME GRAPH: View runtime graph
- USER INTERFACE: LEDs
- BATTERY QUANTITY: 1
- OPERATING TEMPERATURE - MAX: 40 °C
- VOLTAGE: 230V
- HOT SWAP POWER: No
- TEMPERATURE RANGE
- 0° to 40°C (32° to 104°F)
- ETHERNET INTERFACE: No
- COMMUNICATION: USB port (HID compliant)
- RELATIVE HUMIDITY: 0-90% non-condensing
- OUTPUT APPARENT POWER: 700 VA
- RACK MOUNTING KIT: No
- OUTPUT FREQUENCY: 50/60 Hz
- TYPE OF INTERFACE: USB
- PRIMARY FREQUENCY - MIN: 45 Hz
- BATTERY RATING: 12 V / 7 Ah
- TYPE: UPS
- OUTPUT NOMINAL VOLTAGE: 230V
- EXPANSION SLOTS: No
- INPUT VOLTAGE RANGE: 140-300 V
- NOMINAL FREQUENCY: 50/60 Hz
- PRIMARY FREQUENCY - MAX: 63 Hz
