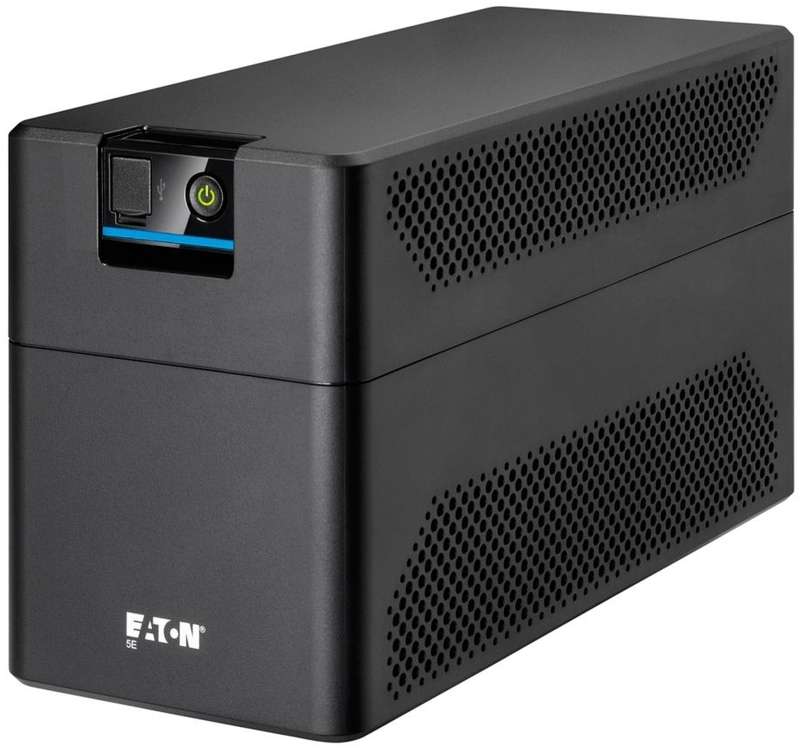

Eaton 5e Gen2 UPS 1200VA 660W USB IEC, C14 Input, 6x C13 Outputs, Tower, Sealed Lead-Acid Battery Type, Line-interactive
Overview:
Eaton 5E Gen2 UPS
The Eaton 5E Gen2 UPS combines proven high performance and quality with affordable pricing to offer cost-effective, reliable protection against power outages and bad power quality. Suitable for home use or for equipment in small business and professional environments, this latest version of our 5E line interactive UPS now also offers national outlets flexibility plus the convenience of permanently recharged batteries (even when off) and the ability to start without mains power (cold start).
CE certification by the external TUV agency guarantees compliance with the latest international safety standards.
Features:
Easy application connection and protection
A perfect fit for any local plug type thanks to national outlet formats (4 or 6 IEC and 2 or 4 for FR, DIN/IT, BS). Eaton's 5E Gen2 UPS offers single-product simplicity in multiple residential and commercial environments.
Greater tolerance of grid fluctuations
All kinds of influences can upset grid voltage at any time. Features double-boost line interactive topology (AVR) for wider input voltage window (under and overvoltage: 140 - 300 V) to save battery power in the event of power outage.
Silent operation for a better customer experience
A key consideration in residential settings to ensure peace of mind as noisy equipment can distract - as well as add to stress levels. Thanks to a fanless design on all models up to 1200 VA, the 5E Gen2 UPS guarantees silent operation.
Specifications:
GENERAL SPECIFICATIONS
PRODUCT NAME Eaton 5E Gen2 UPS
CATALOG NUMBER 5E1200UI
EAN 3553340704277
PRODUCT LENGTH/DEPTH 330 mm
PRODUCT HEIGHT 180 mm
PRODUCT WIDTH 133 mm
PRODUCT WEIGHT 8.13 kg
COMPLIANCES CB
LVD Directive
EMC Directive
RoHS Directive
Packaging Directive
WEEE Directive
Batteries Directive
CERTIFICATIONS IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
UKCA
Cm
Ukr
IEC/EN 62040-3
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY - MAX 60 Hz
WATTAGE 660 W
FORM FACTOR Tower
INCLUDES NETWORK CARD No

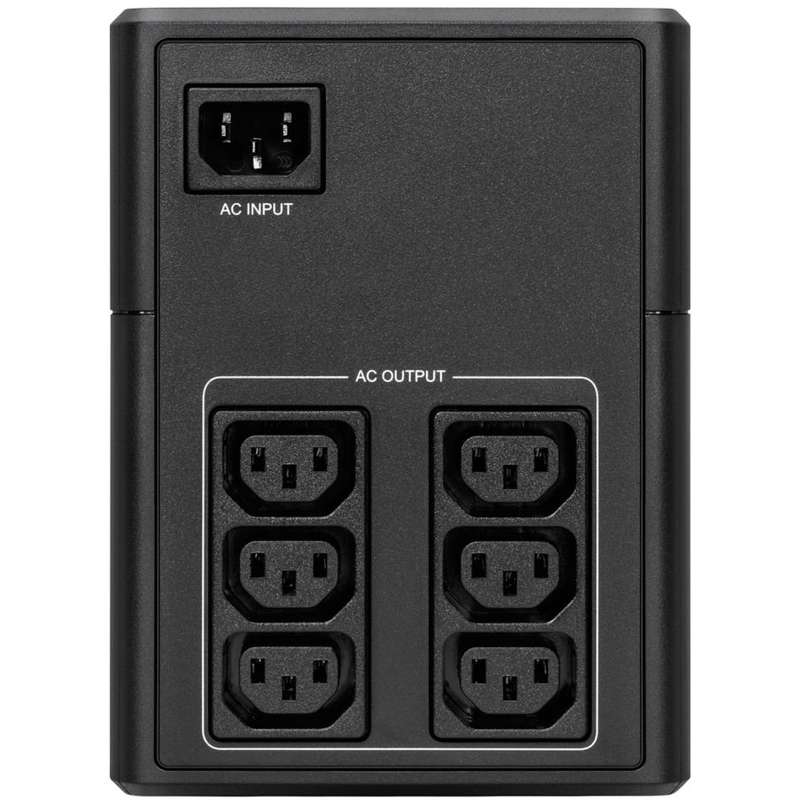

INPUT CONNECTION C14
INPUT VOLTAGE - MIN 140 V
OUTPUT VOLTAGE - MAX 257 V
SECONDARY FREQUENCY - MIN 50 Hz
SOFTWARE COMPATIBILITY Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
BATTERY TYPE Sealed, lead-acid
EFFICIENCY 95
SPECIAL FEATURES Automatic Voltage Regulation (AVR)
Saves space with a compact tower design
HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux)
CONSTRUCTION TYPE Free standing model
OUTPUT VOLTAGE - MIN 195 V
COLOR Black
EXTENDED BATTERY CAPABILITY No
OUTPUT VOLTAGE RANGE 195-257 V
TOPOLOGY Line-interactive
SURGE PROTECTION Yes
INPUT NOMINAL VOLTAGE 230V default (220/230/240V)
INPUT FREQUENCY RANGE 45-63 Hz
INTERNAL BYPASS No
INPUT VOLTAGE - MAX 300 V
VOLTAGE TYPE AC
PHASE (OUTPUT) 1
BATTERY MANAGEMENT Automatic battery test, deep-discharge protection, cold-start capable
AUTO SHUTDOWN FUNCTION Yes
NUMBER OF OUTPUTS C13 6
OPERATING TEMPERATURE - MIN 0 °C
VA RATING 1200 VA
POTENTIAL FREE SWITCH CONTACT No
RECEPTACLE (6) C13
PHASE (INPUT) 1
PACKAGE CONTENTS (2) IEC-IEC output cables
Quick start
Safety instructions
FEED TYPE 1
USER INTERFACE LEDs
BATTERY QUANTITY 2
OPERATING TEMPERATURE - MAX 40 °C
VOLTAGE 230V
HOT SWAP POWER No
TEMPERATURE RANGE 0° to 40°C (32° to 104°F)
ETHERNET INTERFACE No
COMMUNICATION USB port (HID compliant)
RELATIVE HUMIDITY 0-90% non-condensing
OUTPUT APPARENT POWER 1200 VA
RACK MOUNTING KIT No
OUTPUT FREQUENCY 50/60 Hz
TYPE OF INTERFACE USB
PRIMARY FREQUENCY - MIN 45 Hz
BATTERY RATING 12 V / 7 Ah
TYPE UPS
OUTPUT NOMINAL VOLTAGE 230V
EXPANSION SLOTS No
INPUT VOLTAGE RANGE 140-300 V
NOMINAL FREQUENCY 50/60 Hz
PRIMARY FREQUENCY - MAX 63 Hz
