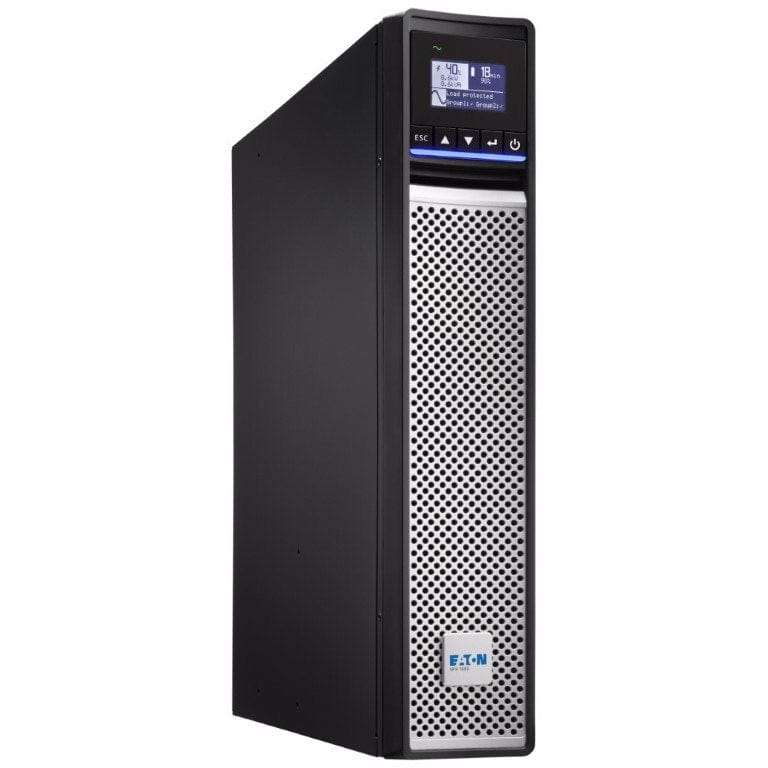

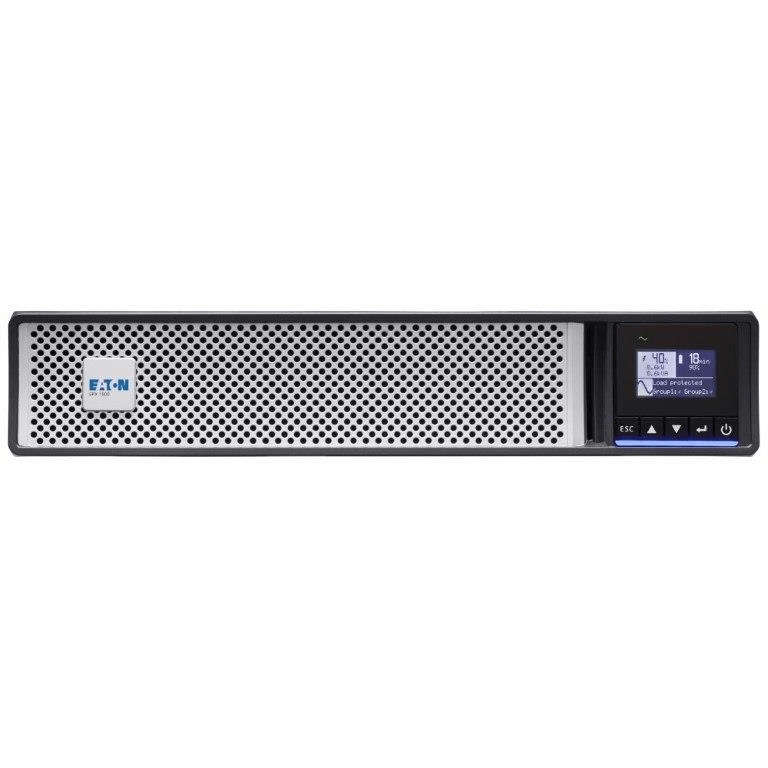

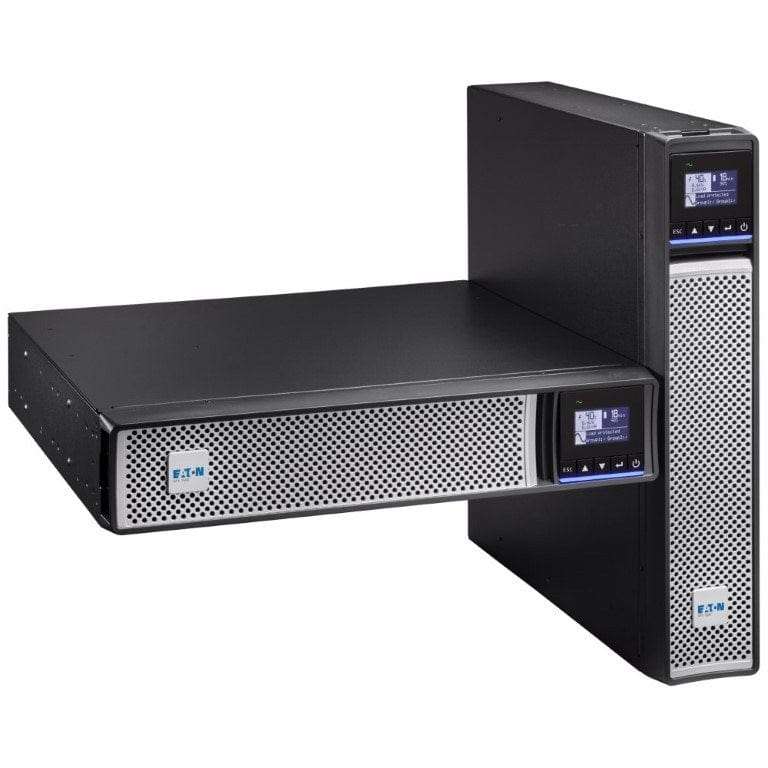

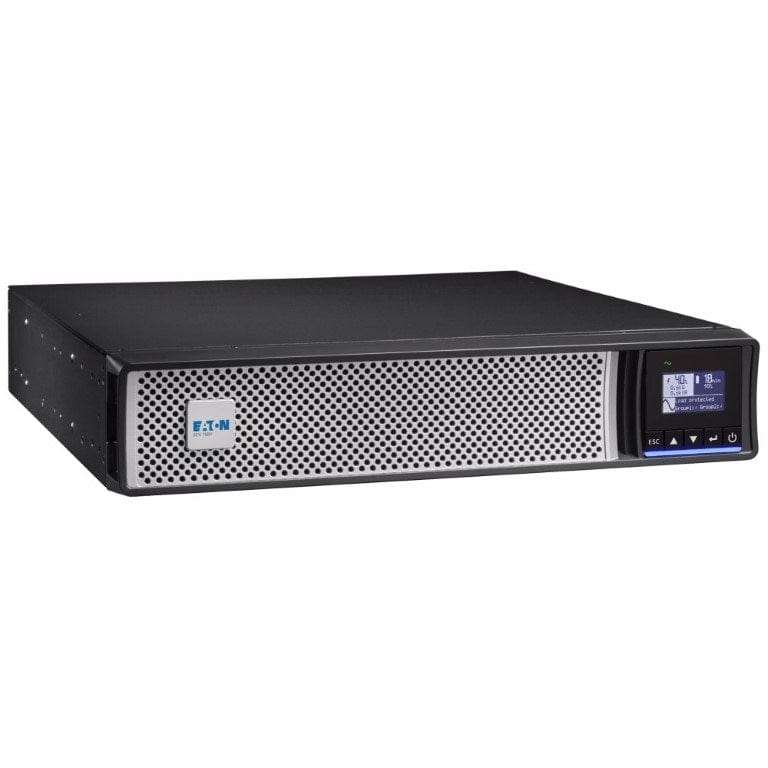

Eaton 5PX 1500i G2 1500kVA 1500W Line-Interactive 2U Rack/Tower UPS 5PX1500IRT2UG2
Technical Specification
Battery
Battery Rating: 12 V / 9 Ah
Battery Type: Lead-acid maintenance-free (replaceable)
Battery Quantity: 4
Extended Battery Capability: Yes
Battery Management: ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Electrical Output
Receptacle: (8) C13
Voltage: 230V
Wattage: 1500 W
Output Power Factor: 1
Output Voltage Range: 230 V (+6%/-10%)
Output Waveform: Sine wave
Output Nominal Voltage: 230V default (200/208/220/230/240V)
Feed Type: 1
Topology: Line-interactive
VA Rating: 1500 VA
Electrical Input
Input Connection: C14
Input Nominal Voltage: 230V default (200/208/220/230/240V)
Nominal Frequency: 50-60 Hz
Input Voltage Range: 160-294 V (adjustable to 150 V-294 V)
Input Frequency Range: 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
Communications
Includes Network Card: No
Communication:
-
USB port (HID compliant)
-
Serial port (RS232)
-
Mini-terminal block for remote On/Off and Remote Power Off
-
Mini-terminal block for output relay
-
Dry contacts (3 outputs, 1 input, optocoupler, DB9)
User Interface: Multilingual graphical LCD display
Potential Free Switch Contact: Yes
Expansion Slots: One slot for optional communication card
Software Compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Type of Interface: Other
General Specifications:
Product Length/Depth: 448 mm
Product Height: 85.5 mm
Product Width: 438 mm
Product Weight: 22.4 kg
Rack Mounting Kit: Yes
Package Contents:
Rack-mounting kit
(2) Supports for tower mounting
Cable locking system
USB cable
Serial cable
(2) IEC-IEC cables
Quickstart guide
Safety instructions
