Eaton 5PX GEN2 1000VA Rack Mount Line Interactive Uninterruptible Power Supply- Output Power Capacity 1000W / 1000VA, Nominal Input and Output Voltage: 230V, 8x IEC C13 Output Connections, Automatic Voltage Regulation (AVR),LCD Display For Real-Time Status And Measurements, Slot For Optional Network Management Card, 2U Rack/tower Single Phase UPS, Retail Box , 1 year Limited Warranty
Eaton 5PX GEN2 1000VA Rack Mount Line Interactive Uninterruptible Power Supply- Output Power Capacity - 1000W / 1000VA, Nominal Input and Output Voltage: 230V, 8x IEC C13 Output Connections, Automatic Voltage Regulation (AVR),LCD Display For Real-Time Status And Measurements, Slot For Optional Network Management Card, 2U Rack/tower Single Phase UPS, Retail Box , 1 year Limited Warranty
Product Overview
The new Eaton 5PX Gen2 UPS provides Enterprise Networks and Edge IT equipment with best-in-class line-interactive power protection maximising IT space and Service Continuity. Eaton 5PX Gen 2 offers powerful tools to remotely monitor, integrate with IT architecture and remotely deploy / maintain large installed base of UPSs.The innovative graphical LCD display makes configuration of the 5PX Gen2 easy and intuitive. The UPS offers an easy start-up configuration wizard to simplify your UPS setup process. Remote management and firmware upgrades are available with the optional Eaton Gigabit network management card. Advanced battery management and hot-swappable battery enables ease of maintenance and flexibility.
Highlights
-Single Phase Line-Interactive Uninterruptible Power Supply

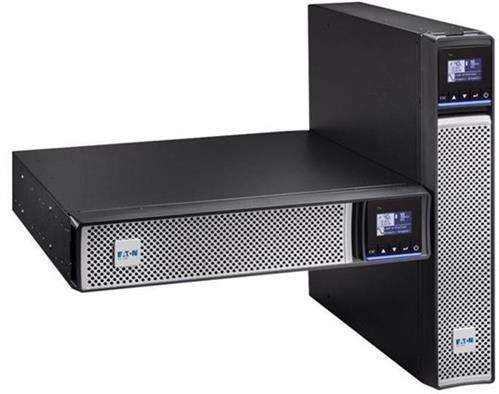

-2U Rackmount or Tower
-Output Power Capacity: 1000Watts/1000VA
-Input Connections 1x IEC C14 (10A)
-Output Connections: 8 x IEC C13 (10A)
-Nominal Input And Output Voltage: 230V
-Topology: Line-Interactive
-Automatic Voltage Regulation (AVR)

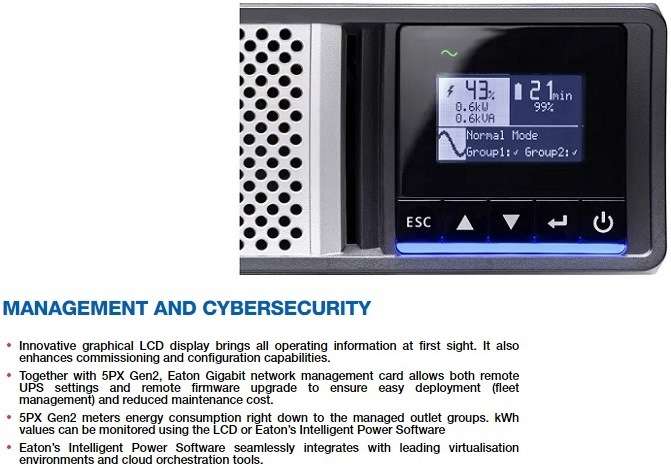

-LCD display for real-time status and measurements

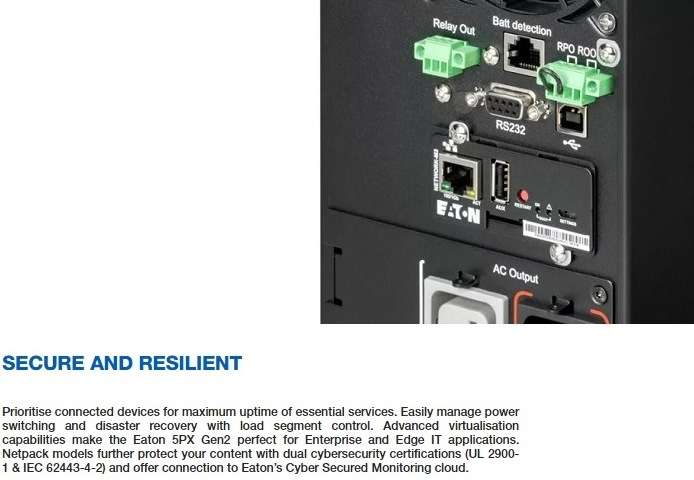

-Slot for optional Network management card
Specifications
Stock Code 5PX1000IRT2UG2
Description Eaton 5PX GEN2 1000VA Rack Mount Line Interactive Uninterruptible Power Supply
Product Type Single Phase Line-Interactive UPS
Form Factor Tower, Rackmount
Unit Height 2U
Volt-Amps (VA) 1000 VA
Output Watts (W) 1000w
Outlet/Socket Type C13 x 8
Secondary Frequency Max 50 Hz
Output Waveform Sine Wave
Input Voltage Min 150 V
Output Voltage Max 240 V
4 lead-acid maintenance-free batteries
12V 7Ah
Secondary Frequency Min 50 Hz
Battery Type Lead-Acid Maintenance-Free (Replaceable)
Dimensions L/Dx H x W 603mmx 85.5mmx438 mm
Weight 31.7 Kg
