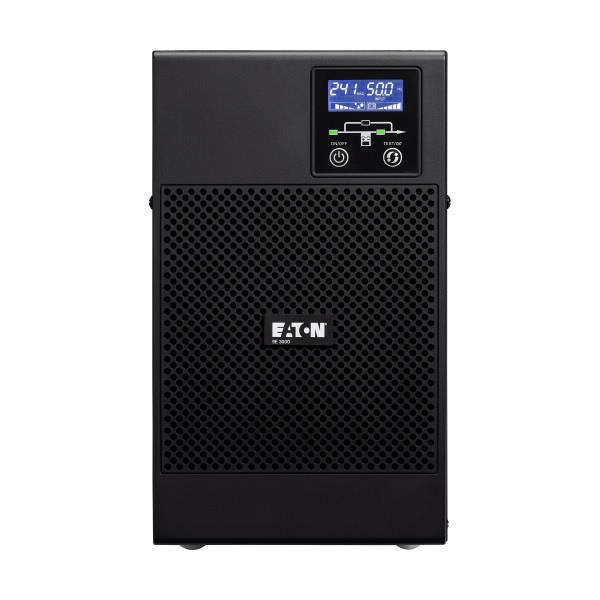

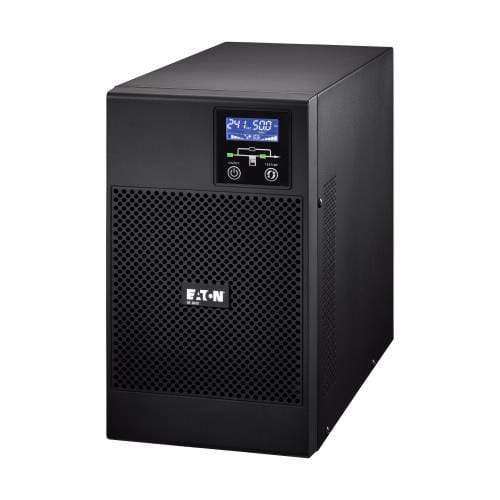

Eaton 9E 3000I On-Line Tower UPS 9E3000I
The Eaton 9E UPS with a capacity of 3000 VA (Volt-Amps) and 2400 W (Watts) is designed to provide reliable power protection for connected devices.
Advanced protection for
- Infrastucture
- Industrial and Medical IT
- Networking
- Storage
- Telecom
Technical Specification
Input
Input Connection: C20
Input Nominal Voltage: 230V default (220/230/240V)
Nominal Frequency: 50/60 Hz
Input Power Factor: >.99
Input Voltage Range: 176-300 V (100 V-300 V with derating)
Input Frequency Range: 40-70 Hz
Output

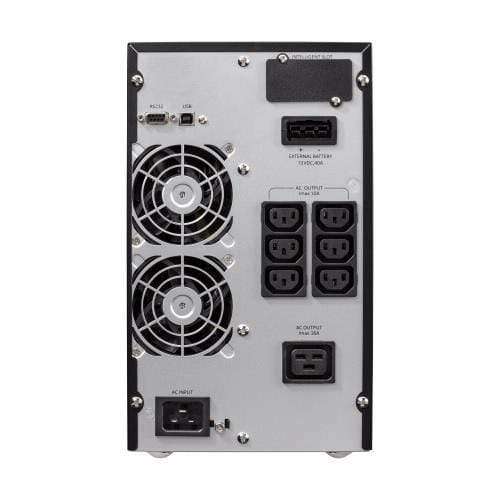

Output connection: (6) C13, (1) C19
Voltage: 230V
Wattage: 2400 W
VA rating: 3000 VA
Output power factor: 0.8
Output voltage range: 220/230/240 V +/- 2%
Output waveform: Sine wave
Output nominal voltage: 230V default (220/230/240V)
Voltage distortion output (linear load) — max: 3
Feed type: 1
Topology: Online/Double-conversion
Battery
Battery Type: Sealed, lead-acid
Battery Replacement: Replaceable batteries
Battery Quantity: 6
Battery Management
Battery Rating: 12 V / 9 Ah
Extended Battery Capability: Yes
Communications
Includes network card: No
Communication
-
USB port (HID compliant)
-
Serial port (RS232)
-
Communication slot
Ethernet Interface: No
User Interface: LCD Display
Potential Free Switch Contact: No
Expansion slots: One slot for optional communication card
Software Compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Type of interface: Other
Additional Specifications
Construction Type: Free standing model
Phase (output): 1
Internal bypass: Yes
Auto shutdown function: Yes
Efficiency: 91
Rack mounting kit: No
Phase (input): 1
Hot swap power: No
General
Dimension (H x W x D): 330 x 190 x 399 mm
Product Weight: 24.2 kg
Product colour: Black
Package Contents
-
UPS
-
USB cable
-
Serial cable
-
Quickstart guide
-
Safety instructions
