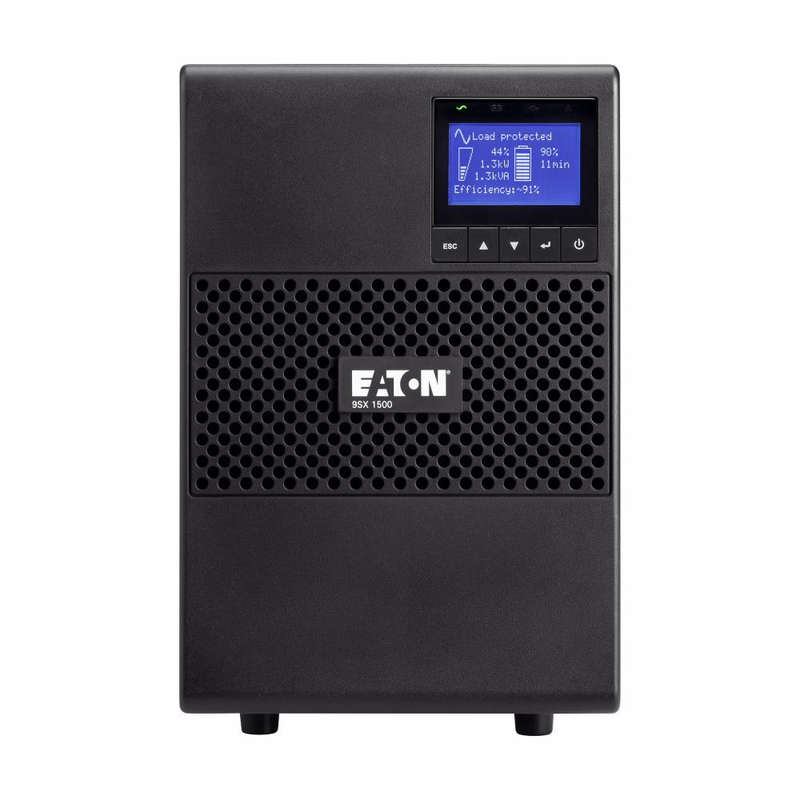

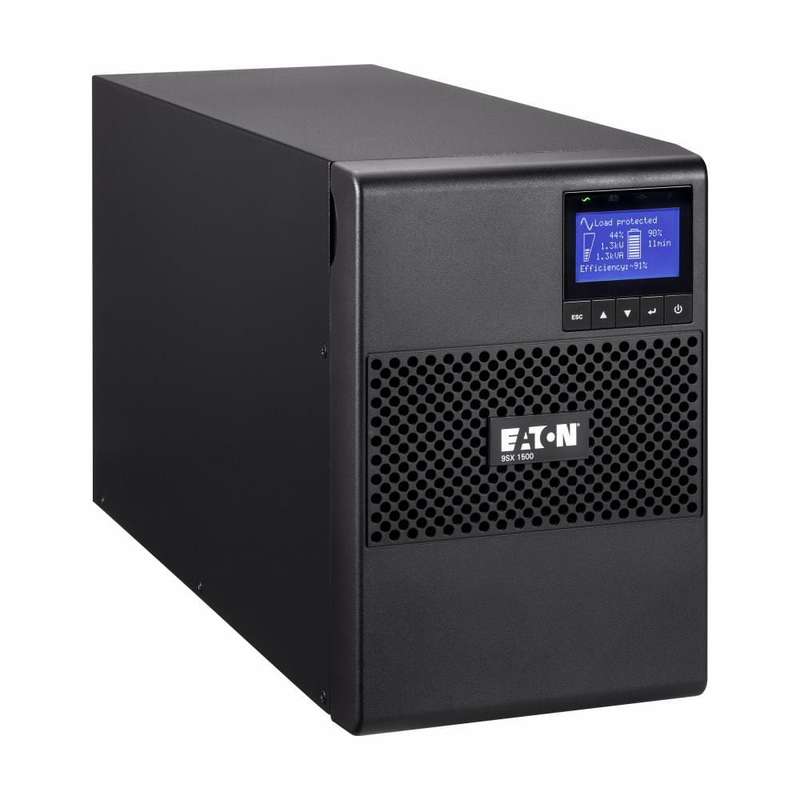

Eaton 9SX 1500i On-Line UPS 1500VA 200-240V Tower 9SX1500I
Features
Performance and Availability
- Double-conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.
- The internal bypass allows service continuity in case of internalfault, a maintenance bypass is also available (as option) for easy replacement of the UPS without powering down critical systems.
- With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.
- Stronger, longer battery life: Eaton ABM battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. 9SX also provides recommended replacement date for batteries.
Manageability
- The new graphical LCD provides clear information on the UPS's status and measurements on a single screen. Enhanced configuration capabilities are also available.
- The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton's Intelligent Power Software.
- Load segment control enables prioritised shutdowns of nonessential equipment to maximise battery runtime for critical devices.
- 9SX offers Serial, USB connectivity, plus an extra slot for an optional communication card. Eaton's Intelligent Power Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.
Flexibility
- One platform, two factors, dozens of choices. Up to 3000 VA of UPS power is packed into only 2U of rack space. The tower option is about the size of a modern, compact PC.
- More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognized by the UPS.
Advanced protection for
- IT
- Networking
- Storage
- Telecom
- Infrastucture
- Industrial
- Medical
Technical Specification
Input
Input Connection: C14
Input Nominal Voltage: 230V default (200/208/220/230/240/250V)
Nominal Frequency: 50/60 Hz
Input Power Factor: >.99
Input Voltage Range: 190-276 Vac without derating (up to 120-276 Vac with derating)
Input Frequency Range: 40-70 Hz
Output
Output connection: (6) C13
Voltage: 230V
Wattage: 1350 W
VA rating: 1500 VA
Output power factor: 0.9
Output voltage range: 200/208/220/230/240 V +/- 2%
Output waveform: Sine wave
Output nominal voltage: 230V default (200/208/220/230/240V)
Voltage distortion output (linear load) — max: 3
Feed type: 1
Topology: Online/Double-conversion
Battery
Battery Type: Sealed, lead-acid
Battery Replacement: Hot-swappable internal batteries and extended battery modules (EBMs)
Battery Quantity: 4
Battery Management
-
ABM & Temperature compensated charging method (user selectable)
-
Automatic battery test
-
Deep discharge protection
-
Automatic recognition of external battery units
Battery Rating: 12 V / 9 Ah
Extended Battery Capability: Yes
Communications
Includes network card: No
Communication
-
USB port (HID compliant)
-
Serial port (RS232)
-
Mini-terminal block for remote power off
-
Mini-terminal block for output relay
-
Dry contacts (2 outputs, 1 input, optocoupler, DB9)
Ethernet Interface: No
User Interface: Multilingual graphical LCD display
Potential Free Switch Contact: Yes
Expansion slots: One slot for optional communication card
Software Compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Type of interface: Other
Additional Specifications
Construction Type: Free standing model
Phase (output): 1
Internal bypass: Yes
Auto shutdown function: Yes
Efficiency: 91.8
Rack mounting kit: No
Phase (input): 1
Hot swap power: No
General
Dimension (H x W x D): 252 x 160 x 437 mm
Product Weight: 18.5 kg
Product colour: Black
