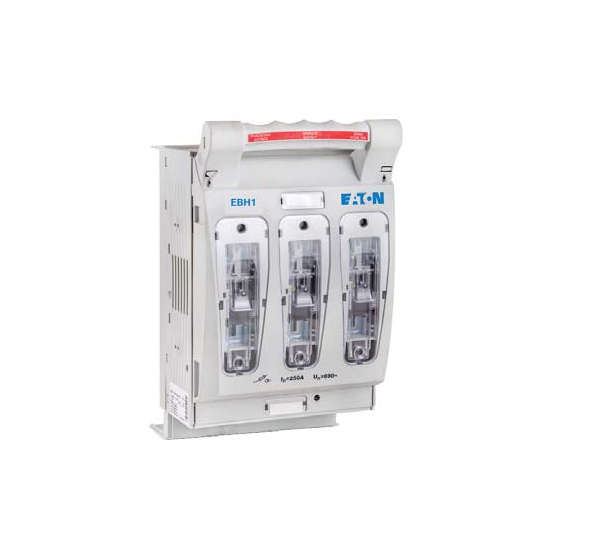

Eaton's Bussmann® series NH horizontal fuse switch disconnectors are specifically designed to be used with NH fuse links. All energised metal parts are fully protected against accidental contact. These are manually operated switches and the making and breaking is dependent on the speed of the operation. The EBV range is provided complete with the clamps (i.e. screws/V-terminals/2V-terminals) and cable for shrouds for cable termination.
Standard features
• Touch for IP 30 from the front
• Top/bottom cable termination possibility
• Test holes provided on the cover to measure the voltage across the link
• Various options for cable terminations
• Wide range of accessories
Standard/Approvals:
• IEC 60947-1 and 3
• EN 60947-1 and 3
Compatible fuse links:
• NH 400, 500 and 690 V NH gG and aM fuse links
Technical data
• Voltage: 400, 500 and 690 V a.c.
• Current: 160 to 1600 A
• Utilisation category:
• AC21B Size 4
• AC22B Sizes 00 (V 120), 1-S, 3, 4
• AC23B Sizes 00 to 2
• DC21B Sizes 00, 2 and 3
• DC21B Sizes 00, 1 and 2
Functionality
• Designed for installation onto mounting plates, 60 mm or 100 mm busbar systems
• Making and breaking operation should be done with determined movement
• Parallel moving, double contact system
• Suitable for top or bottom cable terminal connection
Operating conditions
• Suitable for installation in environments free of any dust, explosive or aggressive gases
• Altitude up to 2000 metre above sea level
• Can be used in outdoor environments if they are installed in IP34 cabinets
• Relative air humidity should not be higher than 50% temperature of +40oC
• Ambient temperature from -25oC to +55 degrees C
Mounting options
• On mounting plates
• EBH00 O, EBH1 O, EBH2 O, EBH3 O
• On to busbar systems
• 60 mm busbar systems: EBH00 1, EBH1 1, EBH2 1 installation on to busbar system with hooked clamps
• 100 mm busbar systems: EBH2 2, EBH1 2 installation on to busbar system with hooked clamps
Download full technical specifications
