Eazylift garage door remote Easylift

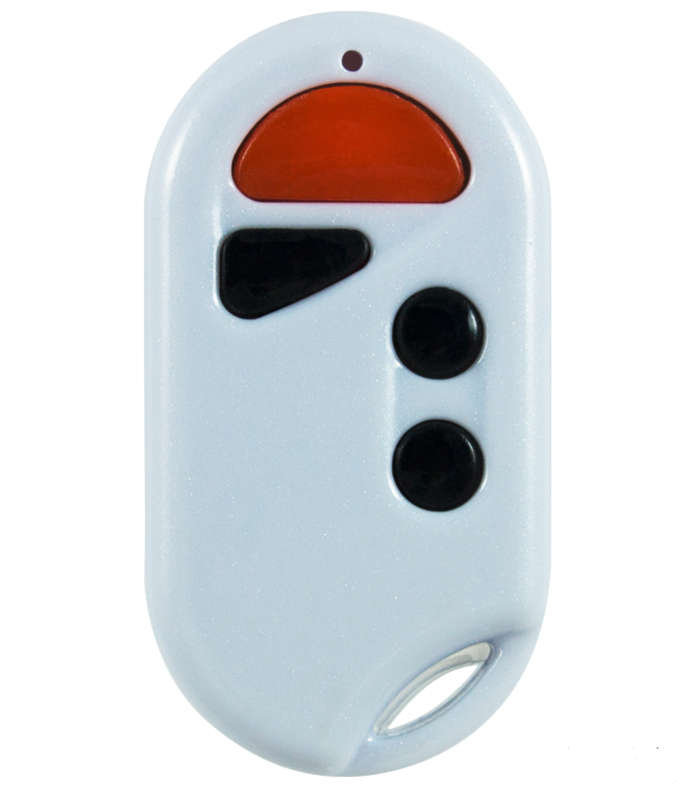

Easy lift garage remote or also know as Easylift  remote is used on overhead / sectional garage doors and roll-up garage doors. The Eazylift remote is recognized by its white housing with semi circle orange button.

Eazylift garage door remote used on Mark 2 and Easylift Mark 1 garage remote. Easy lift garage door remote are also know as Easylift garage door motor remote. This remote is used on garage doors and also roll up garage door motors.  This remote uses a GP23a battery which is found by removing the three star screws on the back.

Eazy Lift remotes use code-hopping technology. This means that every remote press sends out a different code. This eliminates the danger of your code being cloned by a code grabber. Once the code has been used once on the motor it is never valid again.

Programming Instructions

Adding remote to Eazy Lift Tilt and Sectional Motors

1. Press and hold K4 button on the motor until the display clears.
2. Press the desired button on the Eazy Lift remote control.
3. Press the same button again.
4. Display on motor will show [] and remote setting is saved.
5. If memory is full then all remotes can be cleared by pressing and holding K4 until 2 squares appear on the display.

Adding remote to Eazy Lift Roll-Up Motors

1. Press the LEARN button on the back of the motor.
2. The red LED on the motor will illuminate.
3. Press the desired button on the Eazy Lift remote control.
4. The red LED will turn off.
5. Press the same button again.
6. The red LED will flash several times indicating successful programming.
