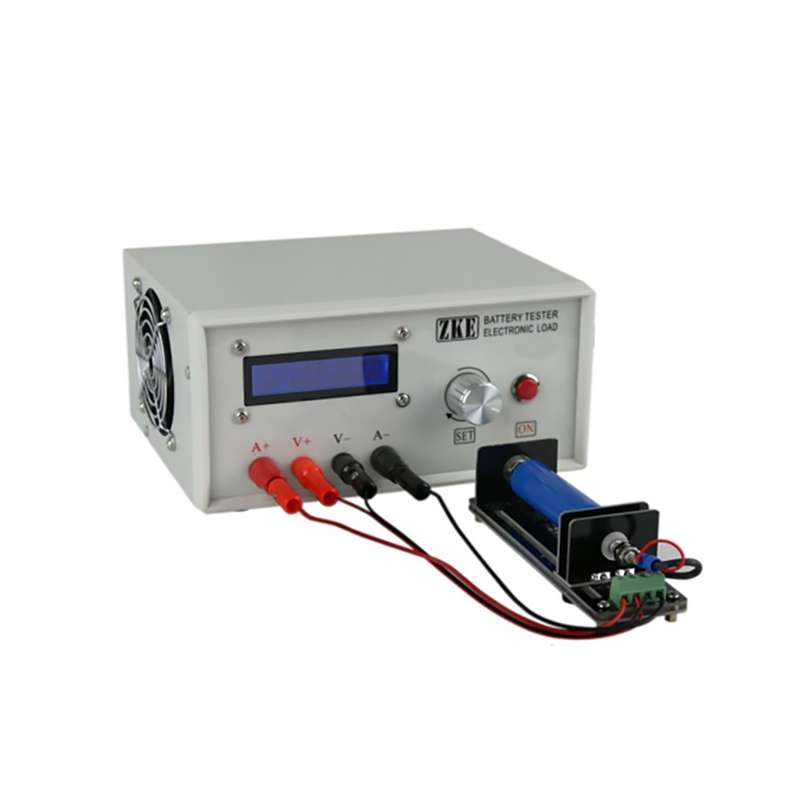

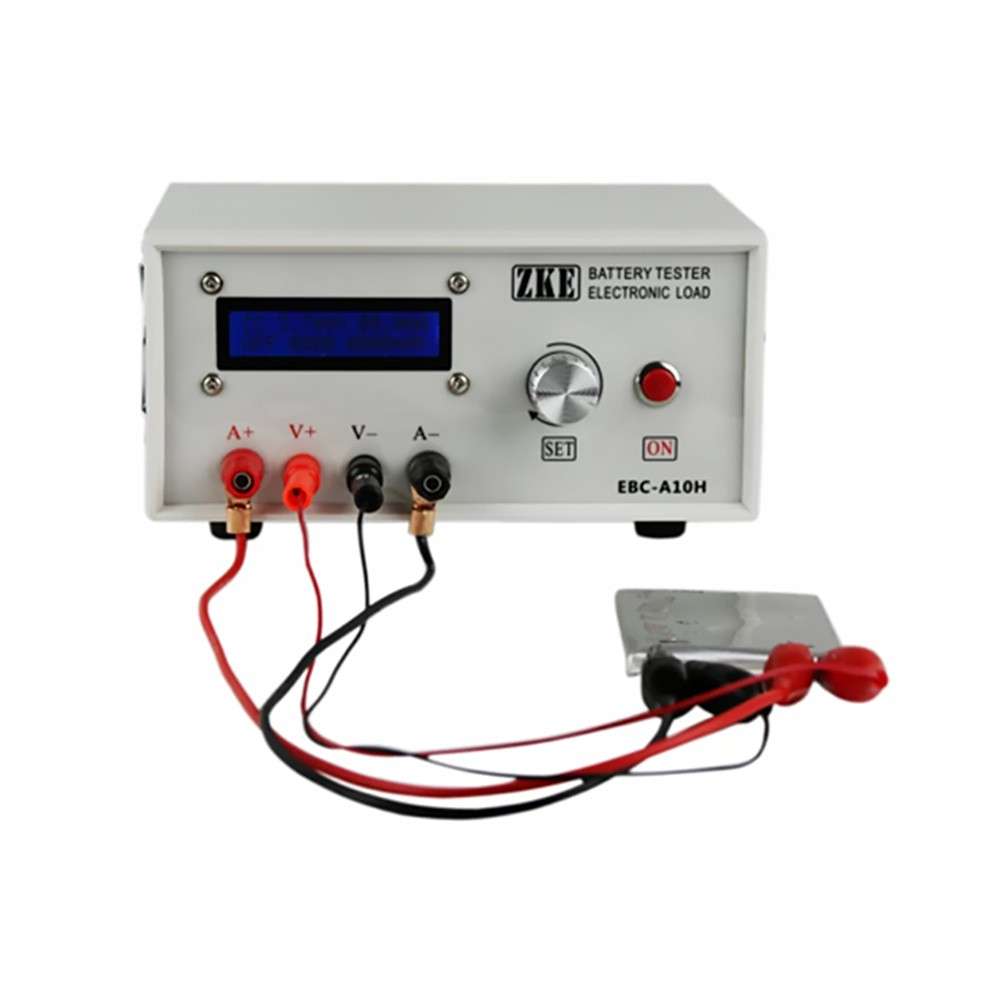

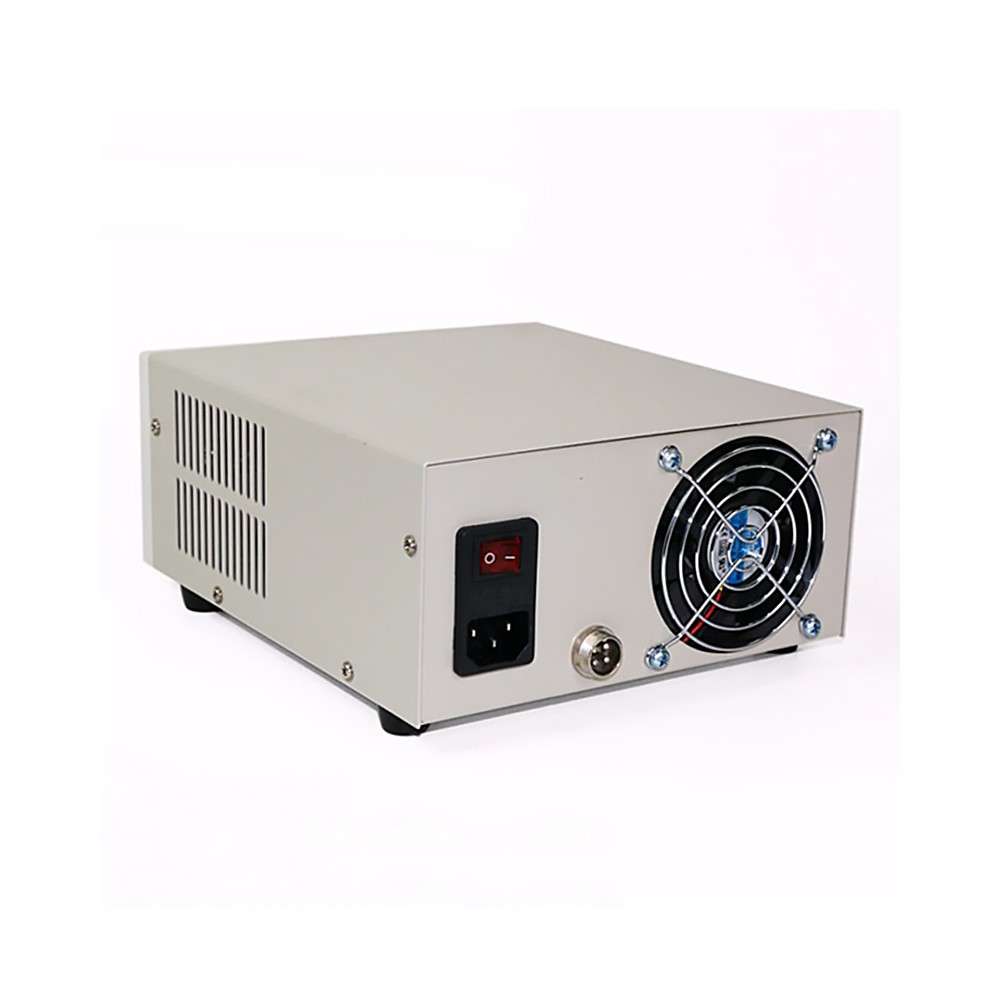

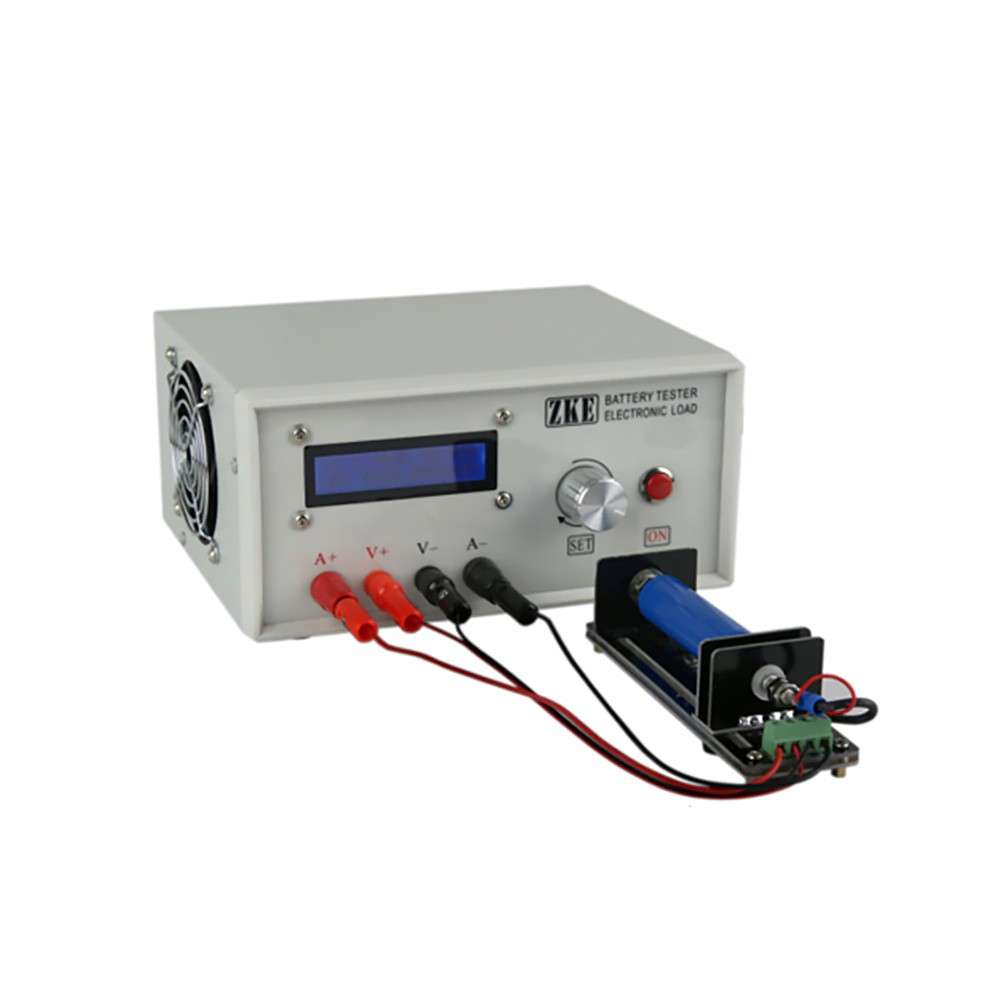

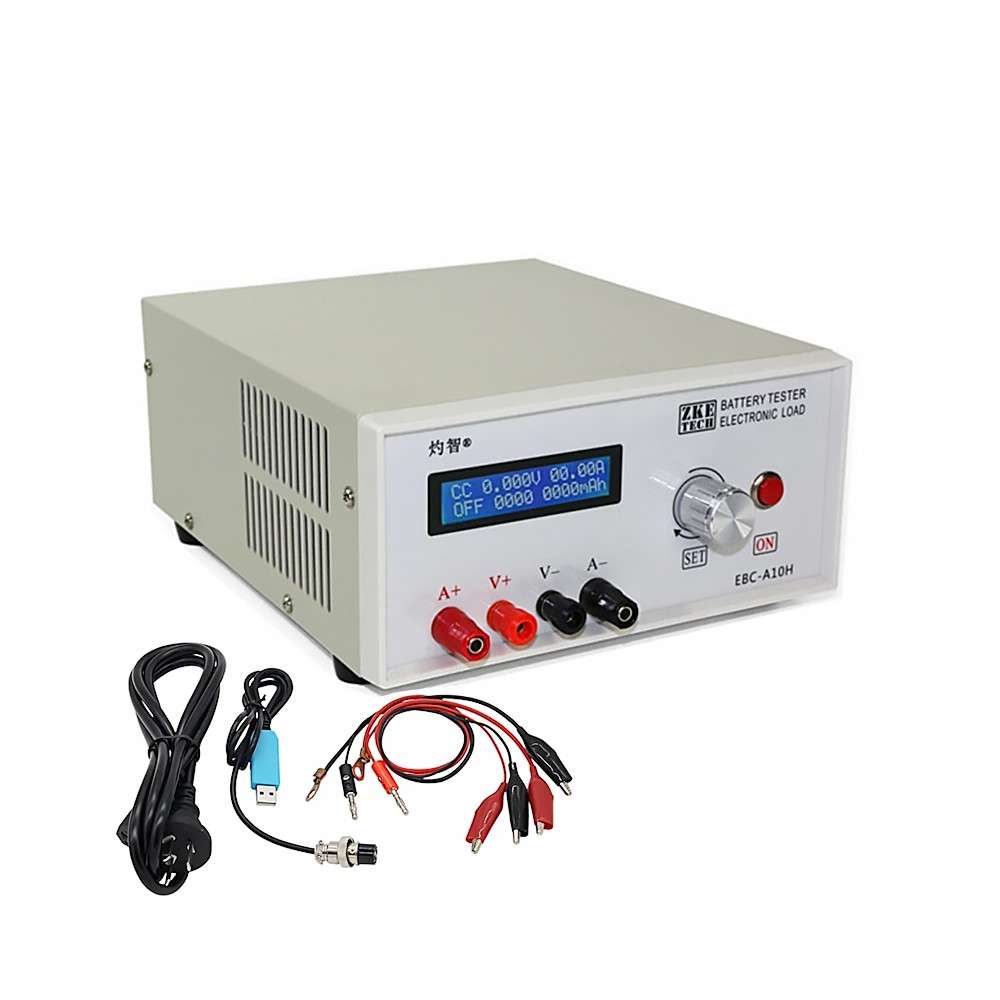

EBC-A10H Multifunction Electronic Load Battery Capacity Tester - DC 19-24V / 4A or Above

Features

- The tester is designed for charging and discharging a wide range of batteries/battery banks.
- Tests batteries like NiMH, NiCd, LiPo, LiFe and Pb and supports capacity tests.
- This tester supports charging and discharging of portable power banks, as well as testing their capacities.
- This tester supports performance and aging tests of various kinds of DC power supplies.

Specifications

- Power Supply: DC 19-24V, 4A or Above
- Voltage Setting Range: 0-30.00V, stepper 0.01V (During charging, the maximum voltage is limited to power voltage -2V)
- Current Setting Range:  for charge, 0.05-5.00A, stepper 0.01A (current adjusted automatically when power exceeding limits) for discharge, 0.05-10.00A, stepper 0.01A (maximum current should be power current-0.5A)
- Charging mode: Standard Charging: Support NiMH, NiCd, LiPo, LiFe and Pb batteries CHG-CV: Current and voltage can be set at a constant voltage (only for batteries) during discharging
- Discharging mode: DSC-CC: Discharging batteries at a constant current, support testing battery capacity or current of power supplies DSC-CP : Discharging batteries at a constant  power, for constant power equipment-like use or testing power
- Automatic Charging/Discharging: The tester supports "charging-discharging-charging" circles for capacity tests.
- Voltage accuracy: Between 0-4.5V, 0.003V, ±0.5%, between 4.5-30V, 0.01V, ±0.5%
- Current Accuracy: 0.05-10.00A, 0.005A, ±0.5%. 9) Capacity detection: < 10Ah,0.001AH; 10-100Ah,0.01Ah; > 100Ah,0.1Ah
- Four Lines: Voltage and Current channels separated for high test accuracy
- LCD Display: Voltage, Current, Time, Capacity, and Etc.

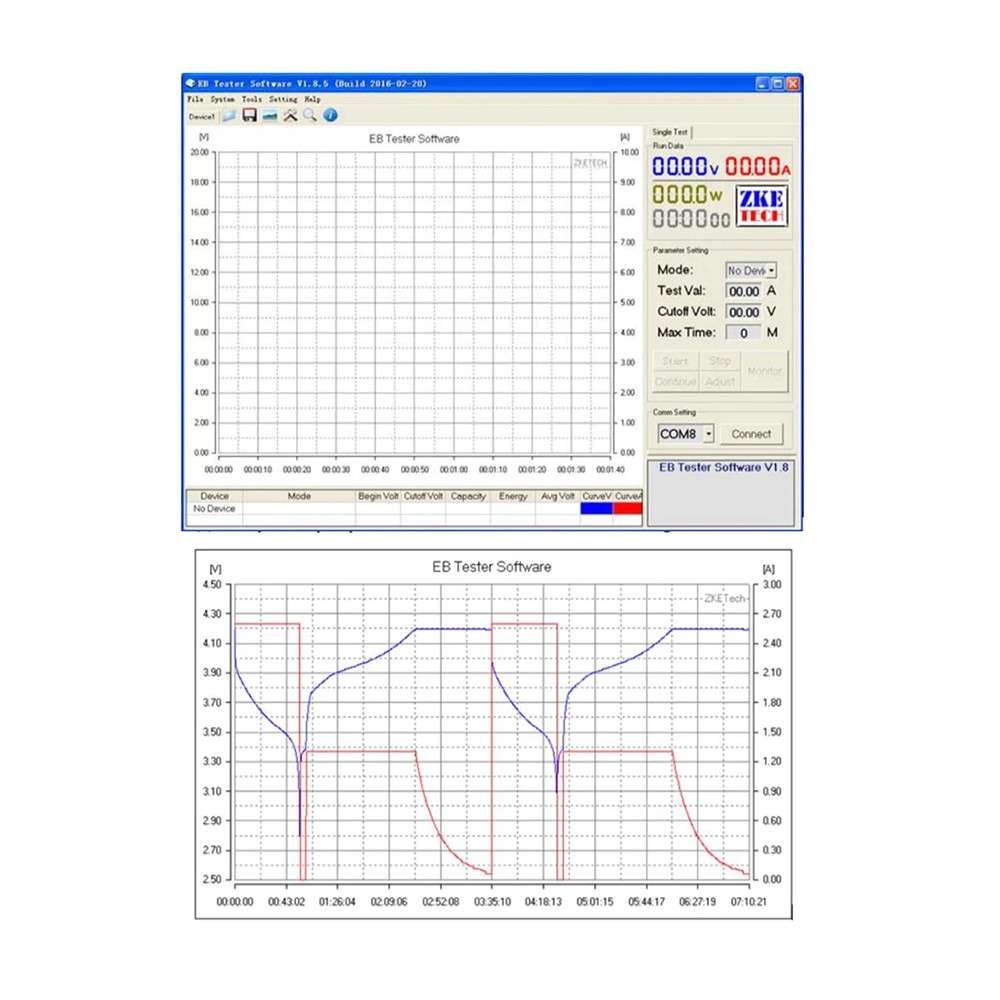

- PC connection: The tester can connect to a computer through a designated USB-TTL cable for more functions, like graphs, calibration, firmware upgrade, and test circulation.
