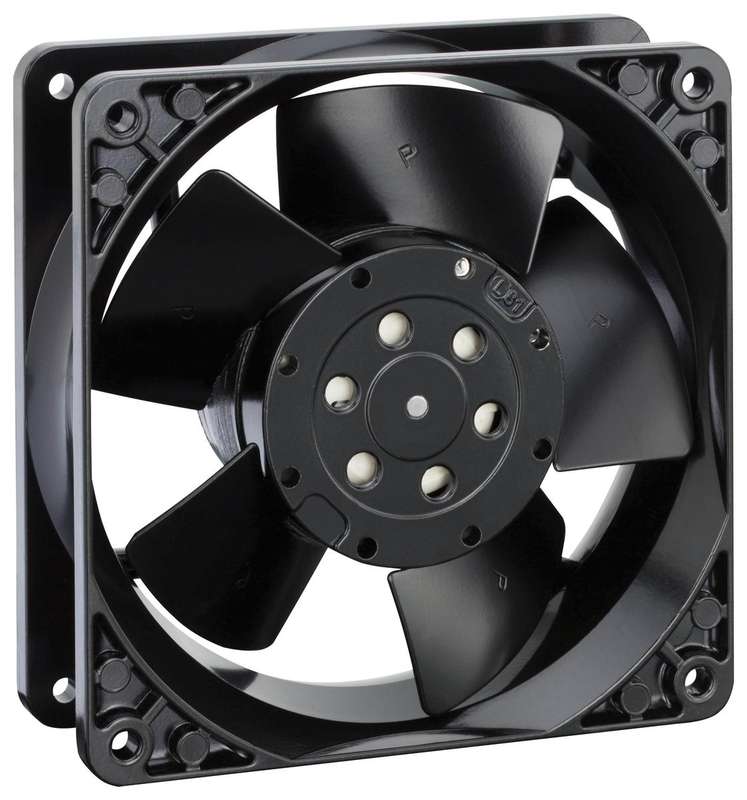

Ebm-Papst (4550N) AC Axial Fan, 230V, Square, 119 mm, 38 mm

Product Information:Nominal Rated Voltage AC: 230VSupply Voltage V AC: 230VVoltage Type: ACFan Frame Type: SquareSupply Voltage: 230VACFan Frame Size: 119mmExternal Depth: 38mmBearing Type: Sleeve BearingNoise Rating: 44dBAAir Flow - CFM: 85.2CFMFlow Rate - Imperial: 85.2CFMFlow Rate - Metric: 145m³/hRated Speed: 2550rpmPower Connection Type: 2 Lead WiresCurrent Rating: -IP Rating: IP20Air Flow - m3/min: 2.417m³/minProduct Range: 4000NPower Rating: 16.5WProduct Overview:The 4000N series AC Axial Fan is used when DC voltage is not available. The fanblades are directly attached to the external rotor. This construction offerscombining high performance with profitability. The AC axial fan is suitable forhigh air performance with moderate pressure build-up. The flow of air throughthe fan blades is parallel to the rotation axis. They are extremely flat andspace-saving integrated motor. The AC fans with sleeve bearings are powered byClass E insulated motors. Fans with ball bearings are equipped with Class B, Eor F insulated motors. Fans driven by capacitor external motors provideparticularly high operating efficiency.Overload protectionThermally protected50 to 60Hz Operating frequencyDie-cast aluminium housing and painted sheet steel impellerClockwise direction of rotationConnection via 2 flat plugs 2.8 x 0.5mm grounding lug for M4Speed signalMoisture protectionSalt spray protectionApplications:Enclosures, Heating and Ventilation, Industrial Drives, Laminar Flow , CleanRoom, Lighting, Power Supplies, RAC, Telecom
