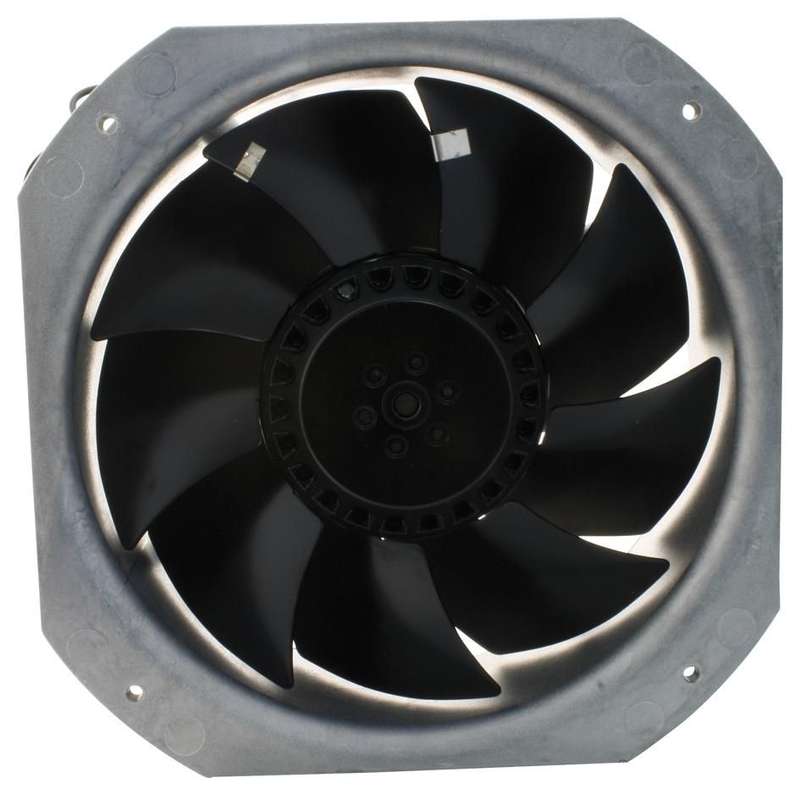

Ebm-Papst (W2E200-HH86-01) AC Axial Fan, 115V, Square, 225 mm, 80 mm

Product Information:Nominal Rated Voltage AC: 115VSupply Voltage V AC: 115VVoltage Type: ACFan Frame Type: SquareSupply Voltage: 115VACFan Frame Size: 225mmExternal Depth: 80mmFlow Rate - Imperial: 607CFMBearing Type: Ball BearingFlow Rate - Metric: 17m³/minAir Flow - CFM: 607CFMNoise Rating: 61dBAPower Connection Type: TerminalsRated Speed: 2800rpmCurrent Rating: -IP Rating: IP44Power Rating: 80WAir Flow - m3/min: 17m³/minProduct Range: W2E200Product Overview:The W2E200-HH86-01 is a 115VAC Axial Fan with a wall ring, ball bearing,terminal power connection and 1-phase 2-pole motor with operating capacitor.Die-cast aluminium housing, impeller of sheet steel, directly welded onto rotor.External rotor shaded pole motor, mounting from either face using two 4.5mmholes, electrical connections via 2 flat pin terminals of 2.8 x 0.5mm.Counter-clockwise direction of rotation seen on rotor, air exhaust over strutsair flow direction.25502800RPM Speed rating6480W Rated power6065°C Maximum permissible ambient motor temperatureApplicationsHVAC
